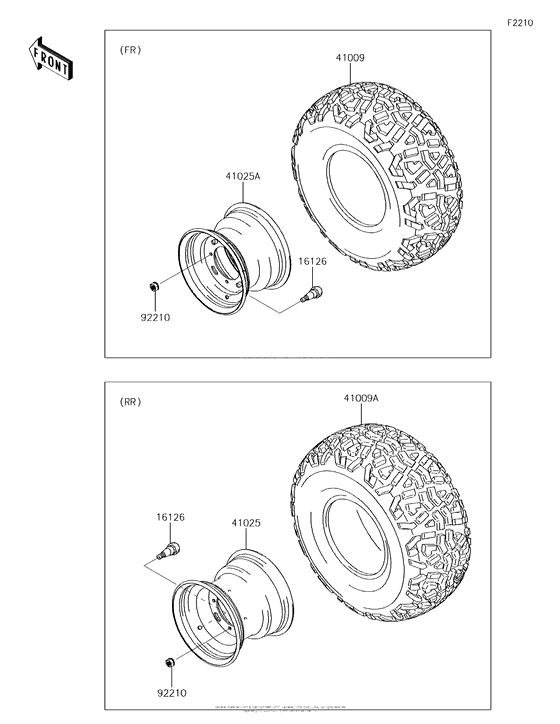

Wheels/tires Diagram Kawasaki KAF400 Mule SX 4X4 SE
- Model code
- KAF400NHS
- Engine Capacity
- 400
- Year
- 2017
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule SX 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41009
|
41009
41009-0765 TIRE,FR,24X9.00-10 4P |
41009-0765 |
from US $187.15 |
||
|
41009A
|
41009A
41009-0766 TIRE,RR,24X11.00-10 4 |
41009-0766 |
from US $223.06 |
||
|
41025
|
41025
41025-0039-397 RIM,RR,10X8.5,F.S.BLA |
41025-0039-397 |
US $136.29 |
||
|
41025A
|
41025A
41025-0040-397 RIM,FR,10X7.0 AT,F.S. |
41025-0040-397 |
US $136.29 |
||
|
92210
|
92210
92210-1204 NUT,LOCK,10MM |
92210-1204 |
from US $5.59 |
