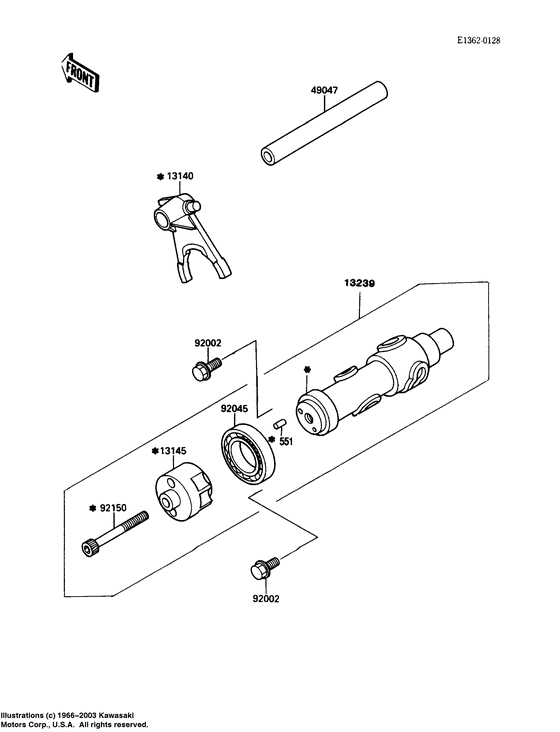

Gear change drum/shift fork (S; -003435) Diagram Kawasaki KAF450 Mule 1000
- Model code
- KAF450-B1
- Engine Capacity
- 454
- Year
- 1990
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
551
|
551
551A0408 PIN,DOWEL,4X8Pin-dowel,4x8; |
551A0408 |
from US $1.17 |
||
|
13140
|
13140
13140-1062 FORK-SHIFT,OUTPUTFork-shift,output; |
13140-1062 |
US $79.89 |
||
|
13145
|
13145
13145-1067 CAM-CHANGE DRUM |
13145-1067 |
US $45.83 |
||
| replacement | |||||
|
13145
|
13145
13145-1071 CAM-CHANGE DRUM |
13145-1071 |
US $45.83 |
||
|
13239
|
13239
13239-1155
DRUM-ASSY-CHANGE
|
13239-1155 |
— | ||
| replacement | |||||
|
13239
|
13239
13239-5005
DRUM-ASSY-CHANGE
|
13239-5005 |
— | ||
|
49047
|
49047
49047-1056 ROD-SHIFT,L=106.7Rod-shift,l=106.7; |
49047-1056 |
from US $16.32 |
||
|
92002
|
92002
92002-1572 BOLT,6X12Bolt,6x12; |
92002-1572 |
US $2.83 |
||
| replacement | |||||
|
92002
|
92002
92150-1826 BOLT,6X12Bolt,6x12; |
92150-1826 |
from US $2.53 |
||
|
92045
|
92045
92045-036 BEARING,BALL,#6905Bearing-ball,#6905; |
92045-036 |
from US $21.38 |
||
|
92150
|
92150
92150-1098 BoltBolt,change drum; |
92150-1098 |
US $3.74 |
||
