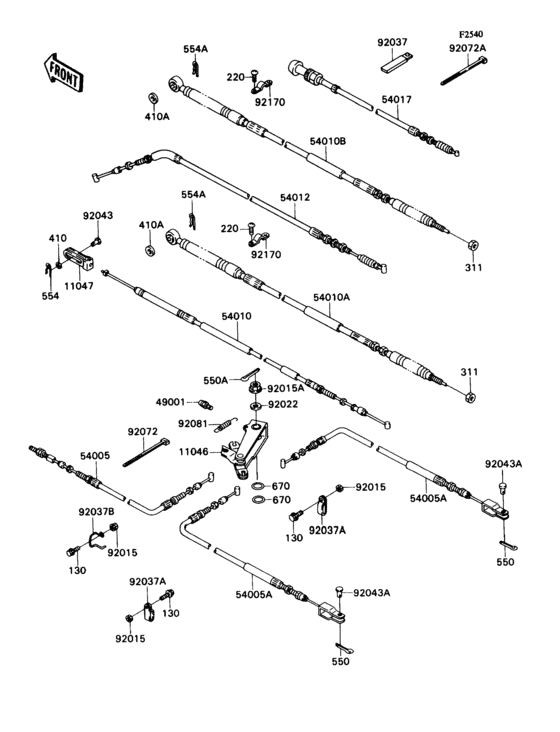

Cable Diagram Kawasaki KAF540 Mule 2010
- Model code
- KAF540-C1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0620 BOLT-FLANGED,6X20 |
130D0620 |
US $22.10 |
||
| replacements | |||||
|
130
|
130
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $1.11 |
||
|
130
|
130
130AA0620 BOLT-FLANGED,6X20 |
130AA0620 |
from US $1.11 |
||
|
220
|
220
220D0514 SCREW-PAN-CROS |
220D0514 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
410A
|
410A
410E0800 WASHER-PLAIN-SMALL,8M |
410E0800 |
US $0.61 |
||
| replacement | |||||
|
410A
|
410A
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
550
|
550
550D2020 PIN-COTTER,2.0X20 |
550D2020 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2020 PIN-COTTER,2.0X20 |
550AA2020 |
from US $0.79 |
||
|
550A
|
550A
550D2518 PIN,COTTER,2.5X18 |
550D2518 |
US $0.79 |
||
| replacement | |||||
|
550A
|
550A
550AA2518 PIN,COTTER,2.5X18 |
550AA2518 |
from US $0.79 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
554A
|
554A
554A0800 PIN-SNAP |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554A
|
554A
554DA0800 PIN-SNAP |
554DA0800 |
from US $0.63 |
||
|
670
|
670
670B2011 O RING |
670B2011 |
from US $1.75 |
||
|
11046
|
11046
11046-1674 BRACKET,EQUALIZER |
11046-1674 |
US $60.66 |
||
|
11047
|
11047
11047-1043 BRACKET,DIFF LOCK |
11047-1043 |
US $7.85 |
||
| replacement | |||||
|
11047
|
11047
11055-7505 BRACKET,DIFF LOCK |
11055-7505 |
from US $4.98 |
||
|
49001
|
49001
49001-1051
NIPPLE-GREASE
|
49001-1051 |
— | ||
| replacement | |||||
|
49001
|
49001
49001-0001 NIPPLE-GREASE |
49001-0001 |
from US $2.06 |
||
|
54005
|
54005
54005-1163 CABLE-BRAKE,PARKING,F |
54005-1163 |
US $26.30 |
||
|
54005A
|
54005A
54005-1164 CABLE-BRAKE,PARKING,R |
54005-1164 |
US $26.30 |
||
|
54010
|
54010
54010-1077 CABLE,DIFF LOCK |
54010-1077 |
US $22.14 |
||
|
54010A
|
54010A
54010-1078 CABLE,SHIFT CONTROL |
54010-1078 |
US $121.34 |
||
|
54010B
|
54010B
54010-1079 CABLE,HI-LOW GEAR |
54010-1079 |
US $106.38 |
||
|
54012
|
54012
54012-1375 CABLE-THROTTLE |
54012-1375 |
US $17.15 |
||
|
54017
|
54017
54017-1117
CABLE-STARTER
|
54017-1117 |
— | ||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92015A
|
92015A
92019-021
Nut,lock,10m/m
|
92019-021 |
— | ||
| replacements | |||||
|
92015A
|
92015A
92210-1184 NUT |
92210-1184 |
from US $4.09 |
||
|
92015A
|
92015A
92015-1962 NUT |
92015-1962 |
from US $3.33 |
||
|
92022
|
92022
92022-044 WASHER-PL-10.5X26X2.3 |
92022-044 |
from US $3.20 |
||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92037A
|
92037A
92037-1608 CLAMP |
92037-1608 |
from US $5.39 |
||
|
92037B
|
92037B
92037-1815
CLAMP,RH
|
92037-1815 |
— | ||
|
92043
|
92043
92043-092 PIN-BRAKE CABLE FIT |
92043-092 |
from US $2.74 |
||
|
92043A
|
92043A
92043-1039 PIN |
92043-1039 |
from US $6.65 |
||
|
92072
|
92072
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
|
92072A
|
92072A
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92081
|
92081
92081-1438 SPRING,SEAT HOOK |
92081-1438 |
US $6.05 |
||
|
92170
|
92170
92037-1933 CLAMP,CABLE |
92037-1933 |
US $9.04 |
||
