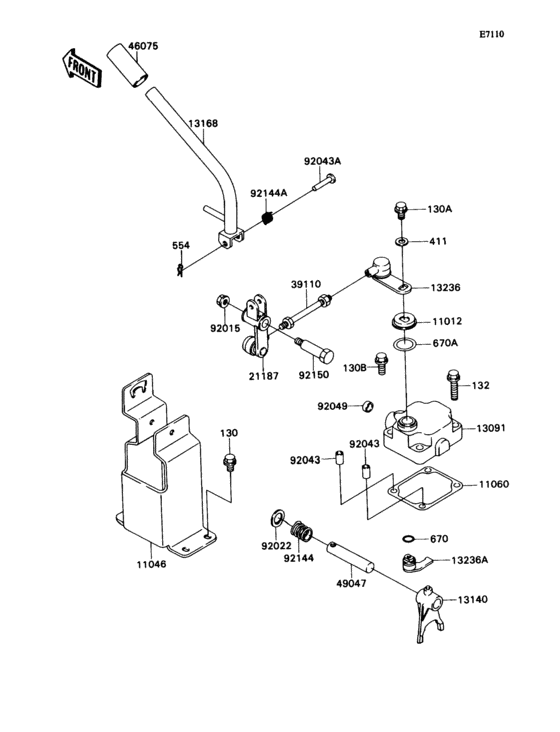

Control Diagram Kawasaki KAF540 Mule 2010
- Model code
- KAF540-C1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0614
BOLT-FLANGED,6X14
|
130D0614 |
— | ||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.82 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
130A
|
130A
130J0612
BOLT-FLANGED,6X12
|
130J0612 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130B
|
130B
130J0620
BOLT-FLANGED
|
130J0620 |
— | ||
| replacements | |||||
|
130B
|
130B
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130B
|
130B
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
132
|
132
132J0635 BOLT-FLANGED-SMALL |
132J0635 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BB0635 BOLT-FLANGED-SMALL |
132BB0635 |
from US $1.27 |
||
|
411
|
411
411F0600 WASHER-PLAIN,6.5X13X1 |
411F0600 |
from US $1.53 |
||
| replacement | |||||
|
411
|
411
411AB0600 WASHER-PLAIN,(6.5x13x1) |
411AB0600 |
from US $0.63 |
||
|
554
|
554
554A0500
PIN-SNAP,5MM
|
554A0500 |
— | ||
| replacement | |||||
|
554
|
554
554DA0500 PIN-SNAP |
554DA0500 |
from US $1.73 |
||
|
670
|
670
670B2010 0 RING, 10MM |
670B2010 |
from US $1.87 |
||
|
670A
|
670A
670B2018 0 RING,18MM |
670B2018 |
from US $1.77 |
||
|
11012
|
11012
11012-1652 CAP |
11012-1652 |
from US $4.67 |
||
|
11046
|
11046
11046-1659 BRACKET |
11046-1659 |
US $33.52 |
||
| replacement | |||||
|
11046
|
11046
11047-1882 BRACKET |
11047-1882 |
US $46.28 |
||
|
11060
|
11060
11060-1233 GASKET,CONTROL LEVER |
11060-1233 |
US $3.58 |
||
|
13091
|
13091
13091-1548 HOLDER |
13091-1548 |
from US $34.06 |
||
|
13140
|
13140
13140-1182 FORK-SHIFT |
13140-1182 |
US $76.39 |
||
|
13168
|
13168
13168-1424 LEVER |
13168-1424 |
from US $29.87 |
||
|
13236
|
13236
13236-1175 LEVER-COMP |
13236-1175 |
from US $67.03 |
||
|
13236A
|
13236A
13236-1208 LEVER-COMP |
13236-1208 |
US $23.09 |
||
|
21187
|
21187
21187-1075 ARM-ASSY,ROD END-TIE |
21187-1075 |
US $95.62 |
||
|
39110
|
39110
39110-1008 ROD-ASSY-TIE,L=90,BLA |
39110-1008 |
from US $9.66 |
||
|
46075
|
46075
46075-1062 GRIP |
46075-1062 |
US $6.32 |
||
|
49047
|
49047
49047-1078 ROD-SHIFT |
49047-1078 |
from US $16.79 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-269 WASHER,PLAIN |
92022-269 |
from US $1.72 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92043A
|
92043A
92043-1434 PIN,5X27.5 |
92043-1434 |
from US $5.54 |
||
|
92049
|
92049
92049-1311 SEAL-OIL,RCA124 |
92049-1311 |
from US $3.57 |
||
|
92144
|
92144
92081-1957 SPRING,REAR STEP |
92081-1957 |
from US $3.11 |
||
|
92144A
|
92144A
92144-1428 SPRING,LEVER |
92144-1428 |
from US $3.27 |
||
|
92150
|
92150
92002-1984 BOLT |
92002-1984 |
from US $5.28 |
||
