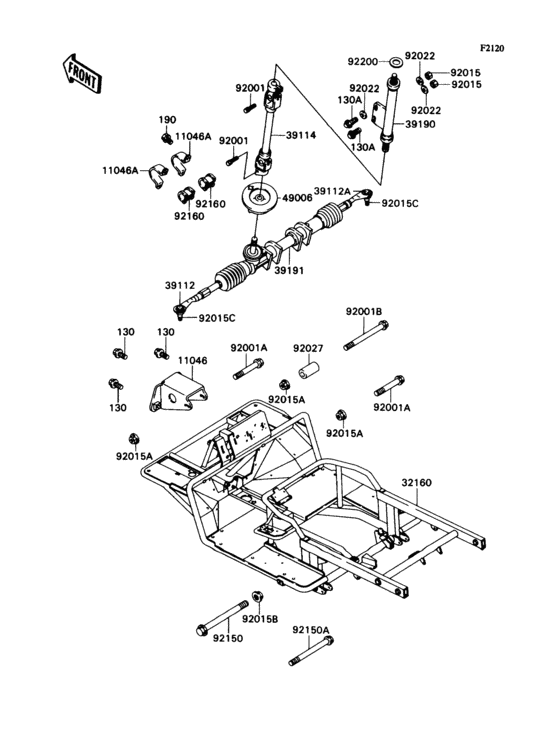

Frame Diagram Kawasaki KAF540 Mule 2010
- Model code
- KAF540-C1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G1020 BOLT-FLANGED,10X20 |
130G1020 |
from US $1.90 |
||
| replacements | |||||
|
130
|
130
130CA1020 BOLT-FLANGED,10X20 |
130CA1020 |
from US $1.43 |
||
|
130
|
130
130BA1020 BOLT-FLANGED,10X20 |
130BA1020 |
from US $1.09 |
||
|
130A
|
130A
130J1030
BOLT-FLANGED,10X30,BL
|
130J1030 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB1030 BOLT-FLANGED,10X30,BL |
130BB1030 |
from US $1.43 |
||
|
130A
|
130A
130CB1030 BOLT-FLANGED,10X30,BL |
130CB1030 |
from US $1.43 |
||
|
190
|
190
190H1025 BOLT-UPSET-WS |
190H1025 |
US $4.07 |
||
| replacement | |||||
|
190
|
190
190BA1025 BOLT-UPSET-WS |
190BA1025 |
from US $1.40 |
||
|
11046
|
11046
11046-1684 BRACKET,FRONT DIFF |
11046-1684 |
US $16.47 |
||
|
11046A
|
11046A
11046-1858 BRACKET,STEERING GEAR |
11046-1858 |
US $9.05 |
||
| replacement | |||||
|
11046A
|
11046A
11056-2238 BRACKET,STEERING GEAR |
11056-2238 |
from US $10.73 |
||
|
32160
|
32160
32160-1078
Frame-comp
|
32160-1078 |
— | ||
|
39112
|
39112
39112-1068 RODEND-TIE,STEERING GEAR,LH |
39112-1068 |
from US $72.90 |
||
|
39112A
|
39112A
39112-1069 RODEND-TIE,STEERING GEAR,RH |
39112-1069 |
from US $72.90 |
||
|
39114
|
39114
39114-1067 SHAFT-COMP-STRG |
39114-1067 |
US $323.53 |
||
| replacement | |||||
|
39114
|
39114
39114-0009 SHAFT-COMP-STRG |
39114-0009 |
from US $216.17 |
||
|
39190
|
39190
39190-1003 Shaft-assy-steering |
39190-1003 |
US $189.25 |
||
| replacements | |||||
|
39190
|
39190
39190-0005 SHAFT-ASSY-STEERING |
39190-0005 |
from US $163.30 |
||
|
39190
|
39190
39190-1006 SHAFT-ASSY-STEERING |
39190-1006 |
US $247.61 |
||
|
39191
|
39191
39191-1002 Gear-assy-steering |
39191-1002 |
US $1,029.65 |
||
| replacement | |||||
|
39191
|
39191
39191-0021 GEAR-ASSY-STEERING |
39191-0021 |
from US $833.59 |
||
|
49006
|
49006
49006-1255 BOOT,STEERING SHAFT,L |
49006-1255 |
from US $22.71 |
||
|
92001
|
92001
92001-1379
BOLT,8X30
|
92001-1379 |
— | ||
|
92001A
|
92001A
92001-1600 BOLT,FLANGED,10X70 |
92001-1600 |
US $8.75 |
||
| replacement | |||||
|
92001A
|
92001A
92001-1618 BOLT,FLANGED,10X70 |
92001-1618 |
from US $6.49 |
||
|
92001B
|
92001B
92001-1603 BOLT,FLANGED,10X115 |
92001-1603 |
from US $6.22 |
||
|
92015
|
92015
92015-1189 NUT,LOCK,10MM,BLACK |
92015-1189 |
from US $3.96 |
||
|
92015A
|
92015A
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
||
|
92015B
|
92015B
92015-1706 NUT |
92015-1706 |
from US $4.75 |
||
|
92015C
|
92015C
92015-1864 NUT |
92015-1864 |
from US $8.55 |
||
|
92022
|
92022
92022-1396 WASHER,10.5X26X2.3,BL |
92022-1396 |
from US $1.90 |
||
|
92027
|
92027
92027-1518 COLLAR,11X20X39 |
92027-1518 |
from US $11.20 |
||
|
92150
|
92150
92002-1507 BOLT,FLANGED,12X135 |
92002-1507 |
from US $10.61 |
||
|
92150A
|
92150A
92150-1088 BOLT,FLANGED,12X110 |
92150-1088 |
from US $9.35 |
||
|
92160
|
92160
92160-1084 DAMPER,STEERING GEAR |
92160-1084 |
from US $18.82 |
||
|
92200
|
92200
92200-1130 WASHER,15X45X0.6 |
92200-1130 |
from US $2.65 |
||
