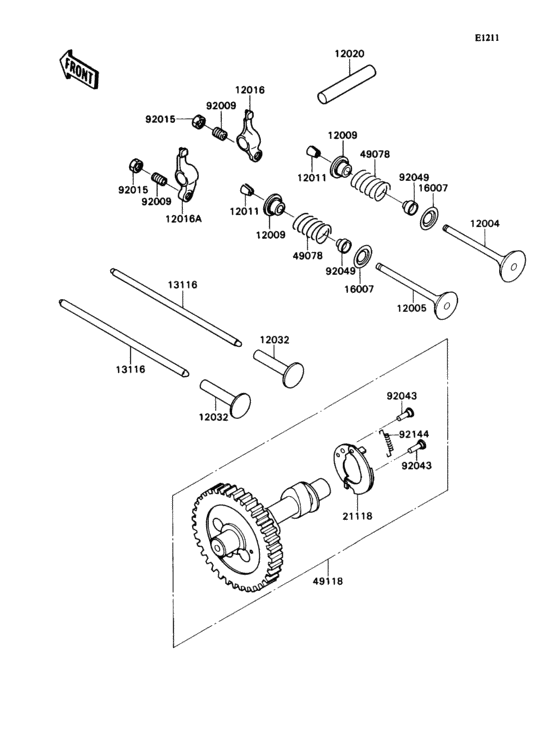

Valve/camshaft Diagram Kawasaki KAF540 Mule 2010
- Model code
- KAF540-C1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12004
|
12004
12004-2080 VALVE-INTAKE |
12004-2080 |
US $19.51 |
||
|
12005
|
12005
12005-1131 VALVE-EXHAUST |
12005-1131 |
US $51.14 |
||
|
12009
|
12009
12009-2064 Retainer-valve spring |
12009-2064 |
US $4.27 |
||
|
12011
|
12011
12011-2055 COLLET |
12011-2055 |
US $0.81 |
||
|
12016
|
12016
12016-2054 ARM-ROCKER |
12016-2054 |
from US $13.97 |
||
|
12016A
|
12016A
12016-2055 ARM-ROCKER |
12016-2055 |
US $21.73 |
||
|
12020
|
12020
12020-2058 SHAFT-ROCKER |
12020-2058 |
US $4.30 |
||
|
12032
|
12032
12032-2061 TAPPET-VALVE |
12032-2061 |
US $11.36 |
||
| replacement | |||||
|
12032
|
12032
12032-2068 Tappet |
12032-2068 |
from US $11.36 |
||
|
13116
|
13116
13116-2055 ROD-PUSH |
13116-2055 |
US $17.39 |
||
|
16007
|
16007
16007-2052 SEAT-SPRING |
16007-2052 |
from US $1.07 |
||
|
21118
|
21118
21118-1067 DECOMPRESSOR |
21118-1067 |
US $20.88 |
||
|
49078
|
49078
49078-2061 SPRING-VALVE |
49078-2061 |
US $4.07 |
||
|
49118
|
49118
49118-1073 CAMSHAFT-COMP |
49118-1073 |
US $405.52 |
||
|
92009
|
92009
92009-2182
SCREW
|
92009-2182 |
— | ||
|
92015
|
92015
92015-2139
NUT
|
92015-2139 |
— | ||
|
92043
|
92043
92043-2113 PIN |
92043-2113 |
from US $1.21 |
||
|
92049
|
92049
92049-2100 SEAL-OIL |
92049-2100 |
from US $3.27 |
||
|
92144
|
92144
92144-1408 SPRING,DECOMPRESSOR |
92144-1408 |
US $4.91 |
||
