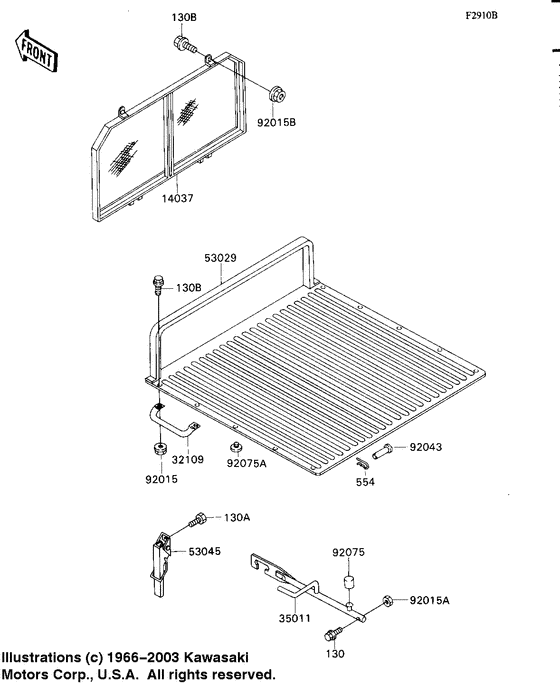

Accessory (Carrier/screen) Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14037
|
14037
14037-1119 Screen,rear guardScreen,rear guard; |
14037-1119 |
US $149.81 |
||
| replacement | |||||
|
14037
|
14037
14037-0016-10 SCREEN,REAR GUARD,BLAScreen,rear guard; |
14037-0016-10 |
US $234.28 |
||
|
32109
|
32109
32109-1196-B1 GRIP-FRAME,F.REDGrip-frame,f.red; |
32109-1196-B1 |
US $3.98 |
||
|
35011
|
35011
35011-1535 STAY,CARRIER STOPPERStay,carrier stopper; |
35011-1535 |
US $11.72 |
||
|
53029
|
53029
53029-1125-B1 CARRIER,F.REDCarrier,f.red; |
53029-1125-B1 |
US $964.96 |
||
|
53045
|
53045
53045-1058 HOOK-ASSY |
53045-1058 |
US $20.18 |
||
| replacement | |||||
|
53045
|
53045
53045-1063 HOOK-ASSY |
53045-1063 |
from US $16.65 |
||
|
92015
|
92015
92015-1408 NUT,FLANGED,8MMNut,flanged,8mm; |
92015-1408 |
from US $4.34 |
||
| replacement | |||||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MMNut,flanged,8mm; |
92210-0004 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.69 |
||
|
92015B
|
92015B
92015-1696 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015B
|
92015B
92210-0005 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92210-0005 |
from US $2.30 |
||
|
92043
|
92043
92043-1428 PIN,12X65Pin,12x65; |
92043-1428 |
from US $6.22 |
||
|
92075
|
92075
92075-1817 DAMPER |
92075-1817 |
from US $3.64 |
||
|
92075A
|
92075A
92075-1859 DAMPER |
92075-1859 |
from US $3.89 |
||
|
130
|
130
130H0630 BOLT-FLANGED,6X30Bolt-flanged,6x30; |
130H0630 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0630 BOLT-FLANGED,6X30Bolt-flanged,6x30; |
130BA0630 |
from US $0.95 |
||
|
130A
|
130A
130J0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14,black; |
130J0614 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14,black; |
130BB0614 |
from US $1.11 |
||
|
130B
|
130B
130J0820
BOLT-FLANGED
Bolt-flanged,8x20; |
130J0820 |
— | ||
| replacement | |||||
|
130B
|
130B
130BB0820 BOLT-FLANGEDBolt-flanged,8x20; |
130BB0820 |
from US $1.24 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/MPin-snap,12mm; |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/MPin-snap,12mm; |
554DA1200 |
from US $2.17 |
||
