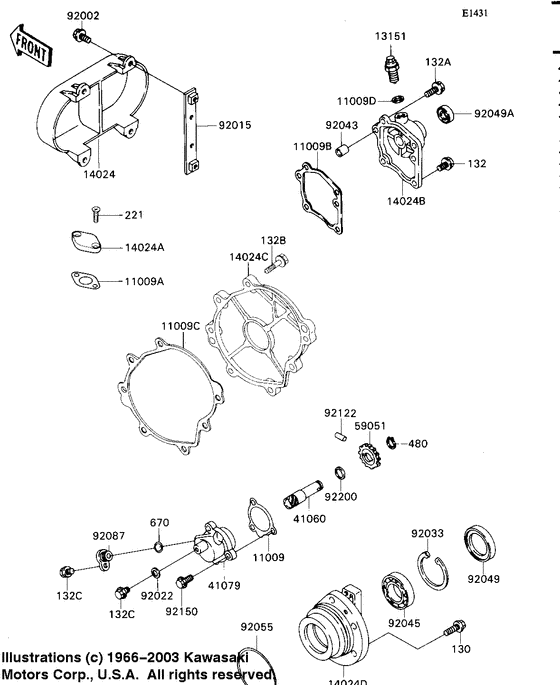

Engine cover Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1686 GASKET,METER GEAR CASGasket,meter gear case; |
11009-1686 |
US $2.59 |
||
| replacement | |||||
|
11009
|
11009
11060-1246 GASKET,METER GEAR CASGasket,meter gear case; |
11060-1246 |
US $2.59 |
||
|
11009A
|
11009A
11009-1688 GASKET,SHIFTER COVERGasket,shifter cover; |
11009-1688 |
US $2.72 |
||
| replacement | |||||
|
11009A
|
11009A
11060-1247 GASKET,SHIFTER COVERGasket,shifter cover; |
11060-1247 |
US $2.72 |
||
|
11009B
|
11009B
11009-1797 GASKET,CHANGE COVERGasket,change cover; |
11009-1797 |
US $4.84 |
||
| replacement | |||||
|
11009B
|
11009B
11060-1243 GASKET,CHANGE COVERGasket,change cover; |
11060-1243 |
US $4.84 |
||
|
11009C
|
11009C
11009-1798 GASKET |
11009-1798 |
US $8.57 |
||
| replacement | |||||
|
11009C
|
11009C
11060-1244 GASKET |
11060-1244 |
US $8.57 |
||
|
11009D
|
11009D
92065-058 GASKETGasket,10.5x16x1,drain plug; |
92065-058 |
from US $3.37 |
||
|
13151
|
13151
13151-1069 Switch-Comp,NeutralSwitch-comp,neutral; |
13151-1069 |
from US $19.58 |
||
|
14024
|
14024
14024-1558
COVER,DUCT
Cover,duct; |
14024-1558 |
— | ||
|
14024A
|
14024A
14024-1559 COVER,SHIFTERCover,shifter; |
14024-1559 |
US $8.73 |
||
|
14024B
|
14024B
14024-1780 COVER,CHANGE MECHANISCover,change mechanism; |
14024-1780 |
US $48.13 |
||
|
14024C
|
14024C
14024-1781 COVER |
14024-1781 |
US $31.39 |
||
|
14024D
|
14024D
14024-1782 COVER |
14024-1782 |
US $86.17 |
||
|
41060
|
41060
41060-1136 GEAR-METER SCREW |
41060-1136 |
US $27.27 |
||
|
41079
|
41079
41079-1059 CASE-METER GEAR |
41079-1059 |
US $65.02 |
||
|
59051
|
59051
59051-1219 GEAR-SPUR,13TGear-spur,13t; |
59051-1219 |
US $44.73 |
||
|
92002
|
92002
92002-1570 BOLT-FLANGED-SMALL,6XBolt,6x16; |
92002-1570 |
from US $3.02 |
||
| replacement | |||||
|
92002
|
92002
132BB0616 BOLT-FLANGED-SMALL,6XBolt,6x16; |
132BB0616 |
from US $1.11 |
||
|
92015
|
92015
92015-1785
NUT,AIR FILTER
Nut,air filter; |
92015-1785 |
— | ||
|
92022
|
92022
92022-077 WASHER,6.1X12X1Washer,6.1x12x1; |
92022-077 |
from US $2.53 |
||
|
92033
|
92033
92033-1274 RING-SNAPRing-snap,55mm; |
92033-1274 |
from US $5.60 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14Pin,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
|
92045
|
92045
92045-1208 BEARING-BALL,6006Bearing-ball,6006; |
92045-1208 |
from US $17.27 |
||
|
92049
|
92049
92049-1298 SEAL-OIL,TC35X55X8Seal-oil,tc35x55x8; |
92049-1298 |
from US $6.54 |
||
|
92049A
|
92049A
92051-005 OIL SEAL,TB13225.5Seal-oil,tb13225.5; |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-1357 RING-O,74.6X2.4Ring-o,74.6x2.4; |
92055-1357 |
from US $4.75 |
||
|
92087
|
92087
92087-1058 BUSHING-METER GEAR |
92087-1058 |
from US $4.82 |
||
|
92122
|
92122
92122-1126 ROLLER,3X15.8Roller,3x15.8; |
92122-1126 |
from US $2.53 |
||
|
92150
|
92150
92150-1010 BOLT,6X20Bolt,6x20; |
92150-1010 |
from US $2.38 |
||
| replacement | |||||
|
92150
|
92150
132BB0620 BOLT,6X20Bolt,6x20; |
132BB0620 |
from US $2.38 |
||
|
92200
|
92200
92200-1009 WASHER |
92200-1009 |
from US $3.01 |
||
|
130
|
130
130D0825 BOLT-FLANGED |
130D0825 |
US $1.24 |
||
| replacements | |||||
|
130
|
130
130BA0825 BOLT-FLANGED,8X25 |
130BA0825 |
from US $1.27 |
||
|
130
|
130
130AA0825 BOLT-FLANGED |
130AA0825 |
from US $0.90 |
||
|
132
|
132
132H0616 BOLT-FLANGED-SMALL,6X |
132H0616 |
from US $1.43 |
||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
132A
|
132A
132H0620 BOLT-FLANGED-SMALL,6X |
132H0620 |
from US $1.11 |
||
| replacement | |||||
|
132A
|
132A
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
132B
|
132B
132H0825 BOLT-FLANGED-SMALL |
132H0825 |
US $1.85 |
||
|
132C
|
132C
132J0610
BOLT-FLANGED-SMALL,6X
Bolt-flanged-small,6x10; |
132J0610 |
— | ||
| replacement | |||||
|
132C
|
132C
132BB0610 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x10; |
132BB0610 |
from US $1.11 |
||
|
221
|
221
221B0618
SCREW,6X18
Screw-csk-cros,6x18; |
221B0618 |
— | ||
| replacement | |||||
|
221
|
221
221AA0618 SCREW,6X18Screw-csk-cros,6x18; |
221AA0618 |
from US $0.95 |
||
|
480
|
480
480J1100 CIRCLIP,11MMCirclip-type-c,11mm; |
480J1100 |
from US $1.11 |
||
|
670
|
670
670D1510 0 RING,10MMO ring,10mm; |
670D1510 |
from US $2.85 |
||
