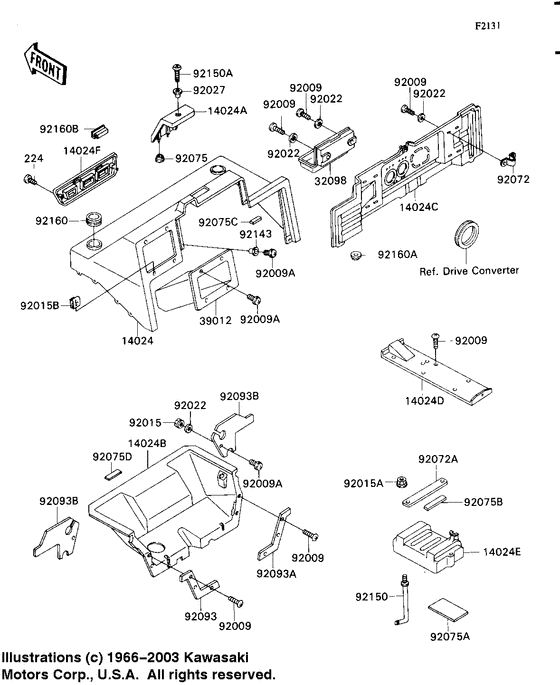

Frame fitting (Cover) Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14024
|
14024
14024-1787-B1 COVER,UPP,F.REDCover,upp,f.red; |
14024-1787-B1 |
US $404.64 |
||
|
14024A
|
14024A
14024-1788-B1 COVER,MAINTENANCE,F.RCover,maintenance,f.red; |
14024-1788-B1 |
US $60.03 |
||
| replacement | |||||
|
14024A
|
14024A
14024-1788-6L COVER,MAINTENANCE,F.RCover,maintenance,f.red; |
14024-1788-6L |
from US $69.36 |
||
|
14024B
|
14024B
14024-1789 COVER,LWRCover,lwr; |
14024-1789 |
US $98.33 |
||
|
14024C
|
14024C
14024-1790 COVER,SEAT UNDERCover,seat under; |
14024-1790 |
US $108.68 |
||
|
14024D
|
14024D
14024-1791 COVER,FLOOR,CNTCover,floor,cnt; |
14024-1791 |
US $95.29 |
||
| replacement | |||||
|
14024D
|
14024D
14091-0118 COVER,FLOOR,CNTCover,floor,cnt; |
14091-0118 |
US $102.83 |
||
|
14024E
|
14024E
14024-1792 COVER,BATTERYCover,battery; |
14024-1792 |
from US $56.61 |
||
|
14024F
|
14024F
14024-1816-B1 COVER,FRONT GRILL,F.RCover,front grill,f.red; |
14024-1816-B1 |
US $100.46 |
||
|
32098
|
32098
32098-1052 CASE-TOOL |
32098-1052 |
from US $22.29 |
||
|
39012
|
39012
39012-1053 CASE-STORAGE |
39012-1053 |
US $63.43 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1181
SCREW,6X18
Screw,6x18,black; |
92009-1181 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92172-0002 SCREW,6X18Screw,6x18,black; |
92172-0002 |
from US $1.27 |
||
|
92015
|
92015
92015-1386 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1406 NUT,8MMNut,8mm; |
92015-1406 |
from US $2.85 |
||
|
92015B
|
92015B
92015-1678 NUTNut,clamp,6mm; |
92015-1678 |
from US $3.17 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLAWasher,6.5x20x1.6,black; |
92022-1346 |
from US $0.82 |
||
|
92027
|
92027
92027-1920 COLLARCollar,l=14.1; |
92027-1920 |
from US $4.80 |
||
|
92072
|
92072
92072-1252 BAND |
92072-1252 |
from US $6.68 |
||
|
92072A
|
92072A
92072-1255 BAND,BATTERYBand,battery; |
92072-1255 |
from US $4.16 |
||
|
92075
|
92075
92075-1067 DAMPER,SIDE COVER |
92075-1067 |
from US $3.73 |
||
|
92075A
|
92075A
92075-1076 DAMPER,BATTERY BASE |
92075-1076 |
from US $5.70 |
||
|
92075B
|
92075B
92075-1214 DAMPER,ENGINE GUARD |
92075-1214 |
from US $2.65 |
||
|
92075C
|
92075C
92075-1658 DAMPER,AIR FILTER COVDamper,intake silencer cover; |
92075-1658 |
from US $3.64 |
||
|
92075D
|
92075D
92075-1903 DAMPER,BATTERYDamper,battery band; |
92075-1903 |
from US $3.33 |
||
| replacement | |||||
|
92075D
|
92075D
92160-1094 DAMPER,BATTERYDamper,battery band; |
92160-1094 |
from US $3.80 |
||
|
92093
|
92093
92093-1293 SEAL,FRONT FENDER,LHSeal,front fender,lh; |
92093-1293 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1294 SEAL,FRONT FENDER,RHSeal,front fender,rh; |
92093-1294 |
from US $6.22 |
||
|
92093B
|
92093B
92093-1295 SEAL,LOWER COVERSeal,lower cover; |
92093-1295 |
US $22.88 |
||
| replacement | |||||
|
92093B
|
92093B
92093-0181 SEAL,LOWER COVERSeal,lower cover; |
92093-0181 |
from US $12.76 |
||
|
92143
|
92143
92143-1087 COLLARCollar,l=5; |
92143-1087 |
from US $2.85 |
||
|
92150
|
92150
92150-1293 BOLT,BATTERYBolt,battery; |
92150-1293 |
from US $6.22 |
||
|
92150A
|
92150A
92150-1360 BOLT,6X25Bolt,6x25; |
92150-1360 |
US $3.29 |
||
|
92160
|
92160
92160-1142 DAMPER |
92160-1142 |
US $7.51 |
||
|
92160A
|
92160A
92160-1148 DAMPER |
92160-1148 |
from US $2.65 |
||
|
92160B
|
92160B
92160-1160 DAMPER |
92160-1160 |
US $2.21 |
||
|
224
|
224
224C0630 SCREW-PAN-WP-CROS |
224C0630 |
from US $1.11 |
||
| replacement | |||||
|
224
|
224
224AB0630 SCREW-PAN-WP-CROS |
224AB0630 |
from US $1.24 |
||
