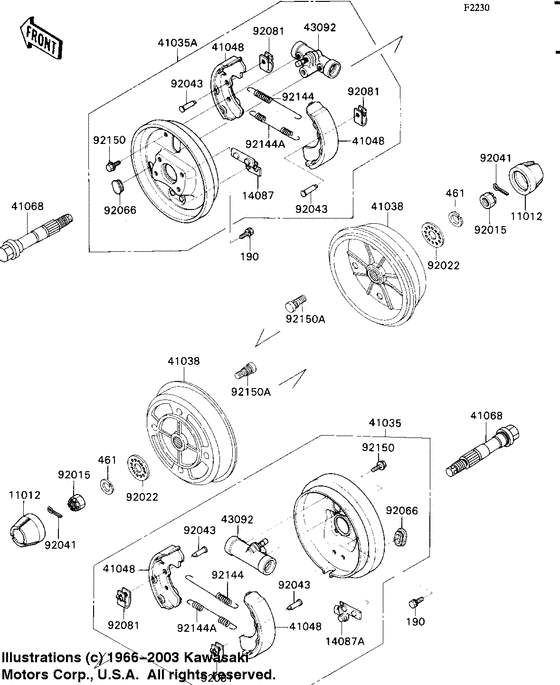

Front hub Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1519 CAP,WHEELCap,wheel; |
11012-1519 |
US $4.34 |
||
| replacement | |||||
|
11012
|
11012
11012-1969 CAP,WHEELCap,wheel; |
11012-1969 |
from US $5.33 |
||
|
14087
|
14087
14087-1001 RETAINER-ASSY,RHRetainer-assy,rh; |
14087-1001 |
from US $15.55 |
||
|
14087A
|
14087A
14087-1002 RETAINER-ASSY,LHRetainer-assy,lh; |
14087-1002 |
from US $15.55 |
||
|
41035
|
41035
41035-1263 PANEL-ASSY-BRAKE,FR,LPanel-assy-brake,fr,lh; |
41035-1263 |
US $388.66 |
||
| replacement | |||||
|
41035
|
41035
41035-1308 PANEL-ASSY-BRAKE,FR,LPanel-assy-brake,fr,lh; |
41035-1308 |
from US $387.24 |
||
|
41035A
|
41035A
41035-1264 PANEL-ASSY-BRAKE,FR,RPanel-assy-brake,fr,rh; |
41035-1264 |
US $388.66 |
||
| replacement | |||||
|
41035A
|
41035A
41035-1309 PANEL-ASSY-BRAKE,FR,RPanel-assy-brake,fr,rh; |
41035-1309 |
from US $387.24 |
||
|
41038
|
41038
41038-1219 DRUM,FRONT BRAKEDrum,front brake; |
41038-1219 |
from US $241.06 |
||
|
41048
|
41048
41048-1077 SHOE-BRAKE |
41048-1077 |
from US $36.08 |
||
|
41068
|
41068
41068-1296 AXLE,FRAxle,fr; |
41068-1296 |
from US $105.44 |
||
|
43092
|
43092
43092-1054 CYLINDER,FT BRAKE PNLCylinder,front brake panel; |
43092-1054 |
from US $103.97 |
||
|
92015
|
92015
92015-1441 NUT CASTLE,18MMNut,castle,18mm; |
92015-1441 |
US $8.19 |
||
| replacement | |||||
|
92015
|
92015
42045018 NUT CASTLE,18MMNut,castle,18mm; |
42045018 |
from US $7.76 |
||
|
92022
|
92022
92022-1794 Washer,t=4.5Washer,t=4.5; |
92022-1794 |
US $4.55 |
||
| replacement | |||||
|
92022
|
92022
92200-1474 WASHER,18.5X52X4.5Washer,t=4.5; |
92200-1474 |
from US $4.67 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35Cotter,4.0x35; |
92041-1053 |
from US $2.33 |
||
|
92043
|
92043
92043-1398 PIN,TENSIONPin,tension; |
92043-1398 |
from US $2.79 |
||
|
92066
|
92066
92066-1309 PLUG |
92066-1309 |
from US $3.11 |
||
|
92081
|
92081
92081-1904 SPRING,SHOE CLAMPSpring,shoe clamp; |
92081-1904 |
from US $4.90 |
||
|
92144
|
92144
92144-1300 SPRING,BRAKE,RHSpring,brake; |
92144-1300 |
from US $5.18 |
||
|
92144A
|
92144A
92144-1301 SPRING,BRAKESpring,brake; |
92144-1301 |
from US $5.18 |
||
|
92150
|
92150
92150-1166 BOLT,FLANGED,6X12Bolt,flanged,6x12; |
92150-1166 |
from US $2.65 |
||
|
92150A
|
92150A
92150-1366 BOLT |
92150-1366 |
from US $4.90 |
||
|
190
|
190
190H1016 BOLT-UPSET-WS,10X16Bolt-upset-ws,10x16; |
190H1016 |
US $3.24 |
||
| replacement | |||||
|
190
|
190
190BA1016 BOLT-UPSET-WS,10X16Bolt-upset-ws,10x16; |
190BA1016 |
from US $1.40 |
||
|
461
|
461
461F1800 WASHER-SPRING,18MMWasher-spring,18mm; |
461F1800 |
US $2 |
||
| replacement | |||||
|
461
|
461
461DA1800 WASHER-SPRING,18MMWasher-spring,18mm; |
461DA1800 |
from US $1.09 |
||
