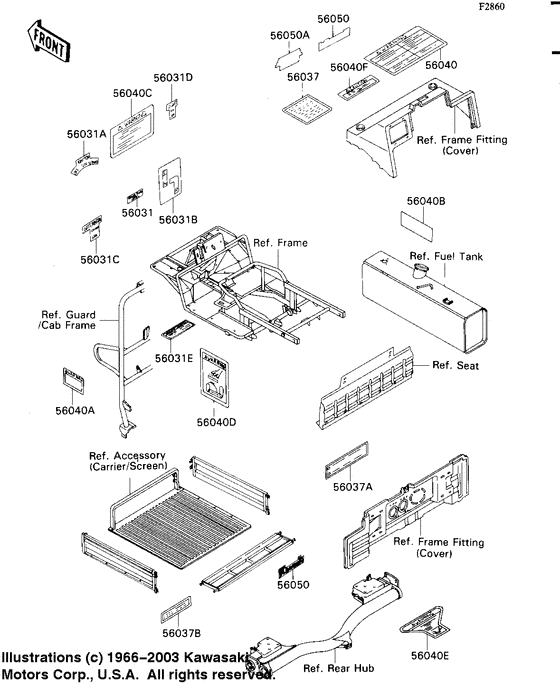

Label Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56031
|
56031
56031-1643 LABEL-MANUAL,BRAKE FLLabel-manual,brake fluid; |
56031-1643 |
US $1.17 |
||
|
56031A
|
56031A
56031-1644 LABEL-MANUAL,IGNITIONLabel-manual,ignition switch; |
56031-1644 |
US $2.43 |
||
| replacement | |||||
|
56031A
|
56031A
56031-1740
LABEL-MANUAL,IGNITION
Label-manual,ignition switch; |
56031-1740 |
— | ||
|
56031B
|
56031B
56031-1645 LABEL-MANUAL,SHIFT COLabel-manual,shift control; |
56031-1645 |
US $4.70 |
||
| replacement | |||||
|
56031B
|
56031B
56031-1742 LABEL-MANUAL,SHIFT COLabel-manual,shift control; |
56031-1742 |
from US $4.35 |
||
|
56031C
|
56031C
56031-1647 LABEL-MANUAL,LIGHT SWLabel-manual,light switch; |
56031-1647 |
US $2.88 |
||
| replacement | |||||
|
56031C
|
56031C
56031-1741 LABEL-MANUAL,LIGHTINGLabel-manual,light switch; |
56031-1741 |
from US $4.35 |
||
|
56031D
|
56031D
56031-1673 LABEL-MANUAL,FUSE LOCLabel-manual,fuse location; |
56031-1673 |
US $3.96 |
||
|
56037
|
56037
56037-1463 LABEL-SPEC-TIRELabel-specification,tire; |
56037-1463 |
US $1.22 |
||
|
56037A
|
56037A
56037-1466 LABEL-SPECIFICATION,CLabel-specification,cargo capa; |
56037-1466 |
US $3.15 |
||
|
56037B
|
56037B
56037-1467 LABEL-SPECIFICATION,CLabel-specification,cargo capa; |
56037-1467 |
US $1.17 |
||
|
56040
|
56040
56040-1292 LABEL-WARNING,GENERALLabel-warning,general; |
56040-1292 |
US $5.38 |
||
|
56040A
|
56040A
56040-1293 LABEL-WARNING,CARGO BLabel-warning,cargo bed lock; |
56040-1293 |
US $1.17 |
||
|
56040B
|
56040B
56040-1294 Label-warning,gasolinLabel-warning,gasolin; |
56040-1294 |
US $4.77 |
||
| replacements | |||||
|
56040B
|
56040B
56070-7501 LABEL-WARNING,TIRE INLabel-warning,gasolin; |
56070-7501 |
US $2.34 |
||
|
56040B
|
56040B
56071-7501 LABEL-WARNING,GASOLINLabel-warning,gasolin; |
56071-7501 |
US $4.18 |
||
|
56040B
|
56040B
56070-0048 LABEL-WARNING,GASOLINLabel-warning,gasolin; |
56070-0048 |
US $2.38 |
||
|
56040C
|
56040C
56040-1296 Label-warning,handlingLabel-warning,handling; |
56040-1296 |
US $3.94 |
||
| replacement | |||||
|
56040C
|
56040C
56070-0050 LABEL-WARNING,OFF-HIGLabel-warning,handling; |
56070-0050 |
US $4.18 |
||
|
56040D
|
56040D
56040-1300 LABEL-WARNING,EX.PIPELabel-warning,ex.pipe heat; |
56040-1300 |
US $3.15 |
||
|
56040E
|
56040E
56040-1301 LABEL-WARNING,HITCHLabel-warning,hitch; |
56040-1301 |
US $6.62 |
||
|
56040F
|
56040F
56040-1305 LABEL-WARNINGLabel-warning,shift; |
56040-1305 |
US $1.22 |
||
|
56050
|
56050
56050-1482 MARK,KAWASAKIMark,kawasaki; |
56050-1482 |
US $9.23 |
||
|
56050A
|
56050A
56050-1597 MARK,MULE 2030Mark,mule 2030; |
56050-1597 |
US $13.28 |
||
