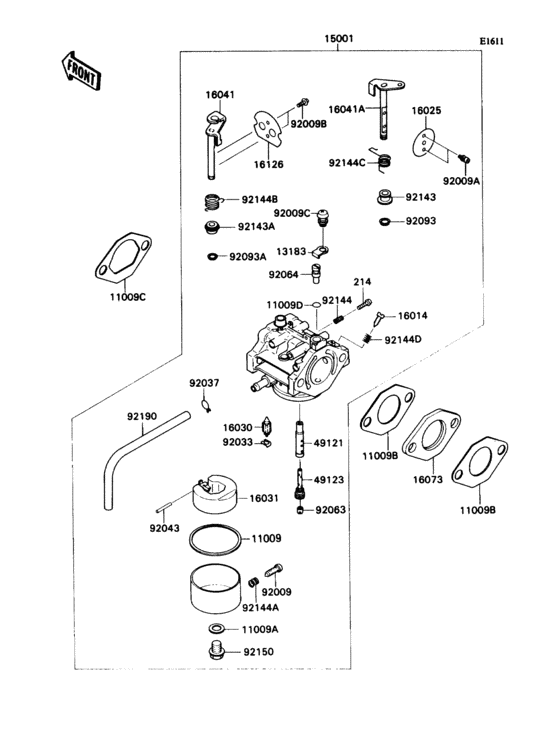

Carburetor Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
214
|
214
214B0414 SCREW-PAN+- |
214B0414 |
US $0.45 |
||
| replacement | |||||
|
214
|
214
214AA0414 SCREW-PAN+- |
214AA0414 |
from US $0.78 |
||
|
11009
|
11009
11009-2024 GASKET |
11009-2024 |
from US $2.40 |
||
|
11009A
|
11009A
11009-2025 GASKET |
11009-2025 |
from US $1.82 |
||
|
11009B
|
11009B
11009-2436 Gasket |
11009-2436 |
US $1.31 |
||
| replacement | |||||
|
11009B
|
11009B
11060-2346 GASKET,CARBURETOR |
11060-2346 |
from US $1.31 |
||
|
11009C
|
11009C
11009-2437 Gasket |
11009-2437 |
US $1.31 |
||
| replacement | |||||
|
11009C
|
11009C
11060-2347 GASKET,INTAKE PIPE |
11060-2347 |
US $2.11 |
||
|
11009D
|
11009D
16038-024 O RING |
16038-024 |
from US $2.02 |
||
|
13183
|
13183
13183-2112 PLATE |
13183-2112 |
US $2.21 |
||
|
15001
|
15001
15001-1533
CARBURETOR-ASSY
|
15001-1533 |
— | ||
|
16014
|
16014
16014-1065 SCREW-PILOT AIR |
16014-1065 |
US $14.74 |
||
|
16025
|
16025
16025-1157 VALVE-THROTTLE |
16025-1157 |
US $15.98 |
||
|
16030
|
16030
16030-2067 VALVE-NEEDLE |
16030-2067 |
from US $23.09 |
||
|
16031
|
16031
16031-2066 FLOAT |
16031-2066 |
from US $24.72 |
||
|
16041
|
16041
16041-1054 SHAFT-CARBURETOR |
16041-1054 |
US $42.23 |
||
|
16041A
|
16041A
16041-1055 SHAFT-CARBURETOR |
16041-1055 |
US $42.23 |
||
|
16073
|
16073
16073-1079 INSULATOR |
16073-1079 |
US $6.88 |
||
|
16126
|
16126
16126-1232 VALVE,CHOKE |
16126-1232 |
US $15.98 |
||
|
49121
|
49121
49121-1051 NOZZLE-MAIN |
49121-1051 |
US $18.45 |
||
|
49123
|
49123
49123-2057 HOLDER-MAIN JET |
49123-2057 |
US $16.33 |
||
|
92009
|
92009
92009-2015 SCREW,DRAIN |
92009-2015 |
from US $3.11 |
||
|
92009A
|
92009A
92009-2080 SCREW |
92009-2080 |
US $1.48 |
||
| replacement | |||||
|
92009A
|
92009A
223B0306
SCREW-PAN-WS-CROS,3X6
|
223B0306 |
— | ||
|
92009B
|
92009B
92009-2081 SCREW |
92009-2081 |
from US $1.19 |
||
|
92009C
|
92009C
92009-2244 SCREW |
92009-2244 |
from US $1.21 |
||
|
92033
|
92033
92033-2067 CLIP |
92033-2067 |
from US $2.49 |
||
|
92037
|
92037
92037-174
CLAMP
|
92037-174 |
— | ||
| replacement | |||||
|
92037
|
92037
92037-1610 CLAMP |
92037-1610 |
from US $1.74 |
||
|
92043
|
92043
92043-2006 PIN,FLOAT |
92043-2006 |
from US $2.17 |
||
|
92063
|
92063
92063-1389 JET-MAIN,#122.5 |
92063-1389 |
US $9.31 |
||
|
92064
|
92064
92064-1159 JET-PILOT,#72.5 |
92064-1159 |
US $11.29 |
||
|
92093
|
92093
92093-1286 SEAL |
92093-1286 |
US $4.84 |
||
|
92093A
|
92093A
92093-1287 SEAL |
92093-1287 |
US $4.84 |
||
|
92143
|
92143
92027-2025 RING-BUSHING |
92027-2025 |
from US $2.65 |
||
|
92143A
|
92143A
92143-1349 COLLAR |
92143-1349 |
US $6.66 |
||
|
92144
|
92144
92081-2008 SPRING |
92081-2008 |
from US $1.90 |
||
|
92144A
|
92144A
92081-2009 SPRING |
92081-2009 |
from US $1.56 |
||
|
92144B
|
92144B
92144-1442 SPRING |
92144-1442 |
US $5.71 |
||
|
92144C
|
92144C
92144-1443 SPRING,THROTTLE SHAFT |
92144-1443 |
US $8.57 |
||
|
92144D
|
92144D
92144-1527 SPRING,PILOT AIR SCRE |
92144-1527 |
from US $5.60 |
||
|
92150
|
92150
92002-2009 BOLT |
92002-2009 |
from US $4.82 |
||
|
92190
|
92190
92190-1048 TUBE |
92190-1048 |
US $8.57 |
||
