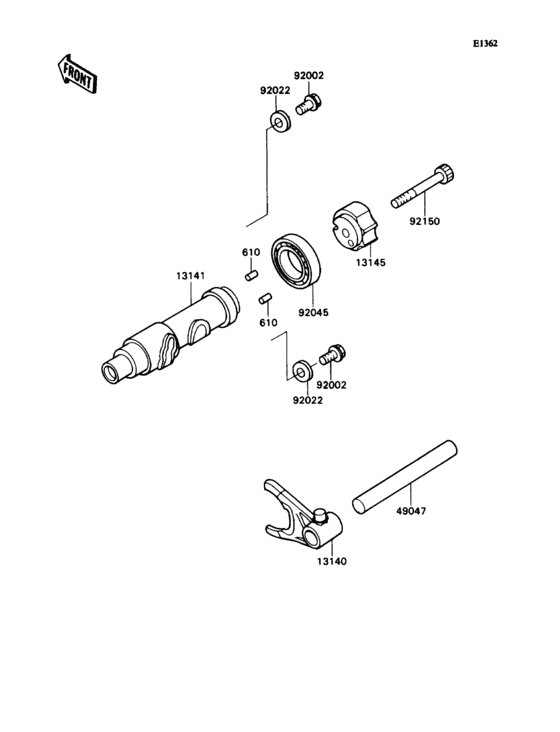

Change drum/shift fork Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
610
|
610
610A0408 PIN DOWEL 4X8 |
610A0408 |
from US $1.07 |
||
|
13140
|
13140
13140-1195
FORK-SHIFT
|
13140-1195 |
— | ||
|
13141
|
13141
13141-1167
DRUM-CHANGE
|
13141-1167 |
— | ||
|
13145
|
13145
13145-1071 CAM-CHANGE DRUM |
13145-1071 |
US $45.83 |
||
|
49047
|
49047
49047-1081 ROD-SHIFT |
49047-1081 |
US $14.94 |
||
|
92002
|
92002
92002-1572 BOLT,6X12 |
92002-1572 |
US $2.83 |
||
| replacement | |||||
|
92002
|
92002
92150-1826 BOLT,6X12 |
92150-1826 |
from US $2.53 |
||
|
92022
|
92022
92022-1393
WASHER,6X14X2
|
92022-1393 |
— | ||
|
92045
|
92045
92045-036 BEARING,BALL,#6905 |
92045-036 |
from US $21.38 |
||
|
92150
|
92150
92150-1098 BOLT |
92150-1098 |
US $3.74 |
||
