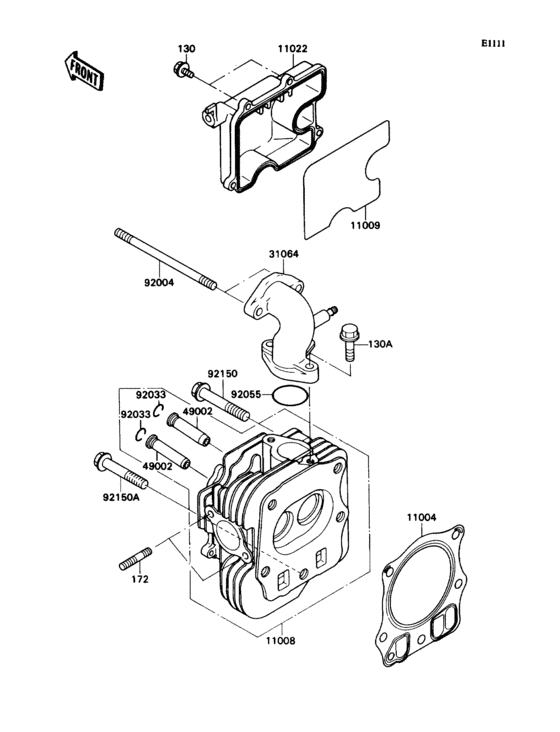

Cylinder head Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0616
BOLT-FLANGED,6X16
|
130B0616 |
— | ||
| replacements | |||||
|
130
|
130
130AA0616 BOLT-FLANGED,6X16 |
130AA0616 |
from US $0.88 |
||
|
130
|
130
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
130A
|
130A
130G0830 BOLT-FLANGED,8X30 |
130G0830 |
US $1.42 |
||
| replacements | |||||
|
130A
|
130A
130CA0830 BOLT-FLANGED |
130CA0830 |
from US $1.27 |
||
|
130A
|
130A
130BA0830 BOLT-FLANGED,8X30 |
130BA0830 |
from US $1.43 |
||
|
172
|
172
172G0830 STUD,8X30 |
172G0830 |
from US $1.27 |
||
| replacement | |||||
|
172
|
172
172BA0830 STUD,8X30 |
172BA0830 |
from US $1.24 |
||
|
11004
|
11004
11004-2097 GASKET-HEAD |
11004-2097 |
from US $15.79 |
||
|
11008
|
11008
11008-1237 HEAD-COMP-CYLINDER |
11008-1237 |
US $958.90 |
||
|
11009
|
11009
11009-2433 GASKET-ROCKER CASE |
11009-2433 |
from US $11.82 |
||
|
11022
|
11022
11022-1054 CASE-ROCKER |
11022-1054 |
US $67.36 |
||
|
31064
|
31064
31064-1111
PIPE-COMP,INTAKE
|
31064-1111 |
— | ||
|
49002
|
49002
49002-1105 GUIDE-VALVE |
49002-1105 |
US $29.66 |
||
|
92004
|
92004
92004-1192 STUD,8X145 |
92004-1192 |
US $5.71 |
||
|
92033
|
92033
92036-023 CIRCLIP-VALVE |
92036-023 |
from US $0.82 |
||
|
92055
|
92055
92055-1452 RING-O,34.5X2.0 |
92055-1452 |
from US $3.33 |
||
|
92150
|
92150
92002-2273 BOLT-HEAD |
92002-2273 |
US $3.31 |
||
|
92150A
|
92150A
92150-2105 BOLT |
92150-2105 |
US $3.15 |
||
