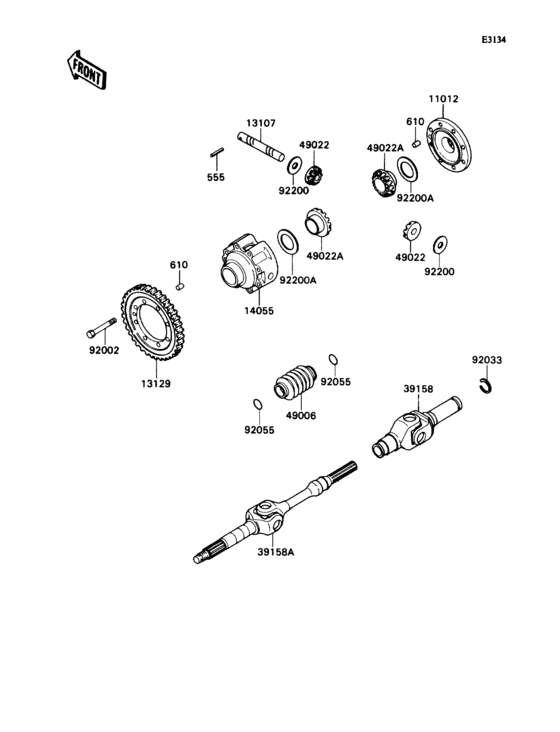

Drive shaft Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
555
|
555
555A0528 PIN-SPRING |
555A0528 |
from US $2.65 |
||
|
610
|
610
610A0812 PIN-DOWEL,8X12 |
610A0812 |
from US $0.94 |
||
|
11012
|
11012
11012-1613
CAP,GEAR CASE
|
11012-1613 |
— | ||
|
13107
|
13107
13107-1219
SHAFT
|
13107-1219 |
— | ||
|
13129
|
13129
13129-1897
GEAR,DIFFERENTIAL,67T
|
13129-1897 |
— | ||
|
14055
|
14055
14055-1081 CASE-GEAR |
14055-1081 |
US $606.44 |
||
|
39158
|
39158
39158-1068 Shaft-assy-drive,rr,i |
39158-1068 |
US $318.37 |
||
| replacements | |||||
|
39158
|
39158
39158-1095 SHAFT-ASSY-DRIVE |
39158-1095 |
from US $412.69 |
||
|
39158
|
39158
39158-1085 SHAFT-ASSY-DRIVE |
39158-1085 |
US $412.69 |
||
|
39158A
|
39158A
39158-1075
SHAFT-ASSY-DRIVE,RR,O
|
39158-1075 |
— | ||
|
49006
|
49006
49006-1257 BOOT,DRIVE SHAFT |
49006-1257 |
from US $30.48 |
||
|
49022
|
49022
49022-1105 GEAR-BEVEL,10T |
49022-1105 |
from US $61.75 |
||
|
49022A
|
49022A
49022-1117 GEAR-BEVEL,16T |
49022-1117 |
from US $117.42 |
||
|
92002
|
92002
92002-1553 BOLT,8X68 |
92002-1553 |
from US $6.06 |
||
|
92033
|
92033
92033-1240 RING-SNAP |
92033-1240 |
from US $3.33 |
||
|
92055
|
92055
92055-1451 RING-O,19.5X3.0 |
92055-1451 |
from US $2.65 |
||
|
92200
|
92200
92200-1044 WASHER,14.5X38X1.0 |
92200-1044 |
from US $5.13 |
||
|
92200A
|
92200A
92200-1045 WASHER,35.5X54X1.0 |
92200-1045 |
from US $7.46 |
||
