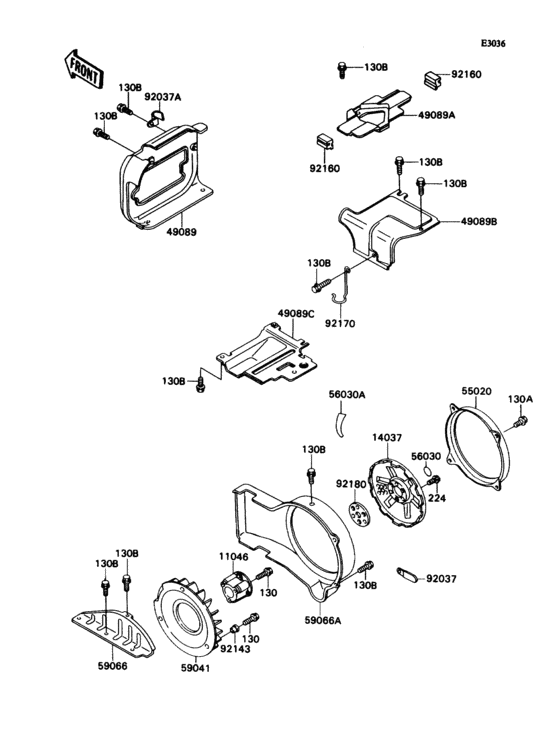

Engine shroud Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0820 BOLT-FLANGED |
130B0820 |
US $6.70 |
||
| replacements | |||||
|
130
|
130
130AA0820 BOLT-FLANGED |
130AA0820 |
from US $1.05 |
||
|
130
|
130
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
130A
|
130A
130D0508 BOLT-FLANGED |
130D0508 |
US $1.91 |
||
|
130B
|
130B
130D0610 BOLT-FLANGED,6X10 |
130D0610 |
US $4.30 |
||
| replacements | |||||
|
130B
|
130B
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.82 |
||
|
130B
|
130B
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
224
|
224
224B0616 SCREW-PAN-WP-CROS |
224B0616 |
from US $0.99 |
||
| replacement | |||||
|
224
|
224
224AA0616 SCREW-PAN-WP-CROS |
224AA0616 |
from US $1.09 |
||
|
11046
|
11046
11044-2084 BRACKET |
11044-2084 |
US $16.65 |
||
|
14037
|
14037
14037-2091 SCREEN |
14037-2091 |
US $27.18 |
||
| replacement | |||||
|
14037
|
14037
14037-2141
SCREEN
|
14037-2141 |
— | ||
|
49089
|
49089
49089-1097 SHROUD-ENGINE |
49089-1097 |
US $26.24 |
||
|
49089A
|
49089A
49089-1098 SHROUD-ENGINE |
49089-1098 |
US $13 |
||
|
49089B
|
49089B
49089-2195 SHROUD-ENGINE |
49089-2195 |
US $15.98 |
||
|
49089C
|
49089C
49089-2196 SHROUD-ENGINE |
49089-2196 |
US $15.98 |
||
|
55020
|
55020
55020-2074 GUARD |
55020-2074 |
US $14.74 |
||
|
56030
|
56030
56030-2142
Label
|
56030-2142 |
— | ||
| replacement | |||||
|
56030
|
56030
56070-2008
Label-warning
|
56070-2008 |
— | ||
|
56030A
|
56030A
56030-2204 LABEL-WARNING |
56030-2204 |
US $1.49 |
||
| replacement | |||||
|
56030A
|
56030A
56070-2006 LABEL-WARNING |
56070-2006 |
US $1.49 |
||
|
59041
|
59041
59041-1054 FAN |
59041-1054 |
US $22.82 |
||
|
59066
|
59066
59066-2286 HOUSING-FAN |
59066-2286 |
US $20.88 |
||
|
59066A
|
59066A
59066-2376
HOUSING-FAN
|
59066-2376 |
— | ||
|
92037
|
92037
92037-1539 CLAMP,WIRING HARNESS |
92037-1539 |
from US $3.17 |
||
|
92037A
|
92037A
92037-3730 CLAMP |
92037-3730 |
from US $4.46 |
||
|
92143
|
92143
92143-1318 COLLAR,FAN |
92143-1318 |
US $10.28 |
||
|
92160
|
92160
92160-1132 DAMPER |
92160-1132 |
US $4.91 |
||
|
92170
|
92170
92170-1074 CLAMP |
92170-1074 |
US $7.04 |
||
|
92180
|
92180
92025-2003
SHIM
|
92025-2003 |
— | ||
