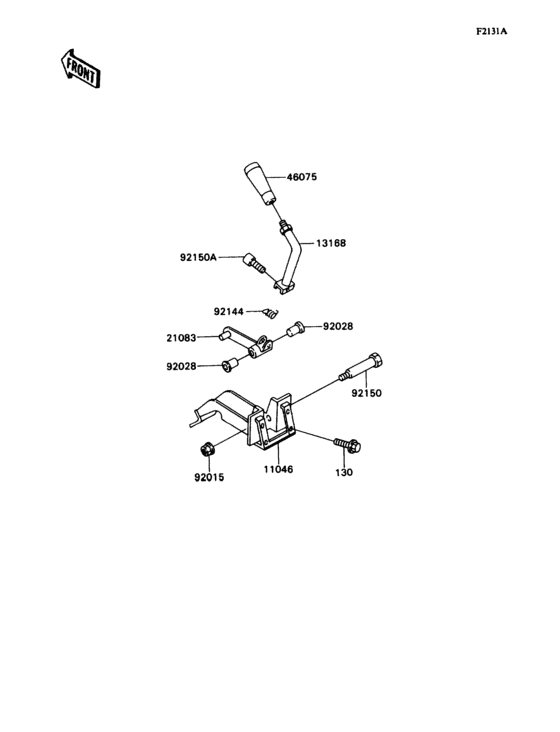

Frame fitting(lever) Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0612
BOLT-FLANGED,6X12
|
130C0612 |
— | ||
| replacements | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130
|
130
130AB0612 BOLT-FLANGED,6X12 |
130AB0612 |
from US $1.02 |
||
|
11046
|
11046
11046-1677 BRACKET,SHIFT LEVER |
11046-1677 |
US $50.24 |
||
|
13168
|
13168
13168-1440 LEVER,SHIFT |
13168-1440 |
from US $32.20 |
||
|
21083
|
21083
21083-1085 ARM,SHIFT LEVER |
21083-1085 |
US $40.48 |
||
| replacement | |||||
|
21083
|
21083
21083-1142
ARM,SHIFT LEVER
|
21083-1142 |
— | ||
|
46075
|
46075
46075-1075
GRIP,SHIFT LEVER
|
46075-1075 |
— | ||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92028
|
92028
92028-1507 BUSHING |
92028-1507 |
from US $3.02 |
||
|
92144
|
92144
92144-1175 SPRING |
92144-1175 |
US $3.57 |
||
|
92150
|
92150
92002-1984 BOLT |
92002-1984 |
from US $5.28 |
||
|
92150A
|
92150A
92150-1393 BOLT |
92150-1393 |
from US $3.89 |
||
