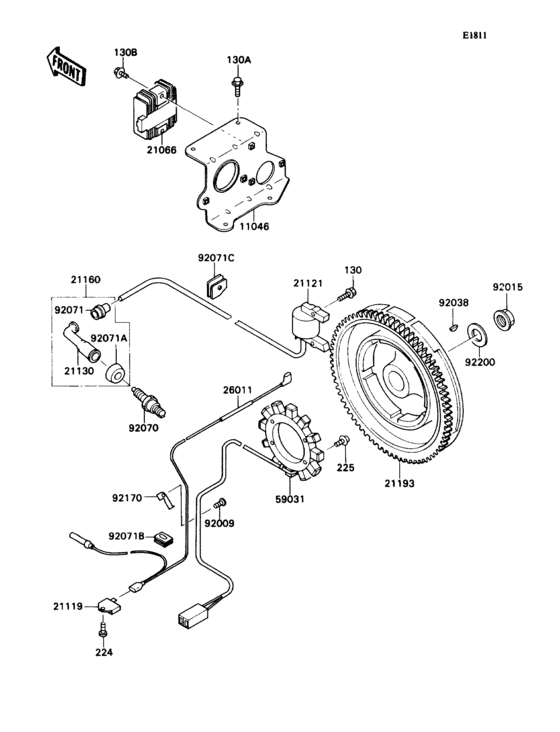

Generator/ignition coil Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0525
Bolt-flanged
|
130B0525 |
— | ||
| replacements | |||||
|
130
|
130
130BA0525 BOLT-FLANGED,5X25 |
130BA0525 |
from US $0.95 |
||
|
130
|
130
130AA0525
Bolt-flanged,5x25
|
130AA0525 |
— | ||
|
130A
|
130A
130J0610
BOLT-FLANGED,6X10
|
130J0610 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
130B
|
130B
130J0620
BOLT-FLANGED
|
130J0620 |
— | ||
| replacements | |||||
|
130B
|
130B
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130B
|
130B
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
224
|
224
224B0408 SCREW-PAN-WP-CROS |
224B0408 |
US $0.45 |
||
| replacement | |||||
|
224
|
224
224AA0408 SCREW-PAN-WP-CROS |
224AA0408 |
from US $1.11 |
||
|
225
|
225
225B0625 SCREW-PAN-WSP-CROS |
225B0625 |
US $0.68 |
||
| replacement | |||||
|
225
|
225
225AA0625 SCREW-PAN-WSP-CROS |
225AA0625 |
US $0.68 |
||
|
11046
|
11046
11046-1614 BRACKET,REGULATOR |
11046-1614 |
US $9.70 |
||
|
21066
|
21066
21066-2056 REGULATOR-VOLTAGE |
21066-2056 |
from US $110.88 |
||
|
21119
|
21119
21119-2095 IGNITER |
21119-2095 |
US $93.02 |
||
| replacement | |||||
|
21119
|
21119
21119-2161 IGNITER |
21119-2161 |
from US $68.27 |
||
|
21121
|
21121
21121-1187
COIL-IGNITION
|
21121-1187 |
— | ||
|
21130
|
21130
21130-1002
Cap-spark plug
|
21130-1002 |
— | ||
| replacement | |||||
|
21130
|
21130
21130-1010 Cap-spark plug |
21130-1010 |
from US $31.54 |
||
|
21160
|
21160
21160-1072 CAP-ASSY-PLUG |
21160-1072 |
US $25.33 |
||
|
21193
|
21193
21193-1051
FLYWHEEL-ASSY
|
21193-1051 |
— | ||
|
26011
|
26011
26011-1474 WIRE-LEAD |
26011-1474 |
US $12.62 |
||
|
59031
|
59031
59031-1052
COIL-CHARGING
|
59031-1052 |
— | ||
|
92009
|
92009
92009-2104 SCREW |
92009-2104 |
US $0.18 |
||
| replacement | |||||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92015
|
92015
92015-2152 NUT-20MM |
92015-2152 |
US $5.62 |
||
|
92038
|
92038
92038-2094 KEY |
92038-2094 |
from US $1.56 |
||
|
92070
|
92070
92070-1178 SPARK PLUG BP5ES |
92070-1178 |
US $38.20 |
||
|
92071
|
92071
21131005 GROMMET,HIGH TENSION |
21131005 |
from US $4.59 |
||
|
92071A
|
92071A
92071-1146 GROMMET,PLUG CAP |
92071-1146 |
from US $7.44 |
||
|
92071B
|
92071B
92071-2099 GROMMET |
92071-2099 |
US $0.63 |
||
|
92071C
|
92071C
92071-2112 GROMMET |
92071-2112 |
from US $2.33 |
||
|
92170
|
92170
92037-2177 CLAMP |
92037-2177 |
US $1.03 |
||
|
92200
|
92200
92022-2207 WASHER |
92022-2207 |
from US $3.47 |
||
