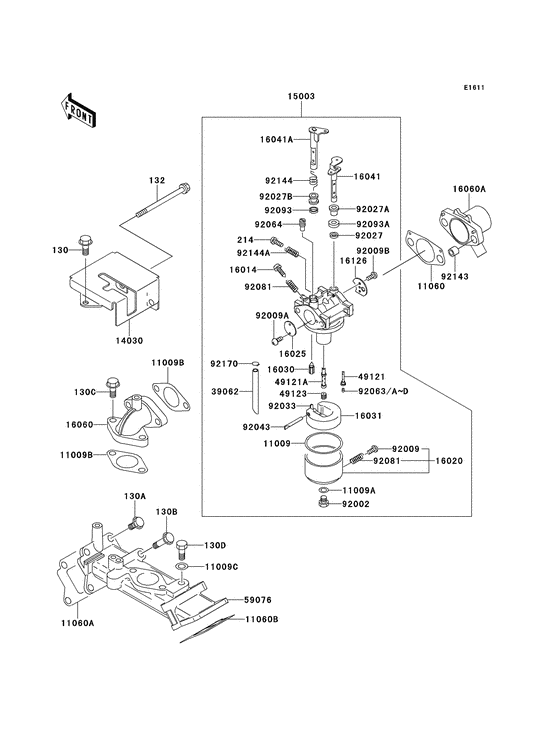

Carburetor (- af620a-509264) Diagram Kawasaki KAF620 Mule 2510 4X4
- Model code
- KAF620-A1
- Engine Capacity
- 620
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 2510 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-2024 GASKETGasket,float chamber; |
11009-2024 |
from US $2.40 |
||
|
11009A
|
11009A
11009-2087 GASKET |
11009-2087 |
US $1.35 |
||
| replacement | |||||
|
11009A
|
11009A
11009-2025 GASKET |
11009-2025 |
from US $1.35 |
||
|
11009B
|
11009B
11009-2944 GASKET |
11009-2944 |
US $0.79 |
||
| replacement | |||||
|
11009B
|
11009B
11060-2339 GASKET |
11060-2339 |
from US $1.61 |
||
|
11009C
|
11009C
11009-3028 GASKET-CHECK VALVE |
11009-3028 |
from US $0.93 |
||
|
11060
|
11060
11060-2086 GASKET-INTAKE PIPE |
11060-2086 |
from US $2.42 |
||
|
11060A
|
11060A
11060-2087 GASKET-INTAKE MANIFGasket,intake manifold; |
11060-2087 |
from US $2.66 |
||
|
11060B
|
11060B
11060-2088 GASKET-INTAKE MANIFGasket,intake manifold; |
11060-2088 |
from US $2.52 |
||
|
14030
|
14030
14030-2058-9H COVER-CARBURETOR,F.BLCover-carburetor,f.black; |
14030-2058-9H |
from US $14.36 |
||
|
15003
|
15003
15003-2260 CARBURETOR-ASSY. |
15003-2260 |
from US $337.18 |
||
|
16014
|
16014
16014-2067 SCREW-PILOT AIR |
16014-2067 |
from US $15.16 |
||
|
16020
|
16020
16020-2094 CHAMBER-FLOAT |
16020-2094 |
US $40.57 |
||
| replacement | |||||
|
16020
|
16020
16020-2109 CHAMBER-FLOAT |
16020-2109 |
from US $30.24 |
||
|
16025
|
16025
16025-2168 VALVE-THROTTLE |
16025-2168 |
US $9.26 |
||
|
16030
|
16030
16030-2067 VALVE-NEEDLE |
16030-2067 |
from US $18.11 |
||
|
16031
|
16031
16031-2066 FLOAT |
16031-2066 |
from US $24.04 |
||
|
16041
|
16041
16041-2220 SHAFT-CARBURETOR |
16041-2220 |
US $24.33 |
||
|
16041A
|
16041A
16041-2229 SHAFT-CARBURETOR |
16041-2229 |
US $33.32 |
||
|
16060
|
16060
16060-2175 PIPE-INTAKE |
16060-2175 |
from US $35.22 |
||
|
16060A
|
16060A
16060-2176
PIPE-INTAKE
|
16060-2176 |
— | ||
|
16126
|
16126
16126-2193 VALVE,CHOKEValve,choke; |
16126-2193 |
US $8.51 |
||
|
39062
|
39062
39062-2060 HOSE-COOLING |
39062-2060 |
from US $2.72 |
||
|
49121
|
49121
49121-2101 NOZZLE-MAIN |
49121-2101 |
from US $24.33 |
||
|
49121A
|
49121A
49121-2185 NOZZLE-MAIN |
49121-2185 |
from US $33.57 |
||
|
49123
|
49123
49123-2065 HOLDER-MAIN JET |
49123-2065 |
from US $14.97 |
||
|
59076
|
59076
59076-2058 Manifold-intake |
59076-2058 |
US $50.03 |
||
| replacement | |||||
|
59076
|
59076
59076-2076 MANIFOLD-INTAKE |
59076-2076 |
from US $46.87 |
||
|
92002
|
92002
92002-2009 BOLTBolt,main jet; |
92002-2009 |
from US $4.69 |
||
|
92009
|
92009
92009-2015 SCREW,DRAINScrew,drain; |
92009-2015 |
from US $3.02 |
||
|
92009A
|
92009A
92009-2080 SCREWScrew,throttle valve; |
92009-2080 |
US $1.44 |
||
| replacement | |||||
|
92009A
|
92009A
223B0306
SCREW-PAN-WS-CROS,3X6
Screw,throttle valve; |
223B0306 |
— | ||
|
92009B
|
92009B
92009-2081 SCREWScrew,choke valve; |
92009-2081 |
from US $1.16 |
||
|
92027
|
92027
92027-2003 COLLAR |
92027-2003 |
from US $2.40 |
||
|
92027A
|
92027A
92027-2004 COLLAR |
92027-2004 |
from US $3.02 |
||
|
92027B
|
92027B
92027-2025 RING-BUSHINGCollar,throttle shaft; |
92027-2025 |
from US $2.58 |
||
|
92033
|
92033
92033-2067 CLIP |
92033-2067 |
from US $2.42 |
||
|
92043
|
92043
92043-2006 PIN,FLOATPin,float; |
92043-2006 |
from US $2.11 |
||
|
92063
|
92063
92063-141 JET-MAIN #115Jet-main,#115; |
92063-141 |
US $7.26 |
||
|
92063A
|
92063A
92063-2010 JET-MAIN #112.5Jet-main,#112.5; (option) |
92063-2010 |
US $6.44 |
||
|
92063B
|
92063B
92063-2099 JET-MAIN #110Jet-main,#110; (option) |
92063-2099 |
US $7.26 |
||
|
92063C
|
92063C
92063-2100 JET-MAIN #107.5Jet-main,#107.5; (option) |
92063-2100 |
US $6.58 |
||
|
130
|
130
130B0610
BOLT-FLANGED,6X10
Bolt-flanged,6x10; |
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130AA0610 |
from US $0.21 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130BA0610 |
from US $0.70 |
||
|
130A
|
130A
130B0620
BOLT-FLANGED,6X20
Bolt-flanged,6x20; |
130B0620 |
— | ||
| replacements | |||||
|
130A
|
130A
130CA0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130CA0620 |
from US $0.98 |
||
|
130A
|
130A
130AA0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130AA0620 |
from US $1.06 |
||
|
130B
|
130B
130B0645 BOLT-FLANGEDBolt-flanged,6x45; |
130B0645 |
US $1.14 |
||
| replacements | |||||
|
130B
|
130B
130BA0645 BOLT-FLANGEDBolt-flanged,6x45; |
130BA0645 |
from US $1.12 |
||
|
130B
|
130B
130AA0645 BOLT-FLANGEDBolt-flanged,6x45; |
130AA0645 |
from US $1.12 |
||
|
130C
|
130C
130B0820 BOLT-FLANGEDBolt-flanged,8x20; |
130B0820 |
US $6.50 |
||
| replacements | |||||
|
130C
|
130C
130AA0820 BOLT-FLANGEDBolt-flanged,8x20; |
130AA0820 |
from US $0.39 |
||
|
130C
|
130C
130BA0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130BA0820 |
from US $1.20 |
||
|
130D
|
130D
130C0812
BOLT-FLANGED
Bolt-flanged,8x12,black; |
130C0812 |
— | ||
| replacements | |||||
|
130D
|
130D
130BB0812 BOLT-FLANGEDBolt-flanged,8x12,black; |
130BB0812 |
from US $0.39 |
||
|
130D
|
130D
130AB0812 BOLT-FLANGEDBolt-flanged,8x12,black; |
130AB0812 |
from US $0.44 |
||
|
132
|
132
132J0880 BOLT-FLANGED-SMALL |
132J0880 |
US $1.77 |
||
| replacement | |||||
|
132
|
132
132BB0880 BOLT-FLANGED-SMALL |
132BB0880 |
from US $1.51 |
||
|
214
|
214
214B0414 SCREW-PAN+- |
214B0414 |
US $0.44 |
||
| replacement | |||||
|
214
|
214
214AA0414 SCREW-PAN+- |
214AA0414 |
from US $0.39 |
||
|
92063D
|
92063D
92063-2142 JET-MAIN,#105Jet-main,#105; (option) |
92063-2142 |
US $5.57 |
||
|
92064
|
92064
92064-2001 JET,PILOT #40 |
92064-2001 |
from US $9.38 |
||
|
92081
|
92081
92081-2009 SPRING |
92081-2009 |
from US $1.51 |
||
|
92093
|
92093
92093-2082 SEAL |
92093-2082 |
from US $1.30 |
||
|
92093A
|
92093A
92093-2101 SEAL |
92093-2101 |
from US $1.37 |
||
|
92143
|
92143
92143-2201 COLLAR,8.2X10X8.5Collar,8.2x10x8.5; |
92143-2201 |
from US $0.46 |
||
|
92144
|
92144
92144-2339 SPRING |
92144-2339 |
from US $2.87 |
||
|
92144A
|
92144A
92144-2342 SPRING |
92144-2342 |
from US $2.58 |
||
|
92170
|
92170
92170-2023 CLAMP |
92170-2023 |
from US $1.10 |
||
