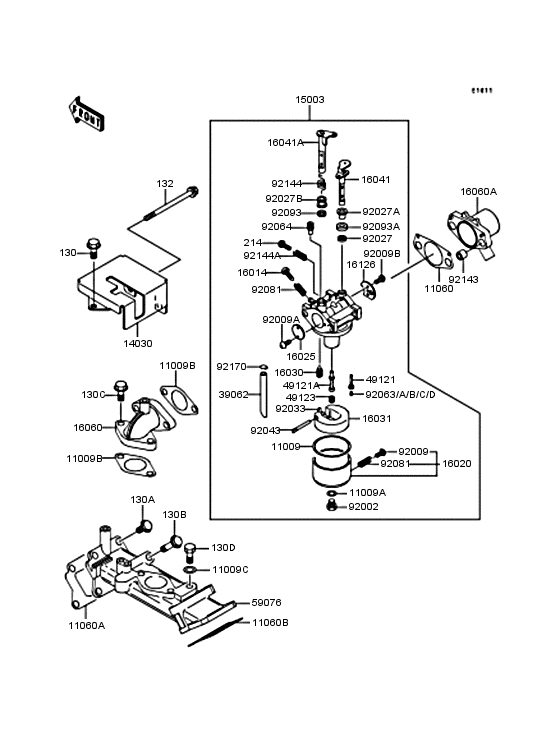

Carburetor Diagram Kawasaki KAF620 Mule 2510 4X4
- Model code
- KAF620-A1
- Engine Capacity
- 620
- Year
- 1994
- Sales region
- Japan
- Colour
- Firecracker Red (B1)
- Frame
- AF620A 600001 - 600350
- Engine
- AF620AE 000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 2510 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0610
BOLT-FLANGED,6X10
ボルト(ツバツキ)，6X10 |
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10ボルト(ツバツキ)，6X10 |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10ボルト(ツバツキ)，6X10 |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130B0620 BOLT-FLANGED,6X20ボルト(ツバツキ)，6X20 |
130B0620 |
US $1.11 |
||
| replacements | |||||
|
130A
|
130A
130CA0620 BOLT-FLANGED,6X20ボルト(ツバツキ)，6X20 |
130CA0620 |
from US $1.11 |
||
|
130A
|
130A
130AA0620 BOLT-FLANGED,6X20ボルト(ツバツキ)，6X20 |
130AA0620 |
from US $1.11 |
||
|
130B
|
130B
130B0645 BOLT-FLANGEDボルト(ツバツキ)，6X45 |
130B0645 |
US $1.17 |
||
| replacements | |||||
|
130B
|
130B
130BA0645 BOLT-FLANGEDボルト(ツバツキ)，6X45 |
130BA0645 |
from US $1.27 |
||
|
130B
|
130B
130AA0645 BOLT-FLANGEDボルト(ツバツキ)，6X45 |
130AA0645 |
from US $1.15 |
||
|
130C
|
130C
130B0820 BOLT-FLANGEDボルト(ツバツキ)，8X20 |
130B0820 |
US $6.70 |
||
| replacements | |||||
|
130C
|
130C
130AA0820 BOLT-FLANGEDボルト(ツバツキ)，8X20 |
130AA0820 |
from US $1.05 |
||
|
130C
|
130C
130BA0820 BOLT-FLANGED,8X20ボルト(ツバツキ)，8X20 |
130BA0820 |
from US $1.43 |
||
|
130D
|
130D
130C0812
BOLT-FLANGED
ボルト(ツバツキ)，8X12 |
130C0812 |
— | ||
| replacements | |||||
|
130D
|
130D
130BB0812 BOLT-FLANGEDボルト(ツバツキ)，8X12 |
130BB0812 |
from US $1.05 |
||
|
130D
|
130D
130AB0812 BOLT-FLANGEDボルト(ツバツキ)，8X12 |
130AB0812 |
from US $1.11 |
||
|
132
|
132
132J0880 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132J0880 |
US $1.82 |
||
| replacement | |||||
|
132
|
132
132BB0880 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BB0880 |
from US $1.56 |
||
|
214
|
214
214B0414 SCREW-PAN+-ナベコネジ(+-アナ) |
214B0414 |
US $0.45 |
||
| replacement | |||||
|
214
|
214
214AA0414 SCREW-PAN+-ナベコネジ(+-アナ) |
214AA0414 |
from US $0.78 |
||
|
92063B
|
92063B
92063-2099 JET-MAIN #110ジエツト(メイン)，#110 |
92063-2099 |
US $7.47 |
||
|
92063C
|
92063C
92063-2100 JET-MAIN #107.5ジエツト(メイン)，#107.5 |
92063-2100 |
US $6.77 |
||
|
92063D
|
92063D
92063-2142 JET-MAIN,#105ジエツト(メイン)，#105 |
92063-2142 |
US $5.72 |
||
|
92064
|
92064
92064-2001 JET,PILOT #40ジエツト(パイロツト) |
92064-2001 |
from US $9.65 |
||
|
92081
|
92081
92081-2009 SPRINGスプリング |
92081-2009 |
from US $1.56 |
||
|
92093
|
92093
92093-2082 SEALシ-ル |
92093-2082 |
from US $1.40 |
||
|
92093A
|
92093A
92093-2101 SEALシ-ル |
92093-2101 |
from US $2.17 |
||
|
92143
|
92143
92143-2201 COLLAR,8.2X10X8.5カラ-，8.2X10X8.5 |
92143-2201 |
from US $1.24 |
||
|
92144
|
92144
92144-2339 SPRINGスプリング |
92144-2339 |
from US $2.95 |
||
|
92144A
|
92144A
92144-2342 SPRINGスプリング |
92144-2342 |
from US $2.65 |
||
|
92170
|
92170
92170-2023 CLAMPクランプ |
92170-2023 |
from US $1.13 |
||
