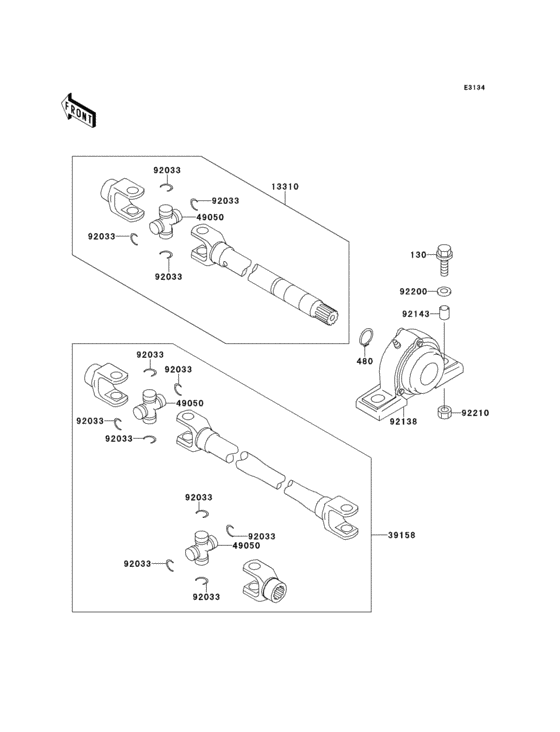

Drive shaft(propeller) Diagram Kawasaki KAF620 Mule 2510 4X4
- Model code
- KAF620-A6
- Engine Capacity
- 620
- Year
- 2000
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 2510 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J1030
BOLT-FLANGED,10X30,BL
|
130J1030 |
— | ||
| replacements | |||||
|
130
|
130
130BB1030 BOLT-FLANGED,10X30,BL |
130BB1030 |
from US $1.43 |
||
|
130
|
130
130CB1030 BOLT-FLANGED,10X30,BL |
130CB1030 |
from US $1.43 |
||
|
480
|
480
480J2500 CIRCLIP-TYPE-C,25MM |
480J2500 |
from US $1.27 |
||
|
13310
|
13310
13310-1025 SHAFT-ASSY,FRONT DRIV |
13310-1025 |
from US $364.57 |
||
|
39158
|
39158
39158-1107 SHAFT-ASSY-DRIVE |
39158-1107 |
US $400.09 |
||
| replacement | |||||
|
39158
|
39158
39158-0304 SHAFT-ASSY-DRIVE |
39158-0304 |
from US $465.05 |
||
|
49050
|
49050
49050-1002 SPIDER |
49050-1002 |
from US $94.25 |
||
|
92033
|
92033
92033-1030 RING-SNAP |
92033-1030 |
from US $2.33 |
||
|
92138
|
92138
92138-1052 BEARING-COMP |
92138-1052 |
from US $90.98 |
||
|
92143
|
92143
92143-1634 COLLAR,10.3X12.7X15 |
92143-1634 |
from US $4.82 |
||
|
92200
|
92200
92200-1042 WASHER,10.5X19X2.3 |
92200-1042 |
from US $2.53 |
||
|
92210
|
92210
92210-1204 NUT,LOCK,10MM |
92210-1204 |
from US $5.59 |
||
