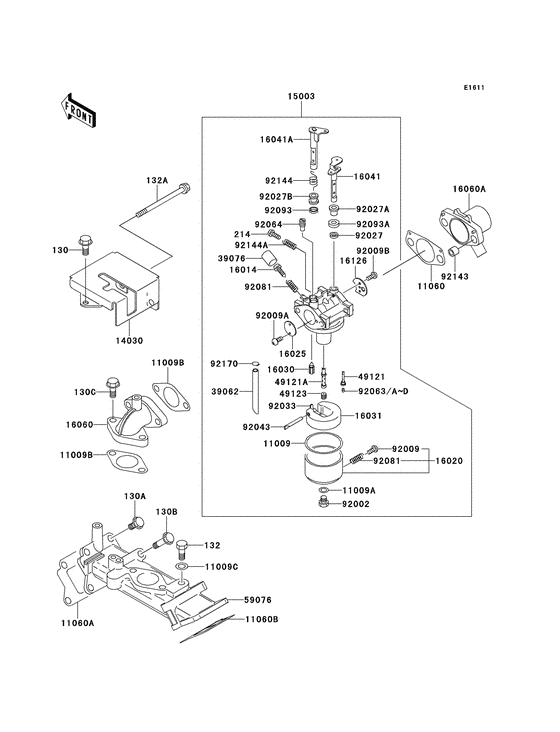

Carburetor Diagram Kawasaki KAF620 Mule 2520 Turf
- Model code
- KAF620-B6
- Engine Capacity
- 620
- Year
- 2000
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2520 Turf
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-2024 GASKETGasket,float chamber; |
11009-2024 |
from US $2.40 |
||
|
11009A
|
11009A
11009-2025 GASKET |
11009-2025 |
from US $1.82 |
||
|
11009B
|
11009B
11009-2944 GASKET |
11009-2944 |
US $0.81 |
||
| replacement | |||||
|
11009B
|
11009B
11060-2339 GASKET |
11060-2339 |
from US $1.80 |
||
|
11009C
|
11009C
11009-3028 GASKET-CHECK VALVE |
11009-3028 |
from US $1.07 |
||
|
11060
|
11060
11060-2086 GASKET-INTAKE PIPE |
11060-2086 |
from US $2.62 |
||
|
11060A
|
11060A
11060-2087 GASKET-INTAKE MANIFGasket,intake manifold; |
11060-2087 |
from US $2.74 |
||
|
11060B
|
11060B
11060-2088 GASKET-INTAKE MANIFGasket,intake manifold; |
11060-2088 |
from US $2.59 |
||
|
14030
|
14030
14030-2058-9H COVER-CARBURETOR,F.BLCover-carburetor,f.black; |
14030-2058-9H |
from US $14.77 |
||
|
15003
|
15003
15003-2509 CARBURETOR-ASSY |
15003-2509 |
from US $346.81 |
||
|
16014
|
16014
16014-2076 SCREW-PILOT AIR |
16014-2076 |
from US $10.43 |
||
|
16020
|
16020
16020-2094 CHAMBER-FLOAT |
16020-2094 |
US $41.72 |
||
| replacement | |||||
|
16020
|
16020
16020-2109 CHAMBER-FLOAT |
16020-2109 |
from US $31.10 |
||
|
16025
|
16025
16025-2168 VALVE-THROTTLE |
16025-2168 |
US $9.52 |
||
|
16030
|
16030
16030-2067 VALVE-NEEDLE |
16030-2067 |
from US $23.09 |
||
|
16031
|
16031
16031-2066 FLOAT |
16031-2066 |
from US $24.72 |
||
|
16041
|
16041
16041-2220 SHAFT-CARBURETOR |
16041-2220 |
US $25.02 |
||
|
16041A
|
16041A
16041-2239 SHAFT-CARBURETOR |
16041-2239 |
US $35.96 |
||
|
16060
|
16060
16060-2175 PIPE-INTAKE |
16060-2175 |
from US $36.23 |
||
|
16060A
|
16060A
16060-2176
PIPE-INTAKE
|
16060-2176 |
— | ||
|
16126
|
16126
16126-2193 VALVE,CHOKEValve,choke; |
16126-2193 |
US $8.75 |
||
|
39062
|
39062
39062-2060 HOSE-COOLING |
39062-2060 |
from US $2.79 |
||
|
39076
|
39076
39076-2053 LIMITER |
39076-2053 |
from US $5.17 |
||
|
49121
|
49121
49121-2101 NOZZLE-MAIN |
49121-2101 |
from US $31.42 |
||
|
49121A
|
49121A
49121-2185 NOZZLE-MAIN |
49121-2185 |
from US $34.53 |
||
|
49123
|
49123
49123-2065 HOLDER-MAIN JET |
49123-2065 |
from US $15.39 |
||
|
59076
|
59076
59076-2062 MANIFOLD-INTAKE |
59076-2062 |
US $51.46 |
||
| replacement | |||||
|
59076
|
59076
59076-2076 MANIFOLD-INTAKE |
59076-2076 |
from US $48.21 |
||
|
92002
|
92002
92002-2009 BOLTBolt,main jet; |
92002-2009 |
from US $4.82 |
||
|
92009
|
92009
92009-2015 SCREW,DRAINScrew,drain; |
92009-2015 |
from US $3.11 |
||
|
92009A
|
92009A
92009-2080 SCREWScrew,throttle valve; |
92009-2080 |
US $1.48 |
||
| replacement | |||||
|
92009A
|
92009A
223B0306
SCREW-PAN-WS-CROS,3X6
Screw,throttle valve; |
223B0306 |
— | ||
|
92009B
|
92009B
92009-2081 SCREWScrew,choke valve; |
92009-2081 |
from US $1.19 |
||
|
92027
|
92027
92027-2003 COLLAR |
92027-2003 |
from US $2.65 |
||
|
92027A
|
92027A
92027-2004 COLLAR |
92027-2004 |
from US $3.11 |
||
|
92027B
|
92027B
92027-2025 RING-BUSHINGCollar,throttle shaft; |
92027-2025 |
from US $2.65 |
||
|
92033
|
92033
92033-2067 CLIP |
92033-2067 |
from US $2.49 |
||
|
92043
|
92043
92043-2006 PIN,FLOATPin,float; |
92043-2006 |
from US $2.17 |
||
|
92063
|
92063
92063-2267 JET-MAINJet-main,#110a; (option) |
92063-2267 |
from US $8.40 |
||
|
92063A
|
92063A
92063-2270 JET-MAIN,#107.5AJet-main,#107.5a; (option) |
92063-2270 |
from US $8.40 |
||
|
92063B
|
92063B
92063-2271 JET-MAIN,#105AJet-main,#105a; (option) |
92063-2271 |
from US $8.40 |
||
|
130
|
130
130B0610
BOLT-FLANGED,6X10
Bolt-flanged,6x10; |
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130B0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130B0620 |
US $1.11 |
||
| replacements | |||||
|
130A
|
130A
130CA0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130CA0620 |
from US $1.11 |
||
|
130A
|
130A
130AA0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130AA0620 |
from US $1.11 |
||
|
130B
|
130B
130B0645 BOLT-FLANGEDBolt-flanged,6x45; |
130B0645 |
US $1.17 |
||
| replacements | |||||
|
130B
|
130B
130BA0645 BOLT-FLANGEDBolt-flanged,6x45; |
130BA0645 |
from US $1.27 |
||
|
130B
|
130B
130AA0645 BOLT-FLANGEDBolt-flanged,6x45; |
130AA0645 |
from US $1.15 |
||
|
130C
|
130C
130B0820 BOLT-FLANGEDBolt-flanged,8x20; |
130B0820 |
US $6.70 |
||
| replacements | |||||
|
130C
|
130C
130AA0820 BOLT-FLANGEDBolt-flanged,8x20; |
130AA0820 |
from US $1.05 |
||
|
130C
|
130C
130BA0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130BA0820 |
from US $1.43 |
||
|
132
|
132
132J0812 BOLT-FLANGED-SMALLBolt-flanged-small,8x12; |
132J0812 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BB0812 BOLT-FLANGED-SMALLBolt-flanged-small,8x12; |
132BB0812 |
from US $1.27 |
||
|
132A
|
132A
132J0880 BOLT-FLANGED-SMALL |
132J0880 |
US $1.82 |
||
| replacement | |||||
|
132A
|
132A
132BB0880 BOLT-FLANGED-SMALL |
132BB0880 |
from US $1.56 |
||
|
214
|
214
214B0414 SCREW-PAN+- |
214B0414 |
US $0.45 |
||
| replacement | |||||
|
214
|
214
214AA0414 SCREW-PAN+- |
214AA0414 |
from US $0.78 |
||
|
92063C
|
92063C
92063-2305 JET MAIN, #112.5Jet-main,#112.5a; (option) |
92063-2305 |
from US $8.40 |
||
|
92063D
|
92063D
92063-2314 JET-MAIN,#115AJet-main,#115a; |
92063-2314 |
US $14.38 |
||
|
92064
|
92064
92064-2113 JET-PILOT,#40Jet-pilot,#40; |
92064-2113 |
from US $9.65 |
||
|
92081
|
92081
92081-2009 SPRING |
92081-2009 |
from US $1.56 |
||
|
92093
|
92093
92093-2082 SEAL |
92093-2082 |
from US $1.40 |
||
|
92093A
|
92093A
92093-2101 SEAL |
92093-2101 |
from US $2.17 |
||
|
92143
|
92143
92143-2201 COLLAR,8.2X10X8.5Collar,8.2x10x8.5; |
92143-2201 |
from US $1.24 |
||
|
92144
|
92144
92144-2339 SPRING |
92144-2339 |
from US $2.95 |
||
|
92144A
|
92144A
92144-2342 SPRING |
92144-2342 |
from US $2.65 |
||
|
92170
|
92170
92170-2023 CLAMP |
92170-2023 |
from US $1.13 |
||
