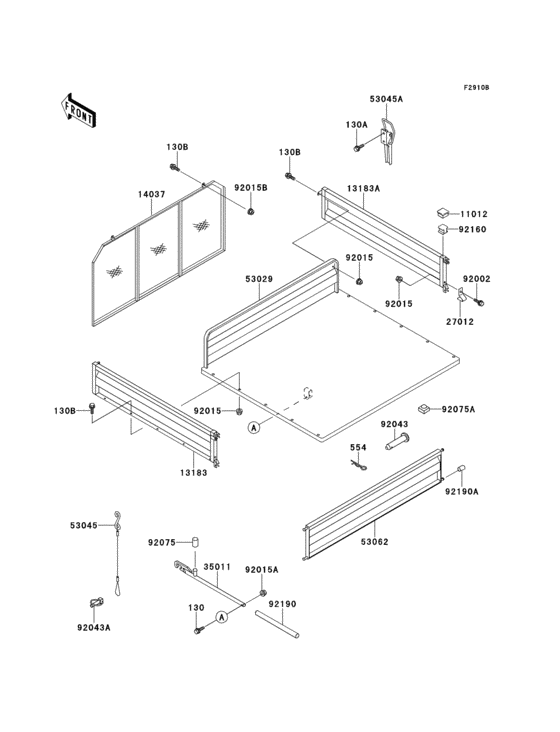

Accessory(carrier) Diagram Kawasaki KAF620 Mule 2520 Turf
- Model code
- KAF620-B6
- Engine Capacity
- 620
- Year
- 2000
- Sales region
- USA
- Colour
- Hunter Green (B9)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2520 Turf
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0630 BOLT-FLANGED,6X30 |
130H0630 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0630 BOLT-FLANGED,6X30 |
130BA0630 |
from US $0.95 |
||
|
130A
|
130A
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
130B
|
130B
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130B
|
130B
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/M |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/M |
554DA1200 |
from US $2.17 |
||
|
11012
|
11012
11012-1784 CAP |
11012-1784 |
from US $7.62 |
||
|
13183
|
13183
13183-1893-B9 PLATE,CARR,SIDE,LH,HG |
13183-1893-B9 |
US $244.93 |
||
|
13183A
|
13183A
13183-1895-B9 PLATE,CARR,SIDE,RH,HG |
13183-1895-B9 |
US $244.93 |
||
|
14037
|
14037
14037-1265 Screen,rear guard |
14037-1265 |
US $149.81 |
||
| replacement | |||||
|
14037
|
14037
14037-0016-10 SCREEN,REAR GUARD,BLA |
14037-0016-10 |
US $234.28 |
||
|
27012
|
27012
27012-1406 HOOK,TAIL GATE |
27012-1406 |
US $4.97 |
||
| replacement | |||||
|
27012
|
27012
27012-0022 HOOK,TAIL GATE |
27012-0022 |
US $8.14 |
||
|
35011
|
35011
35011-1648 STAY,CARRIER,STOPPER |
35011-1648 |
from US $19.90 |
||
|
53029
|
53029
53029-1157-B9 CARRIER,H.GREEN |
53029-1157-B9 |
US $1,155.71 |
||
| replacement | |||||
|
53029
|
53029
53029-0006-B9 CARRIER,H.GREEN |
53029-0006-B9 |
US $1,119.29 |
||
|
53045
|
53045
53045-1060 HOOK-ASSY,TALE GATE |
53045-1060 |
from US $25.04 |
||
|
53045A
|
53045A
53045-1063 HOOK-ASSY |
53045-1063 |
from US $16.65 |
||
|
53062
|
53062
53062-1004-B9 GATE-TAIL,H.GREEN |
53062-1004-B9 |
US $424.31 |
||
|
92002
|
92002
92002-1182 BOLT,8X50 |
92002-1182 |
from US $5.70 |
||
|
92015
|
92015
92015-1408 NUT,FLANGED,8MM |
92015-1408 |
from US $4.34 |
||
| replacement | |||||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MM |
92210-0004 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92015B
|
92015B
92015-1696 NUT,FLANGED,LOCK,8MM |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015B
|
92015B
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
||
|
92043
|
92043
92043-1428 PIN,12X65 |
92043-1428 |
from US $6.22 |
||
|
92043A
|
92043A
92043-1490 PIN |
92043-1490 |
from US $8.71 |
||
|
92075
|
92075
92075-1817 DAMPER |
92075-1817 |
from US $3.64 |
||
|
92075A
|
92075A
92075-1882 DAMPER,SEAT |
92075-1882 |
from US $5.39 |
||
|
92160
|
92160
92160-1191 DAMPER |
92160-1191 |
from US $3.89 |
||
|
92190
|
92190
92190-1401 TUBE,13X16X200 |
92190-1401 |
from US $2.95 |
||
|
92190A
|
92190A
92190-1467
TUBE,8X10X15
|
92190-1467 |
— | ||
