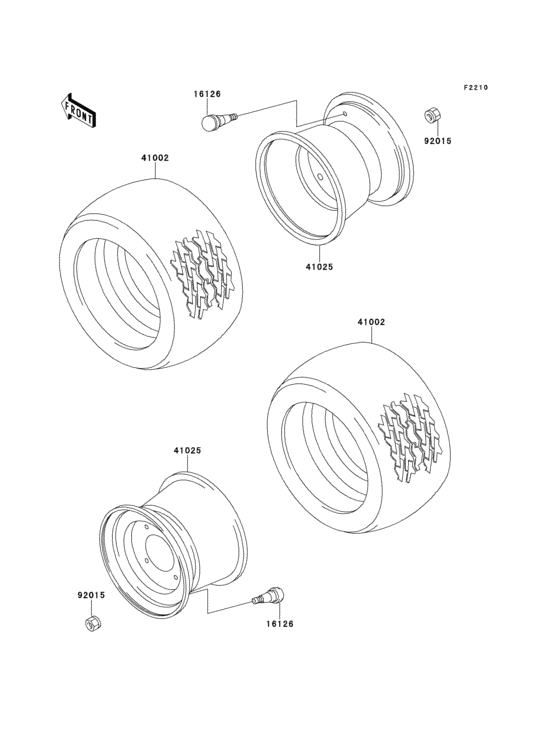

Wheels/tires Diagram Kawasaki KAF620 Mule 2520 Turf
- Model code
- KAF620-B6
- Engine Capacity
- 620
- Year
- 2000
- Sales region
- USA
- Colour
- Hunter Green (B9)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2520 Turf
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41002
|
41002
41002-1756
Tire,20x10.00-10nhs(g
|
41002-1756 |
— | ||
| replacement | |||||
|
41002
|
41002
41009-014-0A
TURF / HARD SFC TIRE
|
41009-014-0A |
— | ||
|
41025
|
41025
41025-1236-5A Rim,10x8.5,f.silver |
41025-1236-5A |
US $92.99 |
||
| replacement | |||||
|
41025
|
41025
41025-7504-5A RIM,10X8.5AT,F.SILVER |
41025-7504-5A |
US $172.14 |
||
|
92015
|
92015
92015-1706 NUT |
92015-1706 |
from US $4.75 |
||
