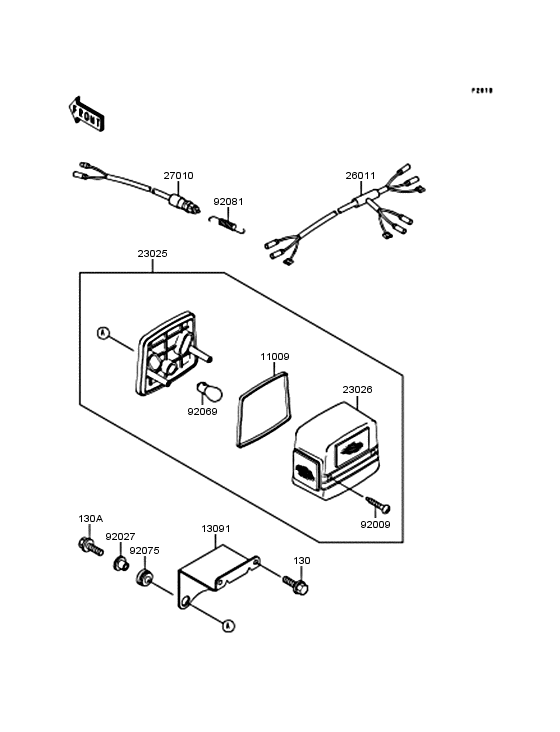

Accessory (テールランプ) Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-C3
- Engine Capacity
- 620
- Year
- 1997
- Sales region
- Japan
- Colour
- 00
- Frame
- AF620C 601201 -
- Engine
- AF620AE 000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0616
BOLT-FLANGED,6X16
ボルト(ツバツキ)，6X16 |
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16ボルト(ツバツキ)，6X16 |
130BB0616 |
from US $0.95 |
||
|
130A
|
130A
130J0620
BOLT-FLANGED
ボルト(ツバツキ) |
130J0620 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0620 BOLT-FLANGEDボルト(ツバツキ) |
130BB0620 |
from US $0.78 |
||
|
130A
|
130A
130CB0620 BOLT-FLANGED,6X20,BLCボルト(ツバツキ) |
130CB0620 |
from US $1.11 |
||
|
11009
|
11009
11009-1215 GASKET,TAIL LAMP LENSガスケツト，テ-ル ランプ |
11009-1215 |
from US $6.34 |
||
|
13091
|
13091
13091-1743 HOLDER,TAIL LAMPホルダ，テ-ル ランプ |
13091-1743 |
from US $9.33 |
||
|
23025
|
23025
23025-1042 LAMP-TAILランプ(テ-ル) |
23025-1042 |
from US $81.96 |
||
|
23026
|
23026
23026-1019 LENS,TAIL LAMPレンズ，テ-ル ランプ |
23026-1019 |
from US $39.66 |
||
|
26011
|
26011
26011-1441 WIRE-LEAD,TAIL LAMPワイヤ(リ-ド)，テ-ル ランプ |
26011-1441 |
US $29.34 |
||
|
27010
|
27010
27010-1181 SWITCH,REAR BRAKEスイツチ，ブレ-キ ランプ |
27010-1181 |
US $25.97 |
||
| replacement | |||||
|
27010
|
27010
27010-1475 SWITCH,REAR BRAKEスイツチ，ブレ-キ ランプ |
27010-1475 |
from US $22.90 |
||
|
92009
|
92009
92009-1069 SCREW,TAPPING,4X25スクリユ-，タツピング，4X25 |
92009-1069 |
from US $2.53 |
||
|
92027
|
92027
92027-194 COLLARカラ-，L=11.1 |
92027-194 |
from US $4.09 |
||
|
92069
|
92069
92069-1011 BULB,12V20/5Wバルブ，12V20/5W |
92069-1011 |
from US $4.59 |
||
|
92075
|
92075
92075-277 DAMPER RUBBERダンパ |
92075-277 |
from US $3.60 |
||
|
92081
|
92081
92081-1466 SPRING,HOOK RETURNスプリング |
92081-1466 |
from US $4.98 |
||
