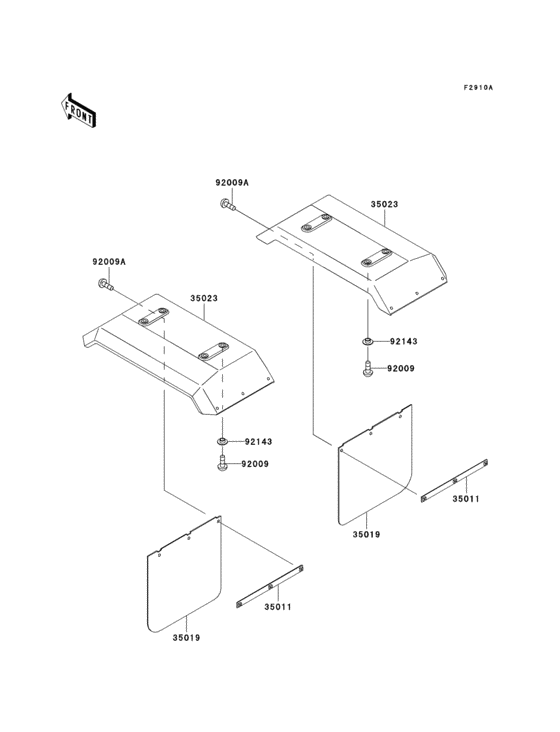

Accessory(rear fenders) Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-D1
- Engine Capacity
- 620
- Year
- 1990
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35011
|
35011
35011-1669
Stay,rear flap
|
35011-1669 |
— | ||
|
35019
|
35019
35019-1244 FLAP,RR |
35019-1244 |
US $43.78 |
||
|
35023
|
35023
35023-1298 FENDER REAR |
35023-1298 |
from US $64.87 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1288
SCREW
|
92009-1288 |
— | ||
| replacements | |||||
|
92009A
|
92009A
92009-1662 SCREW |
92009-1662 |
from US $2.53 |
||
|
92009A
|
92009A
92172-0004 SCREW,6X14 |
92172-0004 |
from US $1.27 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
