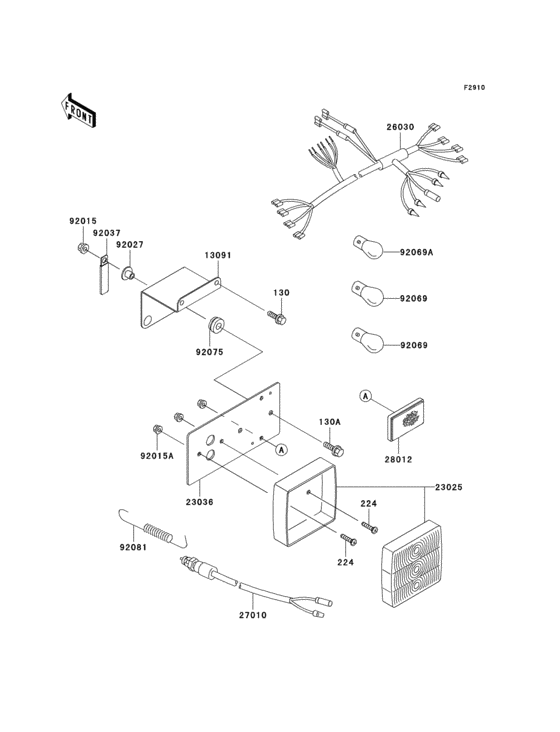

Accessory(taillights) Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-D1
- Engine Capacity
- 620
- Year
- 1990
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0616
BOLT-FLANGED,6X16
|
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
130A
|
130A
130J0620
BOLT-FLANGED
|
130J0620 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130A
|
130A
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
224
|
224
224C0520 SCREW-PAN-WP-CROS,5X2 |
224C0520 |
from US $1.27 |
||
| replacement | |||||
|
224
|
224
224AB0520 SCREW-PAN-WP-CROS,5X2 |
224AB0520 |
from US $0.94 |
||
|
13091
|
13091
13091-1743 HOLDER,TAIL LAMP |
13091-1743 |
from US $9.33 |
||
|
23036
|
23036
23036-1131
Bracket-tail lamp
|
23036-1131 |
— | ||
|
26030
|
26030
26030-1249
Harness,rr
|
26030-1249 |
— | ||
|
27010
|
27010
27010-1181 SWITCH,REAR BRAKE |
27010-1181 |
US $25.97 |
||
| replacement | |||||
|
27010
|
27010
27010-1475 SWITCH,REAR BRAKE |
27010-1475 |
from US $22.90 |
||
|
28012
|
28012
28012-1054
Reflector-reflex,rr
|
28012-1054 |
— | ||
| replacement | |||||
|
28012
|
28012
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
92015
|
92015
92015-1237 NUT,FLANGED,6MM,BLACK |
92015-1237 |
US $2.84 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1328 NUT,FLANGED,5MM |
92015-1328 |
from US $3.10 |
||
| replacement | |||||
|
92015A
|
92015A
92210-0007 NUT,FLANGED,5MM |
92210-0007 |
from US $1.61 |
||
|
92027
|
92027
92027-194 COLLAR |
92027-194 |
from US $4.09 |
||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92075
|
92075
92075-277 DAMPER RUBBER |
92075-277 |
from US $3.60 |
||
|
92081
|
92081
92081-1466 SPRING,HOOK RETURN |
92081-1466 |
from US $4.98 |
||
