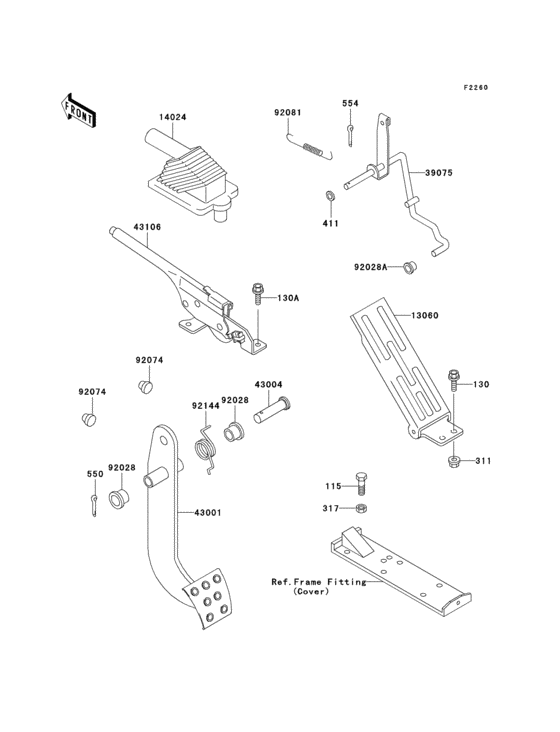

Brake pedal Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-D1
- Engine Capacity
- 620
- Year
- 1990
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115D0840 BOLT-SMALL-UPSET,8X40 |
115D0840 |
US $5.02 |
||
| replacement | |||||
|
115
|
115
115AA0840 BOLT-SMALL-UPSET,8X40 |
115AA0840 |
from US $1.09 |
||
|
130
|
130
130C0612
BOLT-FLANGED,6X12
|
130C0612 |
— | ||
| replacements | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130
|
130
130AB0612 BOLT-FLANGED,6X12 |
130AB0612 |
from US $1.02 |
||
|
130A
|
130A
130D0816 BOLT-FLANGED |
130D0816 |
US $1.33 |
||
| replacement | |||||
|
130A
|
130A
130AA0816 BOLT-FLANGED |
130AA0816 |
from US $1.24 |
||
|
311
|
311
311C0600 NUT-HEX,6MM |
311C0600 |
from US $0.18 |
||
| replacement | |||||
|
311
|
311
311AB0600 NUT-HEX,6MM |
311AB0600 |
from US $0.75 |
||
|
317
|
317
317H0800 NUT-HEX-SMALL,8MM |
317H0800 |
US $1.48 |
||
| replacement | |||||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MM |
317BA0800 |
from US $0.95 |
||
|
411
|
411
411E1000 WASHER-PLAIN |
411E1000 |
US $0.45 |
||
| replacement | |||||
|
411
|
411
411AA1000 WASHER-PLAIN,10MM |
411AA1000 |
from US $0.72 |
||
|
550
|
550
550D2525 PIN-COTTER,2.5X25 |
550D2525 |
from US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA2525 PIN-COTTER,2.5X25 |
550AA2525 |
from US $0.63 |
||
|
554
|
554
554A1000
PIN-SNAP,10MM
|
554A1000 |
— | ||
| replacement | |||||
|
554
|
554
554DA1000 PIN-SNAP,10MM |
554DA1000 |
from US $0.91 |
||
|
13060
|
13060
13060-1061 PEDAL,THROTTLE |
13060-1061 |
from US $30.01 |
||
| replacement | |||||
|
13060
|
13060
13060-0023 PEDAL,THROTTLE |
13060-0023 |
from US $27.84 |
||
|
14024
|
14024
14024-1785 COVER,PARKING LEVER |
14024-1785 |
US $85.64 |
||
| replacement | |||||
|
14024
|
14024
92072-1195 BAND,L=185 |
92072-1195 |
from US $2.07 |
||
|
39075
|
39075
39075-1057 LEVER-THROTTLE |
39075-1057 |
from US $47.28 |
||
|
43001
|
43001
43001-1320 LEVER-BRAKE,PEDAL |
43001-1320 |
from US $50.23 |
||
|
43004
|
43004
43004-1128 SHAFT-BRAKE |
43004-1128 |
from US $12.12 |
||
|
43106
|
43106
43106-1001 LEVER-ASSY-PARKING BR |
43106-1001 |
US $134.87 |
||
|
92028
|
92028
92028-1571 BUSHING |
92028-1571 |
from US $6.54 |
||
|
92028A
|
92028A
92028-1601 BUSHING,THROTTLE LEVE |
92028-1601 |
from US $2.92 |
||
|
92074
|
92074
92074-028 PLUG,RUBBER |
92074-028 |
from US $2.85 |
||
|
92081
|
92081
92081-1922 SPRING |
92081-1922 |
from US $3.27 |
||
|
92144
|
92144
92144-1536 SPRING,BRAKE PEDAL RE |
92144-1536 |
from US $5.13 |
||
