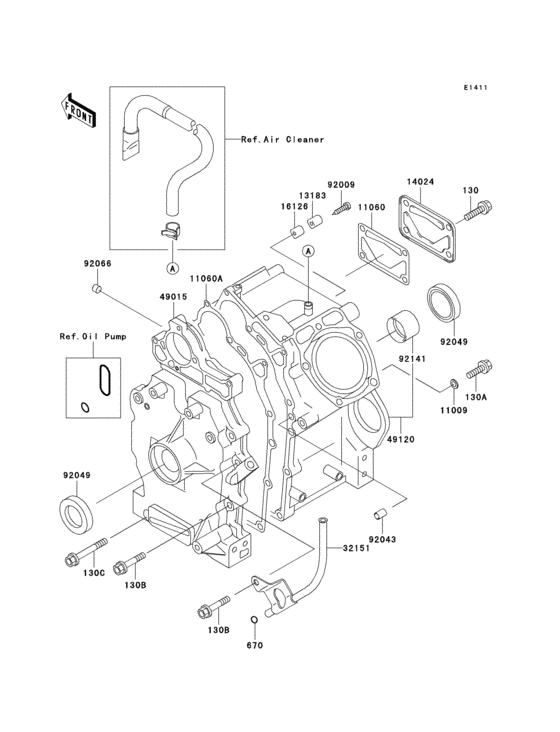

Crankcase Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-D1
- Engine Capacity
- 620
- Year
- 1990
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0816 BOLT-FLANGED |
130B0816 |
US $6.70 |
||
| replacements | |||||
|
130
|
130
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
130
|
130
130AA0816 BOLT-FLANGED |
130AA0816 |
from US $1.24 |
||
|
130A
|
130A
130C0812
BOLT-FLANGED
|
130C0812 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0812 BOLT-FLANGED |
130BB0812 |
from US $1.05 |
||
|
130A
|
130A
130AB0812 BOLT-FLANGED |
130AB0812 |
from US $1.11 |
||
|
130B
|
130B
130G0845 BOLT-FLANGED |
130G0845 |
from US $1.21 |
||
| replacement | |||||
|
130B
|
130B
130BA0845 BOLT-FLANGED |
130BA0845 |
from US $1.43 |
||
|
130C
|
130C
130G0860 BOLT-FLANGED |
130G0860 |
from US $1.24 |
||
| replacement | |||||
|
130C
|
130C
130BA0860 BOLT-FLANGED |
130BA0860 |
from US $1.56 |
||
|
670
|
670
670B2010 0 RING, 10MM |
670B2010 |
from US $1.87 |
||
|
11009
|
11009
11009-3028 GASKET-CHECK VALVE |
11009-3028 |
from US $1.07 |
||
|
11060
|
11060
11060-2089 GASKET-CRNKCASE CVR |
11060-2089 |
from US $3.11 |
||
|
11060A
|
11060A
11060-2284 GASKET,CRANKCASE COVE |
11060-2284 |
US $18.43 |
||
| replacements | |||||
|
11060A
|
11060A
11060-2449 GASKET,CRANKCASE COVE |
11060-2449 |
from US $16.33 |
||
|
11060A
|
11060A
11061-1680 Gasket,Crankcase Cove |
11061-1680 |
US $19.98 |
||
|
13183
|
13183
13183-2120 PLATE |
13183-2120 |
from US $0.75 |
||
|
14024
|
14024
14024-2292 COVER |
14024-2292 |
from US $3.57 |
||
|
16126
|
16126
16126-2146 VALVE |
16126-2146 |
from US $0.97 |
||
|
32151
|
32151
32151-2010-9H PIPE |
32151-2010-9H |
US $25.69 |
||
| replacement | |||||
|
32151
|
32151
32151-2032-9H PIPE |
32151-2032-9H |
from US $28.77 |
||
|
49015
|
49015
49015-6132 Cover-crankcase |
49015-6132 |
US $414.68 |
||
| replacement | |||||
|
49015
|
49015
49015-6324 COVER-CRANKCASE |
49015-6324 |
from US $360.81 |
||
|
49120
|
49120
49120-6075
Crankcase-comp
|
49120-6075 |
— | ||
| replacements | |||||
|
49120
|
49120
13271-2054 PLATE |
13271-2054 |
from US $1.24 |
||
|
49120
|
49120
49120-2287
Crankcase-comp
|
49120-2287 |
— | ||
|
49120
|
49120
49120-0847 CRANKCASE-COMP |
49120-0847 |
from US $883.35 |
||
|
49120
|
49120
49120-6201 CRANKCASE-COMP |
49120-6201 |
US $1,173.37 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14 |
92043-1037 |
from US $0.97 |
||
|
92049
|
92049
92049-2110 SEAL-OIL |
92049-2110 |
US $5.38 |
||
| replacement | |||||
|
92049
|
92049
92049-2112 SEAL-OIL |
92049-2112 |
from US $7.85 |
||
|
92066
|
92066
92066-2068 PLUG |
92066-2068 |
US $1.89 |
||
| replacement | |||||
|
92066
|
92066
92066-1013 PLUG |
92066-1013 |
from US $1.90 |
||
|
92141
|
92141
92141-2110 BEARING-PLANE |
92141-2110 |
US $6.55 |
||
| replacement | |||||
|
92141
|
92141
92141-2122 BEARING-PLANE |
92141-2122 |
from US $8.64 |
||
