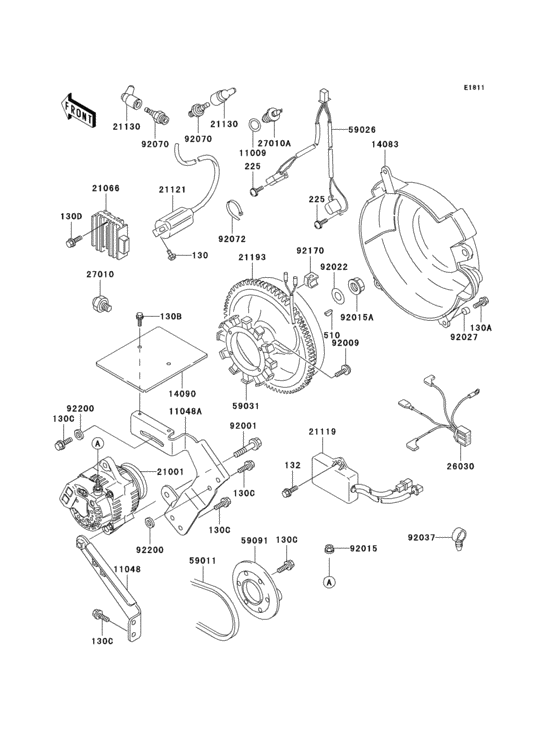

Generator/ignition coil Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-D1
- Engine Capacity
- 620
- Year
- 1990
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0520 BOLT-FLANGED |
130B0520 |
US $0.47 |
||
| replacements | |||||
|
130
|
130
130CA0520 BOLT-FLANGED,5X20 |
130CA0520 |
from US $0.79 |
||
|
130
|
130
130AA0520 BOLT-FLANGED |
130AA0520 |
from US $0.94 |
||
|
130A
|
130A
130B0616
BOLT-FLANGED,6X16
|
130B0616 |
— | ||
| replacements | |||||
|
130A
|
130A
130AA0616 BOLT-FLANGED,6X16 |
130AA0616 |
from US $0.88 |
||
|
130A
|
130A
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
130B
|
130B
130C0608
BOLT-FLANGED
|
130C0608 |
— | ||
| replacements | |||||
|
130B
|
130B
130BB0608 BOLT-FLANGED,6X8 |
130BB0608 |
from US $1.11 |
||
|
130B
|
130B
130AB0608 BOLT-FLANGED |
130AB0608 |
US $4.45 |
||
|
130C
|
130C
130H0820 BOLT-FLANGED,8X20 |
130H0820 |
from US $1.74 |
||
| replacement | |||||
|
130C
|
130C
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
130D
|
130D
130J0620
BOLT-FLANGED
|
130J0620 |
— | ||
| replacements | |||||
|
130D
|
130D
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130D
|
130D
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
132
|
132
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132
|
132
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
225
|
225
225B0414 SCREW-PAN-WSP-CROS |
225B0414 |
US $0.45 |
||
| replacement | |||||
|
225
|
225
225AA0414 SCREW-PAN-WSP-CROS |
225AA0414 |
from US $0.94 |
||
|
510
|
510
510A5100 WOODRUFF KEY |
510A5100 |
from US $3.40 |
||
|
11009
|
11009
11009-2766 GASKET-PRSSR SWITCH |
11009-2766 |
from US $1.56 |
||
|
11048
|
11048
11048-1243 BRACKET,ENGINE,LWR |
11048-1243 |
from US $137.32 |
||
|
11048A
|
11048A
11048-1244 BRACKET,GENERATOR |
11048-1244 |
from US $286.16 |
||
|
14083
|
14083
14083-2053
Cover-flywheel
|
14083-2053 |
— | ||
|
14090
|
14090
14090-1347 COVER,GENERATOR |
14090-1347 |
US $47.36 |
||
| replacement | |||||
|
14090
|
14090
14091-1377 COVER,GENERATOR |
14091-1377 |
from US $31.26 |
||
|
21001
|
21001
21001-1129 GENERATOR |
21001-1129 |
from US $860.03 |
||
|
21066
|
21066
21066-2056 REGULATOR-VOLTAGE |
21066-2056 |
from US $110.88 |
||
|
21119
|
21119
21119-2120 IGNITER |
21119-2120 |
US $306.45 |
||
| replacement | |||||
|
21119
|
21119
21119-2157 IGNITER |
21119-2157 |
from US $272.16 |
||
|
21121
|
21121
21121-2076 COIL-IGNITION |
21121-2076 |
US $63.59 |
||
| replacement | |||||
|
21121
|
21121
21121-2083 COIL-IGNITION |
21121-2083 |
from US $62.83 |
||
|
21130
|
21130
21130-2060 CAP-PLUG |
21130-2060 |
from US $11.02 |
||
|
21193
|
21193
21193-2115 Flywheel-assy |
21193-2115 |
US $386.75 |
||
| replacement | |||||
|
21193
|
21193
21193-0029 FLYWHEEL-ASSY |
21193-0029 |
from US $416.11 |
||
|
26030
|
26030
26030-2140
HARNESS
|
26030-2140 |
— | ||
|
27010
|
27010
27010-1313 SWITCH,OIL PRESSURE |
27010-1313 |
from US $32.42 |
||
|
27010A
|
27010A
27010-2182 SWITCH, TEMPERATURE |
27010-2182 |
from US $25.98 |
||
|
59011
|
59011
59011-2056 BELT,FAN |
59011-2056 |
from US $15.09 |
||
|
59026
|
59026
59026-2062
COIL-PULSING
|
59026-2062 |
— | ||
|
59031
|
59031
59031-2103 COIL-CHARGING |
59031-2103 |
from US $191.29 |
||
|
59091
|
59091
59091-2053-9H PULLEY |
59091-2053-9H |
US $55.60 |
||
| replacement | |||||
|
59091
|
59091
59091-2053 PULLEY |
59091-2053 |
from US $47.59 |
||
|
92001
|
92001
92001-1522 BOLT,BLACK,10X47 |
92001-1522 |
from US $3.48 |
||
|
92009
|
92009
92009-2273 SCREW |
92009-2273 |
from US $1.09 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92015-2167 NUT |
92015-2167 |
from US $4.82 |
||
|
92022
|
92022
92022-2245 WASHER |
92022-2245 |
from US $0.83 |
||
|
92027
|
92027
92027-2096 COLLAR |
92027-2096 |
from US $0.82 |
||
|
92037
|
92037
92037-1827 CLAMP,HOSE |
92037-1827 |
from US $6.21 |
||
|
92070
|
92070
92070-2072
Plug-spark,bmr4a(ngk)
|
92070-2072 |
— | ||
|
92072
|
92072
92072-1237 BAND,L=250 |
92072-1237 |
from US $2.74 |
||
|
92170
|
92170
92170-2056 CLAMP |
92170-2056 |
from US $2.17 |
||
|
92200
|
92200
92200-1055 WASHER,8.5X20X2.3 |
92200-1055 |
from US $2.38 |
||
