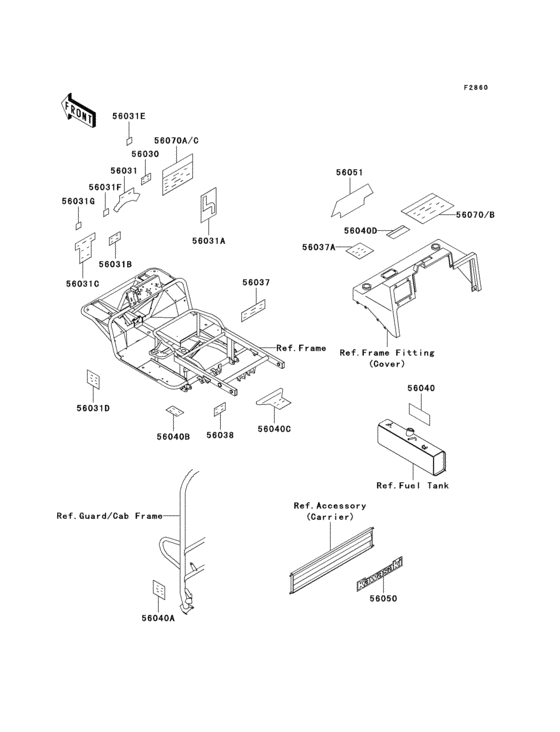

Labels Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-D1
- Engine Capacity
- 620
- Year
- 1990
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56030
|
56030
56030-1146 LABEL,TEMP |
56030-1146 |
US $2.99 |
||
|
56031
|
56031
56031-1740
LABEL-MANUAL,IGNITION
|
56031-1740 |
— | ||
|
56031A
|
56031A
56031-1742 LABEL-MANUAL,SHIFT CO |
56031-1742 |
from US $4.35 |
||
|
56031B
|
56031B
56031-1818 LABEL-MANUAL,BRAKE FL |
56031-1818 |
from US $4.20 |
||
|
56031C
|
56031C
56031-1819
LABEL-MANUAL,DIFFEREN
|
56031-1819 |
— | ||
|
56031D
|
56031D
56031-1821 LABEL-MANUAL,FUSE LAC |
56031-1821 |
US $8.05 |
||
|
56031E
|
56031E
56031-1865
Label-manual,light
|
56031-1865 |
— | ||
|
56031F
|
56031F
56031-1866
Label-manual,starter switch
|
56031-1866 |
— | ||
|
56031G
|
56031G
56031-1867
Label-manual,diff lock
|
56031-1867 |
— | ||
|
56037
|
56037
56037-1576 LABEL-SPECIFICATION,C |
56037-1576 |
from US $8.09 |
||
|
56037A
|
56037A
56037-1631
Label-specification,tire info
|
56037-1631 |
— | ||
|
56038
|
56038
56038-2782 LABEL-BRAND |
56038-2782 |
from US $1.71 |
||
|
56040
|
56040
56040-1241 Label-warning,fuel tank |
56040-1241 |
US $4.77 |
||
| replacement | |||||
|
56040
|
56040
56071-7501 LABEL-WARNING,GASOLIN |
56071-7501 |
US $4.18 |
||
|
56040A
|
56040A
56040-1242 Label-warning|label-warning,bed raised |
56040-1242 |
US $4.77 |
||
| replacement | |||||
|
56040A
|
56040A
56070-7515 LABEL-WARNING,BED RAI |
56070-7515 |
US $4.18 |
||
|
56040B
|
56040B
56040-1340 LABEL-WARNING,HOT SUR |
56040-1340 |
from US $9.95 |
||
| replacement | |||||
|
56040B
|
56040B
56070-0051 LABEL-WARNING,HOT SUR |
56070-0051 |
US $6.82 |
||
|
56040C
|
56040C
56040-1341 Label-warning,trailer hitch |
56040-1341 |
from US $9.95 |
||
| replacements | |||||
|
56040C
|
56040C
56071-7511 LABEL-WARNING,TRAILER |
56071-7511 |
US $6.46 |
||
|
56040C
|
56040C
56071-7506 LABEL,2 FOR REAR SEAT |
56071-7506 |
US $9.21 |
||
|
56040D
|
56040D
56040-1342 LABEL-WARNING,SHIFT C |
56040-1342 |
from US $8.09 |
||
|
56050
|
56050
56050-1937 MARK,KAWASAKI |
56050-1937 |
US $9.97 |
||
| replacement | |||||
|
56050
|
56050
56052-1464 MARK,UPPER COVER,KAWA |
56052-1464 |
from US $8.71 |
||
|
56051
|
56051
56051-1100
Mark,mule 2500e
|
56051-1100 |
— | ||
|
56070
|
56070
56070-1075
Label-warning,general
|
56070-1075 |
— | ||
|
56070A
|
56070A
56070-1076
Label-warning,handling
|
56070-1076 |
— | ||
|
56070B
|
56070B
56070-1078
Label-warning,general
|
56070-1078 |
— | ||
|
56070C
|
56070C
56070-1079
Label-warning,handling
|
56070-1079 |
— | ||
