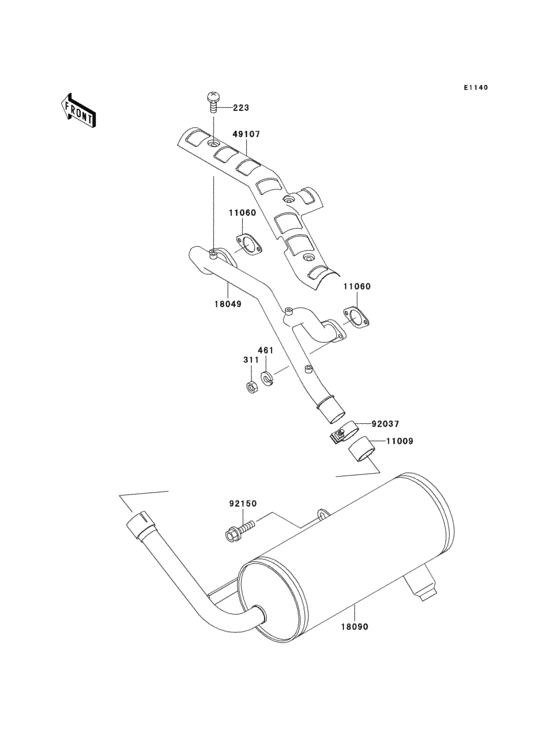

Muffler(s) Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-D1
- Engine Capacity
- 620
- Year
- 1990
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223C0610
SCREW-PAN-WS-CROS
|
223C0610 |
— | ||
| replacement | |||||
|
223
|
223
223AB0610 SCREW-PAN-WS-CROS |
223AB0610 |
from US $1.11 |
||
|
311
|
311
311G0600 NUT-HEX |
311G0600 |
US $0.95 |
||
| replacement | |||||
|
311
|
311
311BA0600 NUT-HEX |
311BA0600 |
from US $0.95 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
|
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11009
|
11009
11009-1718 GASKET,EXHAUST PIPE C |
11009-1718 |
from US $19.80 |
||
|
11060
|
11060
11060-2079 GASKET-EXHAUST PIPE |
11060-2079 |
from US $3.23 |
||
|
18049
|
18049
18049-1620 PIPE,EXHAUST |
18049-1620 |
US $248.45 |
||
|
18090
|
18090
18090-1220 BODY-COMP-MUFFLER |
18090-1220 |
from US $284.60 |
||
|
49107
|
49107
49107-1089 COVER,EXHAUST PIPE |
49107-1089 |
from US $42.31 |
||
|
92037
|
92037
92037-1221 CLAMP,MUFFLER |
92037-1221 |
US $11.52 |
||
| replacement | |||||
|
92037
|
92037
92170-1454 CLAMP,MUFFLER |
92170-1454 |
from US $7.44 |
||
|
92150
|
92150
92150-1158 BOLT |
92150-1158 |
from US $2.95 |
||
