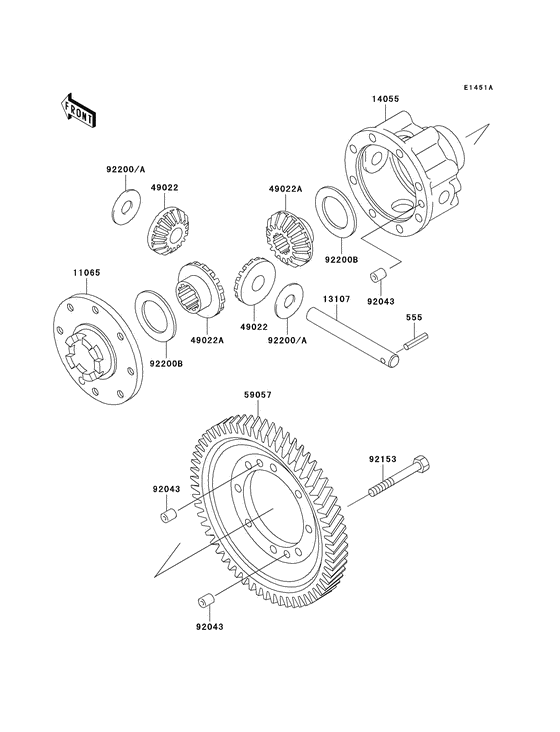

Differential (Kaf620-e4/e5) Diagram Kawasaki KAF620 Mule 3010 4X4
- Model code
- KAF620-E4
- Engine Capacity
- 620
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
555
|
555
555A0525 PIN-SPRING |
555A0525 |
from US $1.56 |
||
|
11065
|
11065
11065-0033 CAP,GEAR CASECap,gear case; |
11065-0033 |
from US $76.98 |
||
|
13107
|
13107
13107-0009 SHAFT |
13107-0009 |
from US $20.38 |
||
| replacement | |||||
|
13107
|
13107
13107-0922 Shaft |
13107-0922 |
US $40.29 |
||
|
14055
|
14055
14055-0003 CASE-GEAR,DIFFERENTIACase-gear,differential; |
14055-0003 |
from US $524.10 |
||
|
49022
|
49022
49022-1105 GEAR-BEVEL,10TGear-bevel,10t; |
49022-1105 |
from US $61.75 |
||
|
49022A
|
49022A
49022-1117 GEAR-BEVEL,16TGear-bevel,16t; |
49022-1117 |
from US $117.42 |
||
|
59057
|
59057
59057-0002 GEAR-HELICAL,DIFFERENGear-helical,differential; |
59057-0002 |
from US $137.48 |
||
|
92043
|
92043
92043-0029 PIN,10X12Pin,10x12; |
92043-0029 |
from US $3.27 |
||
|
92153
|
92153
92153-0331 BOLT,10X63Bolt,10x63; |
92153-0331 |
from US $2.95 |
||
|
92200
|
92200
92200-0021 WASHER,14.5X38X1.2Washer,14.5x38x1.2; |
92200-0021 |
from US $2.95 |
||
|
92200A
|
92200A
92200-1044 WASHER,14.5X38X1.0Washer,14.5x38x1.0; |
92200-1044 |
from US $5.13 |
||
|
92200B
|
92200B
92200-1045 WASHER,35.5X54X1.0Washer,35.5x54x1.0; |
92200-1045 |
from US $7.46 |
||
