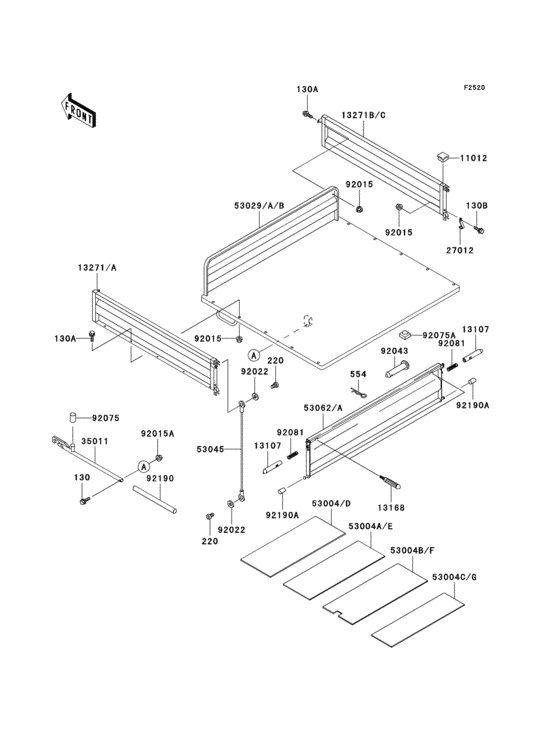

Carrier(s)(g1-g3) Diagram Kawasaki KAF620 Mule 3000
- Model code
- KAF620-G1
- Engine Capacity
- 620
- Year
- 2001
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 3000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0630 BOLT-FLANGED,6X30 |
130H0630 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0630 BOLT-FLANGED,6X30 |
130BA0630 |
from US $0.95 |
||
|
130A
|
130A
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
130B
|
130B
130J0850 BOLT-FLANGED,8X50 |
130J0850 |
from US $1.90 |
||
| replacement | |||||
|
130B
|
130B
130BB0850 BOLT-FLANGED,8X50 |
130BB0850 |
from US $1.40 |
||
|
220
|
220
220C0610 SCREW-PAN-CROSS |
220C0610 |
from US $1.27 |
||
| replacement | |||||
|
220
|
220
220AB0610 SCREW-PAN-CROSS |
220AB0610 |
from US $0.94 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/M |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/M |
554DA1200 |
from US $2.17 |
||
|
11012
|
11012
11012-1784 CAP |
11012-1784 |
from US $7.62 |
||
|
13107
|
13107
13107-1453 SHAFT |
13107-1453 |
US $60.10 |
||
| replacement | |||||
|
13107
|
13107
13107-0001 SHAFT |
13107-0001 |
from US $39.97 |
||
|
13168
|
13168
13168-1695 LEVER |
13168-1695 |
US $17.28 |
||
| replacement | |||||
|
13168
|
13168
13168-7501 LEVER |
13168-7501 |
US $22.42 |
||
|
13271
|
13271
13271-1430-B1 PLATE,CARRIER,SIDE,LH |
13271-1430-B1 |
US $221.65 |
||
|
13271B
|
13271B
13271-1433-B1 PLATE,CARRIER,SIDE,RH |
13271-1433-B1 |
US $221.65 |
||
|
27012
|
27012
27012-1406 HOOK,TAIL GATE |
27012-1406 |
US $4.97 |
||
| replacement | |||||
|
27012
|
27012
27012-0022 HOOK,TAIL GATE |
27012-0022 |
US $8.14 |
||
|
35011
|
35011
35011-1648 STAY,CARRIER,STOPPER |
35011-1648 |
from US $19.90 |
||
|
53004
|
53004
53004-1152 MAT |
53004-1152 |
US $95.33 |
||
| replacements | |||||
|
53004
|
53004
53004-1157 MAT |
53004-1157 |
from US $82.11 |
||
|
53004
|
53004
53004-1142 MAT |
53004-1142 |
US $95.33 |
||
|
53004A
|
53004A
53004-1153 MAT |
53004-1153 |
US $108.09 |
||
| replacements | |||||
|
53004A
|
53004A
53004-1158 MAT |
53004-1158 |
from US $82.11 |
||
|
53004A
|
53004A
53004-1143 MAT |
53004-1143 |
US $108.09 |
||
|
53004B
|
53004B
53004-1154 MAT |
53004-1154 |
US $95.33 |
||
| replacements | |||||
|
53004B
|
53004B
53004-1159 MAT |
53004-1159 |
from US $76.20 |
||
|
53004B
|
53004B
53004-1144 MAT |
53004-1144 |
US $95.33 |
||
|
53004C
|
53004C
53004-1155 Mat |
53004-1155 |
US $75.06 |
||
| replacement | |||||
|
53004C
|
53004C
53004-1160 MAT |
53004-1160 |
US $96.84 |
||
|
53029
|
53029
53029-1226-B1 CARRIER,F.RED |
53029-1226-B1 |
US $1,046.05 |
||
|
53045
|
53045
53045-1065 HOOK-ASSY,TAIL GATE |
53045-1065 |
US $39.95 |
||
|
53062
|
53062
53062-1006-B1 GATE-TAIL,F.RED |
53062-1006-B1 |
US $384.01 |
||
| replacement | |||||
|
53062
|
53062
53062-0001-B1 GATE-TAIL,F.RED |
53062-0001-B1 |
US $384.01 |
||
|
92015
|
92015
92015-1408 NUT,FLANGED,8MM |
92015-1408 |
from US $4.34 |
||
| replacement | |||||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MM |
92210-0004 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1545 WASHER,7X18X1.2 |
92022-1545 |
from US $1.45 |
||
|
92043
|
92043
92043-1428 PIN,12X65 |
92043-1428 |
from US $6.22 |
||
|
92075
|
92075
92075-1817 DAMPER |
92075-1817 |
from US $3.64 |
||
|
92075A
|
92075A
92075-1882 DAMPER,SEAT |
92075-1882 |
from US $5.39 |
||
|
92081
|
92081
92081-3703 SPRING |
92081-3703 |
from US $2.95 |
||
|
92190
|
92190
92190-1401 TUBE,13X16X200 |
92190-1401 |
from US $2.95 |
||
|
92190A
|
92190A
92190-1467
TUBE,8X10X15
|
92190-1467 |
— | ||
