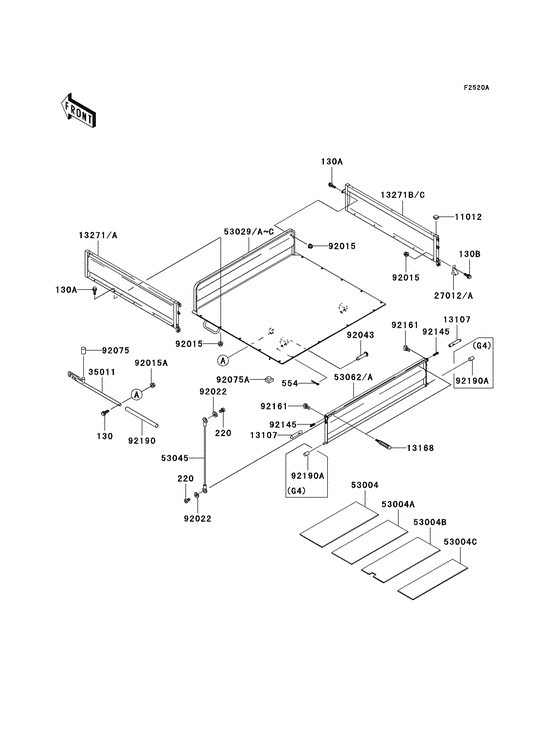

Carrier (S; kaf620-g4/g5) Diagram Kawasaki KAF620 Mule 3000
- Model code
- KAF620-G4
- Engine Capacity
- 620
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 3000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0630 BOLT-FLANGED,6X30Bolt-flanged,6x30; |
130H0630 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0630 BOLT-FLANGED,6X30Bolt-flanged,6x30; |
130BA0630 |
from US $0.95 |
||
|
130A
|
130A
130J0820
BOLT-FLANGED
Bolt-flanged,8x20; |
130J0820 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0820 BOLT-FLANGEDBolt-flanged,8x20; |
130BB0820 |
from US $1.24 |
||
|
130B
|
130B
130J0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130J0850 |
from US $1.90 |
||
| replacement | |||||
|
130B
|
130B
130BB0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130BB0850 |
from US $1.40 |
||
|
220
|
220
220F0610 SCREW-PAN-CROSSScrew-pan-cross; |
220F0610 |
from US $1.19 |
||
| replacement | |||||
|
220
|
220
220AB0610 SCREW-PAN-CROSSScrew-pan-cross; |
220AB0610 |
from US $0.94 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/MPin-snap,12mm; |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/MPin-snap,12mm; |
554DA1200 |
from US $2.17 |
||
|
11012
|
11012
11012-1784 CAP |
11012-1784 |
from US $7.62 |
||
|
13107
|
13107
13107-0001 SHAFT |
13107-0001 |
from US $39.97 |
||
|
13168
|
13168
13168-7501 LEVER |
13168-7501 |
US $22.42 |
||
|
13271
|
13271
13271-0099-B9 PLATE,CARRIER,SIDE,LHPlate,carrier,side,lh,h.green; |
13271-0099-B9 |
US $221.65 |
||
|
13271A
|
13271A
13271-0099-467 PLATE,CARRIER,SIDE,LHPlate,carrier,side,lh,a.red; |
13271-0099-467 |
US $221.65 |
||
|
13271B
|
13271B
13271-0100-B9 PLATE,CARRIER,SIDE,RHPlate,carrier,side,rh,h.green; |
13271-0100-B9 |
US $221.65 |
||
|
13271C
|
13271C
13271-0100-467 PLATE,CARRIER,SIDE,RHPlate,carrier,side,rh,a.red; |
13271-0100-467 |
US $234.95 |
||
|
27012A
|
27012A
27012-1406 HOOK,TAIL GATEHook,tail gate; |
27012-1406 |
US $4.97 |
||
| replacement | |||||
|
27012A
|
27012A
27012-0022 HOOK,TAIL GATEHook,tail gate; |
27012-0022 |
US $8.14 |
||
|
35011
|
35011
35011-1648 STAY,CARRIER,STOPPERStay,carrier stopper; |
35011-1648 |
from US $19.90 |
||
|
53004
|
53004
53004-1157 MAT |
53004-1157 |
from US $82.11 |
||
|
53004A
|
53004A
53004-1158 MAT |
53004-1158 |
from US $82.11 |
||
|
53004B
|
53004B
53004-1159 MAT |
53004-1159 |
from US $76.20 |
||
|
53004C
|
53004C
53004-1160 MAT |
53004-1160 |
US $96.84 |
||
|
53029
|
53029
53029-0006-B9 CARRIER,H.GREENCarrier,h.green; |
53029-0006-B9 |
US $1,119.29 |
||
|
53029A
|
53029A
53029-0006-467 CARRIER,A.REDCarrier,a.red; |
53029-0006-467 |
US $1,046.05 |
||
|
53045
|
53045
53045-0004 HOOK-ASSY,TAIL GATEHook-assy,tail gate; |
53045-0004 |
US $28.39 |
||
| replacement | |||||
|
53045
|
53045
53045-0031 HOOK-ASSY,TAIL GATEHook-assy,tail gate; |
53045-0031 |
from US $33.08 |
||
|
53062
|
53062
53062-0001-B9 GATE-TAIL,H.GREENGate-tail,h.green; |
53062-0001-B9 |
US $419.27 |
||
|
53062A
|
53062A
53062-0001-467 GATE-TAIL,A.REDGate-tail,a.red; |
53062-0001-467 |
US $414.73 |
||
|
92015
|
92015
92015-1408 NUT,FLANGED,8MMNut,flanged,8mm; |
92015-1408 |
from US $4.34 |
||
| replacement | |||||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MMNut,flanged,8mm; |
92210-0004 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1545 WASHER,7X18X1.2Washer,7x18x1.2; |
92022-1545 |
from US $1.45 |
||
|
92043
|
92043
92043-1428 PIN,12X65Pin,12x65; |
92043-1428 |
from US $6.22 |
||
|
92075
|
92075
92075-1817 DAMPER |
92075-1817 |
from US $3.64 |
||
|
92075A
|
92075A
92075-1882 DAMPER,SEAT |
92075-1882 |
from US $5.39 |
||
|
92145
|
92145
92145-1215 SPRING,TENSIONERSpring,tensioner; |
92145-1215 |
from US $2.49 |
||
|
92161
|
92161
92161-0083 DAMPER |
92161-0083 |
US $3.13 |
||
| replacement | |||||
|
92161
|
92161
92161-0258 DAMPER |
92161-0258 |
US $5.44 |
||
|
92190
|
92190
92190-1401 TUBE,13X16X200Tube,13x16x200; |
92190-1401 |
from US $2.95 |
||
|
92190A
|
92190A
92190-1467
TUBE,8X10X15
Tube,8x10x15; |
92190-1467 |
— | ||
