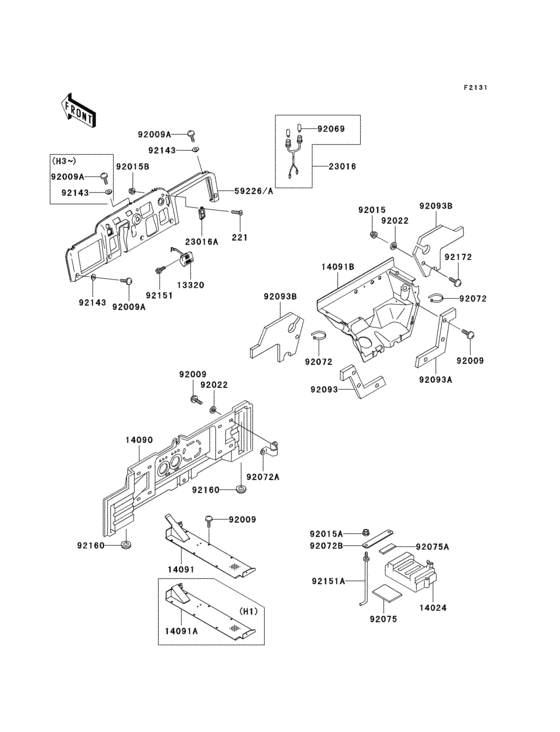

Frame fittings Diagram Kawasaki KAF620 Mule 3010 4X4 Hardwoods Green HD
- Model code
- KAF620-H3
- Engine Capacity
- 620
- Year
- 2005
- Sales region
- Canada
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
221
|
221
221C0616 SCREW-CSK-CROS |
221C0616 |
from US $1.27 |
||
| replacement | |||||
|
221
|
221
221AB0616 SCREW-CSK-CROS |
221AB0616 |
from US $1.09 |
||
|
13320
|
13320
13320-1016 LEVER-ASSY |
13320-1016 |
from US $74.65 |
||
|
14024
|
14024
14024-1792 COVER,BATTERY |
14024-1792 |
from US $56.61 |
||
|
14090
|
14090
14090-1247 UNDER COVER,SEAT |
14090-1247 |
from US $151.96 |
||
|
14091
|
14091
14091-0118 COVER,FLOOR,CNT |
14091-0118 |
US $102.83 |
||
|
14091B
|
14091B
14091-1378 COVER,FLOOR |
14091-1378 |
US $110.74 |
||
|
23016
|
23016
23016-1188 LAMP-ASSY,INDICATOR |
23016-1188 |
from US $33.44 |
||
|
23016A
|
23016A
23016-1189 LAMP-ASSY |
23016-1189 |
US $43.94 |
||
|
59226A
|
59226A
59226-1060-275 PANEL-CONTROL,S.M.BRO |
59226-1060-275 |
US $137.43 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1386 NUT,FLANGED,6MM |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92015B
|
92015B
92015-1603 NUT |
92015-1603 |
from US $2.85 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92069
|
92069
92069-1020 BULB,12V3W T-7 |
92069-1020 |
from US $4.44 |
||
|
92072
|
92072
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
|
92072A
|
92072A
92072-1252 BAND |
92072-1252 |
from US $6.68 |
||
|
92072B
|
92072B
92072-1399 BAND,L=159 |
92072-1399 |
US $4.64 |
||
|
92075
|
92075
92075-1076 DAMPER,BATTERY BASE |
92075-1076 |
from US $5.70 |
||
|
92075A
|
92075A
92075-1214 DAMPER,ENGINE GUARD |
92075-1214 |
from US $2.65 |
||
|
92093
|
92093
92093-1293 SEAL,FRONT FENDER,LH |
92093-1293 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1294 SEAL,FRONT FENDER,RH |
92093-1294 |
from US $6.22 |
||
|
92093B
|
92093B
92093-1295 SEAL,LOWER COVER |
92093-1295 |
US $22.88 |
||
| replacement | |||||
|
92093B
|
92093B
92093-0181 SEAL,LOWER COVER |
92093-0181 |
from US $12.76 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92151
|
92151
92151-1305 BOLT,5X12 |
92151-1305 |
from US $0.95 |
||
|
92151A
|
92151A
92151-1897 BOLT,BATTERY |
92151-1897 |
from US $3.73 |
||
|
92160
|
92160
92160-1148 DAMPER |
92160-1148 |
from US $2.65 |
||
|
92172
|
92172
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.27 |
||
