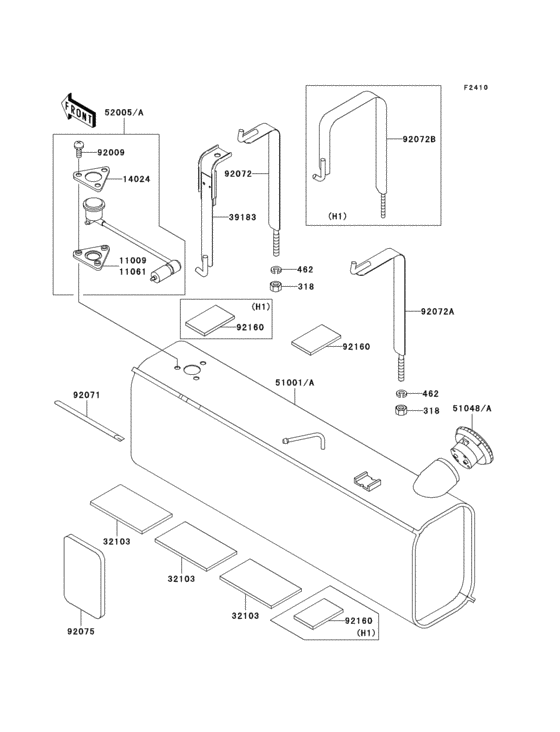

Fuel tank Diagram Kawasaki KAF620 Mule 3010 4X4 Hardwoods Green HD
- Model code
- KAF620-H3
- Engine Capacity
- 620
- Year
- 2005
- Sales region
- Canada
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
318
|
318
318C0800 NUT-HEX-SMALL |
318C0800 |
from US $0.45 |
||
| replacement | |||||
|
318
|
318
318AB0800 NUT-HEX-SMALL |
318AB0800 |
from US $1.07 |
||
|
462
|
462
462L0800 WASHER-SPRING,8MM |
462L0800 |
US $1.94 |
||
| replacement | |||||
|
462
|
462
462DA0800 WASHER-SPRING,8MM |
462DA0800 |
from US $0.94 |
||
|
11061
|
11061
11061-0120 GASKET,FUEL GAUGE |
11061-0120 |
from US $9.17 |
||
|
14024
|
14024
14024-1697 Cover,fuel gauge |
14024-1697 |
US $29.83 |
||
| replacements | |||||
|
14024
|
14024
52005-0734 GAUGE,FUEL |
52005-0734 |
from US $27.53 |
||
|
14024
|
14024
52005-0714 GAUGE,FUEL |
52005-0714 |
US $42.30 |
||
|
32103
|
32103
32103027 MAT,BATTERY |
32103027 |
from US $7.46 |
||
|
39183
|
39183
39183-0001 BAND-ASSY |
39183-0001 |
US $37.01 |
||
|
51001
|
51001
51001-0010 TANK-COMP-FUEL |
51001-0010 |
US $564.25 |
||
|
51048
|
51048
51048-0005 CAP-ASSY-TANK,FUEL |
51048-0005 |
from US $39.97 |
||
|
52005
|
52005
52005-0013 ゲ-ジ，フユーエル |
52005-0013 |
US $35.59 |
||
| replacement | |||||
|
52005
|
52005
52005-0733 GAUGE,FUEL |
52005-0733 |
from US $27.06 |
||
|
92009
|
92009
92009-1541 SCREW |
92009-1541 |
from US $5.75 |
||
|
92071
|
92071
92071-1198 GROMMET |
92071-1198 |
from US $3.62 |
||
|
92072
|
92072
92072-0018 BAND,FUEL TANK |
92072-0018 |
US $37.01 |
||
|
92072A
|
92072A
92072-1248 BAND,FUEL TANK |
92072-1248 |
from US $45.42 |
||
|
92075
|
92075
92075-3759 DAMPER |
92075-3759 |
from US $21.69 |
||
|
92160
|
92160
92160-1102 DAMPER |
92160-1102 |
US $2.66 |
||
| replacement | |||||
|
92160
|
92160
92075-1830 DAMPER |
92075-1830 |
from US $3.80 |
||
