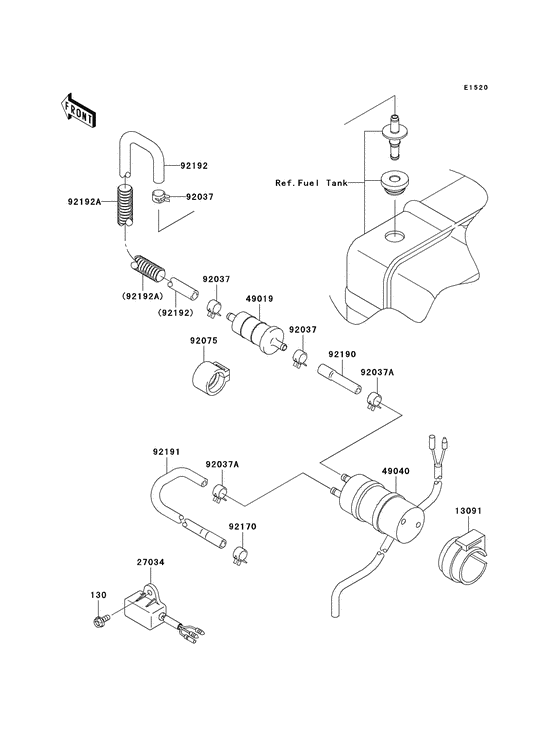

Fuel Pump Diagram Kawasaki KAF620 Mule 3010 Trans 4X4
- Model code
- KAF620-J1
- Engine Capacity
- 620
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14,black; |
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14,black; |
130BB0614 |
from US $1.11 |
||
|
13091
|
13091
13091-1512 HOLDER |
13091-1512 |
from US $12.04 |
||
|
27034
|
27034
27034-1053 RELAY,FUEL CUTRelay,fuel cut; |
27034-1053 |
from US $93.31 |
||
|
49019
|
49019
49019-1055
FILTER-FUEL
|
49019-1055 |
— | ||
| replacement | |||||
|
49019
|
49019
49019-0032 Filter-fuel |
49019-0032 |
from US $20.17 |
||
|
49040
|
49040
49040-1055 Pump-fuel |
49040-1055 |
from US $265.94 |
||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3 |
||
|
92037A
|
92037A
92037-1505 CLAMP,TUBEClamp,tube; |
92037-1505 |
from US $3.17 |
||
|
92075
|
92075
92075-1853 DAMPERDamper,fuel filter; |
92075-1853 |
from US $8.08 |
||
|
92170
|
92170
92170-2082 CLAMP |
92170-2082 |
from US $1.24 |
||
|
92190
|
92190
92190-1437 TUBE,FILTER-PUMPTube,filter-pump; |
92190-1437 |
from US $3.89 |
||
|
92191
|
92191
92191-1479 TUBETube,pump-carburetor; |
92191-1479 |
US $9.91 |
||
|
92192
|
92192
92192-7504 TUBE |
92192-7504 |
US $40.72 |
||
|
92192A
|
92192A
92192-7505 TUBE |
92192-7505 |
US $33.44 |
||
