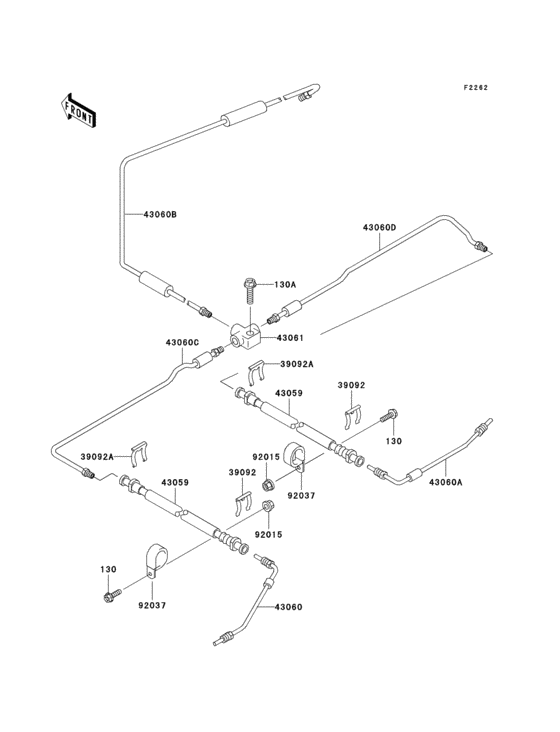

Brake piping Diagram Kawasaki KAF620 Mule 3010 Trans 4X4
- Model code
- KAF620-J1
- Engine Capacity
- 620
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0620 BOLT-FLANGED,6X20 |
130D0620 |
US $22.10 |
||
| replacements | |||||
|
130
|
130
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $1.11 |
||
|
130
|
130
130AA0620 BOLT-FLANGED,6X20 |
130AA0620 |
from US $1.11 |
||
|
130A
|
130A
130D0830 BOLT-FLANGED |
130D0830 |
US $2.59 |
||
| replacements | |||||
|
130A
|
130A
130BA0830 BOLT-FLANGED,8X30 |
130BA0830 |
from US $1.43 |
||
|
130A
|
130A
130AA0830 BOLT-FLANGED |
130AA0830 |
from US $1.14 |
||
|
39092
|
39092
39092-1052 PIN-HAIR |
39092-1052 |
from US $5.28 |
||
|
39092A
|
39092A
39092-1059 PIN-HAIR |
39092-1059 |
from US $2.65 |
||
|
43059
|
43059
43059-1490 HOSE-BRAKE,RR |
43059-1490 |
from US $14.58 |
||
| replacements | |||||
|
43059
|
43059
43095-1823 HOSE-BRAKE,RR |
43095-1823 |
US $15.11 |
||
|
43059
|
43059
43095-1609 Hose-Brake,rr |
43095-1609 |
US $12.94 |
||
|
43060
|
43060
43060-1083 PIPE-BRAKE,RR,LH |
43060-1083 |
from US $13.84 |
||
|
43060A
|
43060A
43060-1084 PIPE-BRAKE,RR,RH |
43060-1084 |
from US $16.95 |
||
|
43060B
|
43060B
43060-7501
PIPE-BRAKE,RR,FR
|
43060-7501 |
— | ||
|
43060C
|
43060C
43060-7502 PIPE-BRAKE,MIDDLE,LH |
43060-7502 |
from US $17.73 |
||
|
43060D
|
43060D
43060-7503 PIPE-BRAKE,MIDDLE,RH |
43060-7503 |
from US $16.49 |
||
|
43061
|
43061
43061-1063 JOINT-BRAKE |
43061-1063 |
from US $32.34 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92037
|
92037
92037-1608 CLAMP |
92037-1608 |
from US $5.39 |
||
