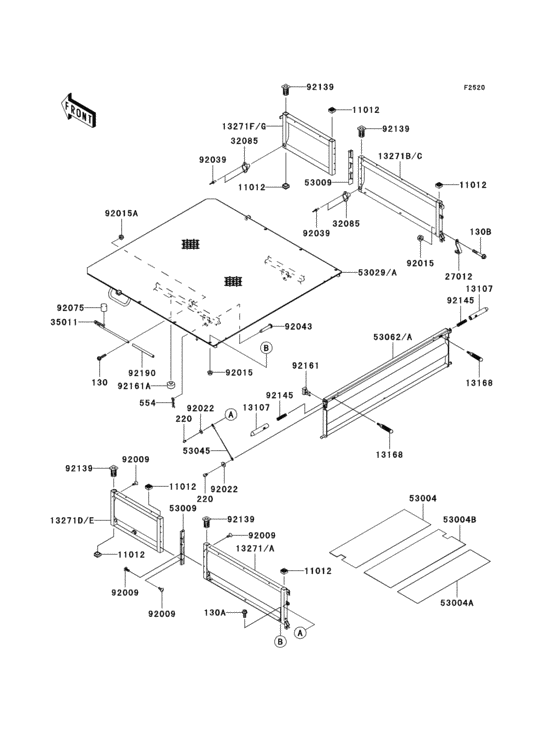

Carrier(s) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4
- Model code
- KAF620-J1
- Engine Capacity
- 620
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0630 BOLT-FLANGED,6X30 |
130H0630 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0630 BOLT-FLANGED,6X30 |
130BA0630 |
from US $0.95 |
||
|
130A
|
130A
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
130B
|
130B
130J0850 BOLT-FLANGED,8X50 |
130J0850 |
from US $1.90 |
||
| replacement | |||||
|
130B
|
130B
130BB0850 BOLT-FLANGED,8X50 |
130BB0850 |
from US $1.40 |
||
|
220
|
220
220F0610 SCREW-PAN-CROSS |
220F0610 |
from US $1.19 |
||
| replacement | |||||
|
220
|
220
220AB0610 SCREW-PAN-CROSS |
220AB0610 |
from US $0.94 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/M |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/M |
554DA1200 |
from US $2.17 |
||
|
11012
|
11012
11012-1784 CAP |
11012-1784 |
from US $7.62 |
||
|
13107
|
13107
13107-0001 SHAFT |
13107-0001 |
from US $39.97 |
||
|
13168
|
13168
13168-7501 LEVER |
13168-7501 |
US $22.42 |
||
|
13271A
|
13271A
13271-7532-467 PLATE,SIDE,RR,LH,A.RE |
13271-7532-467 |
US $195.01 |
||
|
13271C
|
13271C
13271-7534-467 PLATE,SIDE,RR,RH,A.RE |
13271-7534-467 |
US $147.22 |
||
|
13271E
|
13271E
13271-7535-467 PLATE,SIDE,FR,LH,A.RE |
13271-7535-467 |
US $108.12 |
||
|
13271G
|
13271G
13271-7537-467 PLATE,SIDE,FR,RH,A.RE |
13271-7537-467 |
US $139.55 |
||
|
27012
|
27012
27012-0022 HOOK,TAIL GATE |
27012-0022 |
US $8.14 |
||
|
32085
|
32085
32085-7501 STOPPER |
32085-7501 |
US $9.03 |
||
|
35011
|
35011
35011-1648 STAY,CARRIER,STOPPER |
35011-1648 |
from US $19.90 |
||
|
53004
|
53004
53004-1158 MAT |
53004-1158 |
from US $82.11 |
||
|
53004A
|
53004A
53004-1160 MAT |
53004-1160 |
US $96.84 |
||
|
53004B
|
53004B
53004-7501 MAT |
53004-7501 |
from US $76.20 |
||
|
53009
|
53009
53009-7501 HINGE,CARRIER |
53009-7501 |
US $52.82 |
||
|
53029A
|
53029A
53029-7512-467 CARRIER,A.RED |
53029-7512-467 |
US $993.26 |
||
|
53045
|
53045
53045-0004 HOOK-ASSY,TAIL GATE |
53045-0004 |
US $28.39 |
||
| replacement | |||||
|
53045
|
53045
53045-0031 HOOK-ASSY,TAIL GATE |
53045-0031 |
from US $33.08 |
||
|
53062A
|
53062A
53062-7503-467 GATE-TAIL,A.RED |
53062-7503-467 |
US $540.26 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1408 NUT,FLANGED,8MM |
92015-1408 |
from US $4.34 |
||
| replacement | |||||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MM |
92210-0004 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1545 WASHER,7X18X1.2 |
92022-1545 |
from US $1.45 |
||
|
92039
|
92039
92039-1150 RIVET |
92039-1150 |
from US $2.33 |
||
|
92043
|
92043
92043-1428 PIN,12X65 |
92043-1428 |
from US $6.22 |
||
|
92075
|
92075
92075-1817 DAMPER |
92075-1817 |
from US $3.64 |
||
|
92139
|
92139
92139-7501 BUSHING,REAR SCREEN |
92139-7501 |
US $6.04 |
||
|
92145
|
92145
92145-1215 SPRING,TENSIONER |
92145-1215 |
from US $2.49 |
||
|
92161
|
92161
92161-0258 DAMPER |
92161-0258 |
US $5.44 |
||
|
92161A
|
92161A
92161-7510 DAMPER |
92161-7510 |
US $5.68 |
||
|
92190
|
92190
92190-1401 TUBE,13X16X200 |
92190-1401 |
from US $2.95 |
||
