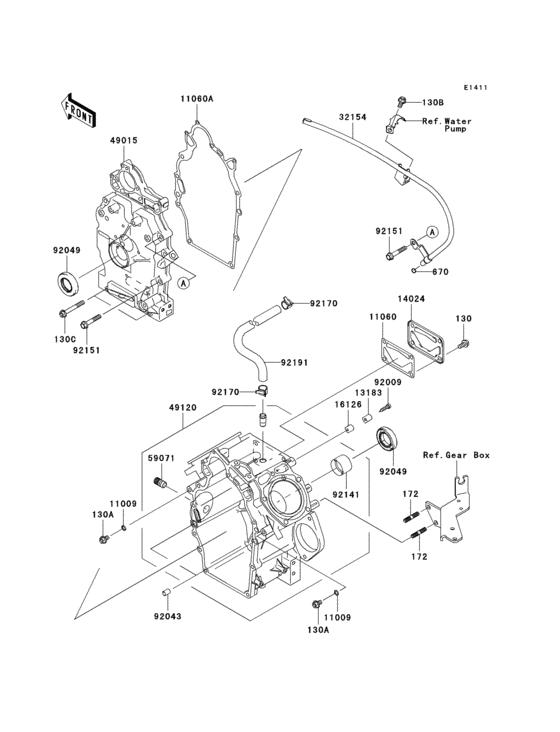

Crankcase Diagram Kawasaki KAF620 Mule 3010 Trans 4X4
- Model code
- KAF620-J1
- Engine Capacity
- 620
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0816 BOLT-FLANGED |
130B0816 |
US $6.70 |
||
| replacements | |||||
|
130
|
130
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
130
|
130
130AA0816 BOLT-FLANGED |
130AA0816 |
from US $1.24 |
||
|
130A
|
130A
130C0812
BOLT-FLANGED
|
130C0812 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0812 BOLT-FLANGED |
130BB0812 |
from US $1.05 |
||
|
130A
|
130A
130AB0812 BOLT-FLANGED |
130AB0812 |
from US $1.11 |
||
|
130B
|
130B
130G0816 BOLT-FLANGED |
130G0816 |
from US $0.74 |
||
| replacement | |||||
|
130B
|
130B
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
130C
|
130C
130T0860 BOLT-FLANGED,8X60 |
130T0860 |
US $1.40 |
||
| replacement | |||||
|
130C
|
130C
130CA0860 BOLT-FLANGED,8X60 |
130CA0860 |
from US $1.43 |
||
|
172
|
172
172G0825 STUD |
172G0825 |
US $15.30 |
||
| replacement | |||||
|
172
|
172
172BA0825 STUD |
172BA0825 |
from US $2.95 |
||
|
670
|
670
670B2010 0 RING, 10MM |
670B2010 |
from US $1.87 |
||
|
11009
|
11009
11009-3028 GASKET-CHECK VALVE |
11009-3028 |
from US $1.07 |
||
|
11060
|
11060
11060-2089 GASKET-CRNKCASE CVR |
11060-2089 |
from US $3.11 |
||
|
11060A
|
11060A
11060-2449 GASKET,CRANKCASE COVE |
11060-2449 |
from US $16.33 |
||
| replacement | |||||
|
11060A
|
11060A
11061-1680 Gasket,Crankcase Cove |
11061-1680 |
US $19.98 |
||
|
13183
|
13183
13183-2120 PLATE |
13183-2120 |
from US $0.75 |
||
|
14024
|
14024
14024-2292 COVER |
14024-2292 |
from US $3.57 |
||
|
16126
|
16126
16126-2146 VALVE |
16126-2146 |
from US $0.97 |
||
|
32154
|
32154
32154-2067-9H PIPE,F.BLACK |
32154-2067-9H |
from US $24.88 |
||
|
49015
|
49015
49015-6193 Cover-crankcase |
49015-6193 |
US $509.36 |
||
| replacement | |||||
|
49015
|
49015
49015-6324 COVER-CRANKCASE |
49015-6324 |
from US $360.81 |
||
|
49120
|
49120
49120-6078 Crankcase comp |
49120-6078 |
US $1,169.80 |
||
| replacements | |||||
|
49120
|
49120
13271-2054 PLATE |
13271-2054 |
from US $1.24 |
||
|
49120
|
49120
49120-0847 CRANKCASE-COMP |
49120-0847 |
from US $883.35 |
||
|
49120
|
49120
49120-6201 CRANKCASE-COMP |
49120-6201 |
US $1,173.37 |
||
|
59071
|
59071
59071-2079 JOINT |
59071-2079 |
from US $4.82 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14 |
92043-1037 |
from US $0.97 |
||
|
92049
|
92049
92049-2110 SEAL-OIL |
92049-2110 |
US $5.38 |
||
| replacement | |||||
|
92049
|
92049
92049-2112 SEAL-OIL |
92049-2112 |
from US $7.85 |
||
|
92141
|
92141
92141-2110 BEARING-PLANE |
92141-2110 |
US $6.55 |
||
| replacement | |||||
|
92141
|
92141
92141-2122 BEARING-PLANE |
92141-2122 |
from US $8.64 |
||
|
92151
|
92151
92151-2123 BOLT,8X45 |
92151-2123 |
US $1.40 |
||
| replacement | |||||
|
92151
|
92151
92153-2130 BOLT,8X45 |
92153-2130 |
from US $1.40 |
||
|
92170
|
92170
92170-3714 CLAMP |
92170-3714 |
from US $1.99 |
||
|
92191
|
92191
92191-2107 TUBE |
92191-2107 |
from US $10.57 |
||
