	Description	OEM Part #	Price
132	132 132H0870 BOLT-FLANGED-SMALL	132H0870	US $4.84
	replacement
132	132 132BA0870 BOLT-FLANGED-SMALL	132BA0870	from US $1.56
172	172 172G0825 STUD	172G0825	US $15.30
	replacement
172	172 172BA0825 STUD	172BA0825	from US $2.95
11021	11021 11021-1095 CASE-ASSY	11021-1095	from US $346.81
	replacement
11021	11021 11021-0026 CASE-ASSY	11021-0026	from US $436.63
11060	11060 11060-1311 GASKET,GEAR CASE	11060-1311	from US $6.06
13048	13048 13048-1089 CAM-DAMPER	13048-1089	from US $30.48
13091	13091 13091-1620 HOLDER,GEAR CASE	13091-1620	from US $27.84
13091A	13091A 13091-1810 HOLDER,CAM DAMPER	13091-1810	from US $31.26
13107	13107 13107-1523 SHAFT,BEVEL GEAR	13107-1523	from US $142.30
14090	14090 14090-1341 COVER	14090-1341	US $14.22
	replacement
14090	14090 14091-1672 COVER	14091-1672	from US $8.87
41046	41046 41046-1083 HOUSING-BEARING	41046-1083	from US $96.42
49022	49022 49022-1204 GEAR-BEVEL,18T	49022-1204	from US $145.41
	replacement
49022	49022 49022-0614 Gear-Bevel,18T	49022-0614	US $257.06
49022A	49022A 49022-1205 GEAR-BEVEL,15T	49022-1205	from US $145.41
	replacement
49022A	49022A 49022-0615 Gear-Bevel,15T	49022-0615	US $257.06
92009	92009 92009-1474 SCREW	92009-1474	from US $15.39
92015	92015 92015-1402 NUT,8MM	92015-1402	from US $2.85
92015A	92015A 92015-1581 NUT	92015-1581	from US $12.20
92015B	92015B 92015-1858 NUT,30MM	92015-1858	from US $18.98
92015C	92015C 92015-1920 NUT	92015-1920	from US $3.73
92022	92022 92022-1890 WASHER,12X24X2.3	92022-1890	from US $2.79
92025	92025 92025-1533 SHIM,20.3X28X1.3	92025-1533	from US $3.73
92025A	92025A 92025-1534 SHIM,20.3X28X0.7	92025-1534	from US $2.95
92025B	92025B 92025-1535 SHIM,20.3X28X0.8	92025-1535	US $5.17
	replacement
92025B	92025B 92180-0288 SHIM,20.3X28X0.8	92180-0288	from US $2.95
92025C	92025C 92025-1536 SHIM,20.3X28X0.9	92025-1536	US $7.69
	replacement
92025C	92025C 92180-0289 SHIM,20.3X28X0.9	92180-0289	from US $4.67
92025D	92025D 92025-1537 SHIM,20.3X28X1.0	92025-1537	US $5.17
	replacement
92025D	92025D 92180-0290 SHIM,20.3X28X1.0	92180-0290	from US $2.95
92025E	92025E 92025-1538 SHIM,20.3X28X1.2	92025-1538	US $3.98
	replacement
92025E	92025E 92180-0291 SHIM,20.3X28X1.2	92180-0291	from US $2.95
92025F	92025F 92025-1573 SHIM,20.3X28X0.15	92025-1573	from US $3.33
92025G	92025G 92025-1574 SHIM,20.3X28X0.20	92025-1574	from US $3.33
92025H	92025H 92025-1575 SHIM,20.3X28X1.1	92025-1575	from US $2.95
92025I	92025I 92025-1858 SHIM,T=1.00	92025-1858	from US $3.27
92025J	92025J 92025-1859 SHIM,T=0.10	92025-1859	from US $3.27
92025K	92025K 92025-1860 SHIM,T=0.15	92025-1860	from US $3.27
92025L	92025L 92025-1861 SHIM,T=0.50	92025-1861	from US $3.27
92025M	92025M 92025-1862 SHIM,T=0.80	92025-1862	from US $3.27
92025N	92025N 92025-1863 SHIM,T=1.20	92025-1863	from US $3.27
92043	92043 92043-1037 PIN,DOWEL,10X8.2X14	92043-1037	from US $0.97
92045	92045 92045-1200 BEARING-BALL	92045-1200	from US $20.75
92045A	92045A 92045-1201 BEARING-BALL,6006CM	92045-1201	from US $18.04
92049	92049 92049-1288 SEAL-OIL	92049-1288	from US $6.38
92055	92055 92055-1287 RING-O,66.5MM	92055-1287	from US $3.57
92055A	92055A 92055-1294 RING-O,63MM	92055-1294	from US $5.60
92143	92143 92143-1600 COLLAR	92143-1600	from US $10.57
92145	92145 92145-1542 SPRING	92145-1542	from US $9.79

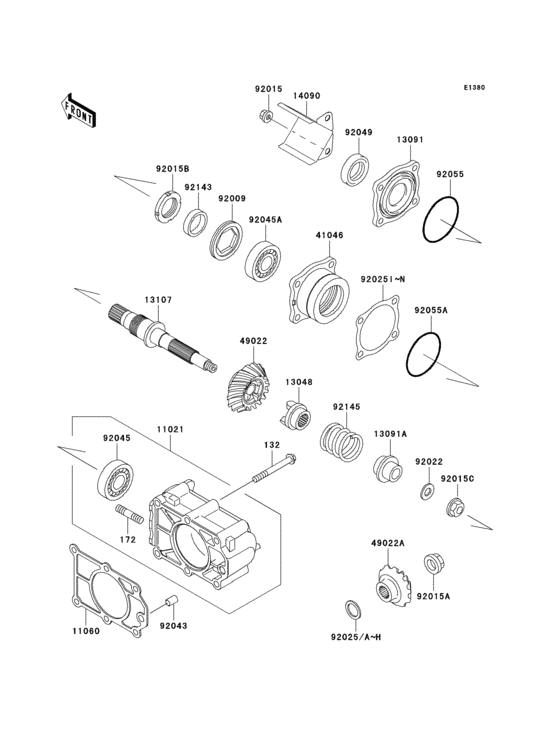

Bevel gear case(1/2) Diagram Kawasaki KAF620 Mule 3010 4X4 Aztec Red (467) Europe 14061119-799420

Bevel gear case(1/2) Diagram Kawasaki KAF620 Mule 3010 4X4 Aztec Red (467) Europe 14061119-799420
