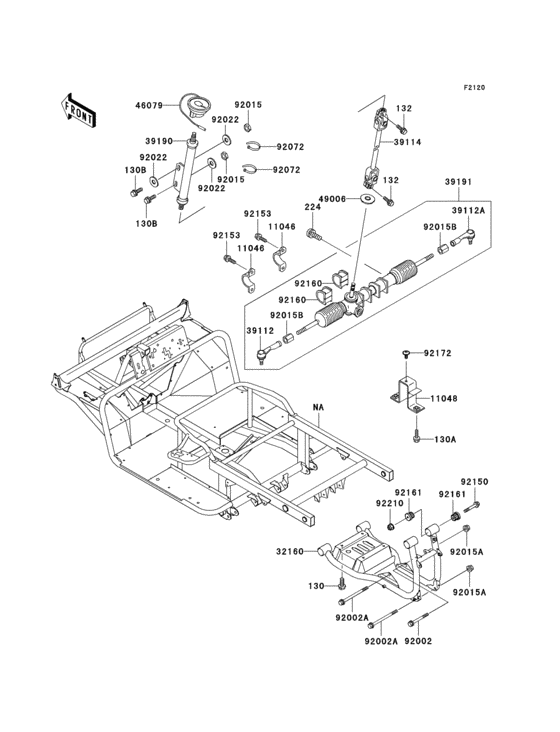

Frame Diagram Kawasaki KAF620 Mule 3010 4X4
- Model code
- KAF620E6F
- Engine Capacity
- 620
- Year
- 2006
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0820 BOLT-FLANGED,8X20 |
130H0820 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
130A
|
130A
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
130B
|
130B
130J1030
BOLT-FLANGED,10X30,BL
|
130J1030 |
— | ||
| replacements | |||||
|
130B
|
130B
130BB1030 BOLT-FLANGED,10X30,BL |
130BB1030 |
from US $1.43 |
||
|
130B
|
130B
130CB1030 BOLT-FLANGED,10X30,BL |
130CB1030 |
from US $1.43 |
||
|
132
|
132
132J0825
BOLT-FLANGED-SMALL
|
132J0825 |
— | ||
| replacement | |||||
|
132
|
132
132BB0825 BOLT-FLANGED-SMALL |
132BB0825 |
from US $1.61 |
||
|
224
|
224
224B0508 SCREW-PAN-WP-CROS |
224B0508 |
from US $0.45 |
||
| replacement | |||||
|
224
|
224
224AA0508 SCREW-PAN-WP-CROS |
224AA0508 |
from US $0.94 |
||
|
11046
|
11046
11046-1858 BRACKET,STEERING GEAR |
11046-1858 |
US $9.05 |
||
| replacement | |||||
|
11046
|
11046
11056-2238 BRACKET,STEERING GEAR |
11056-2238 |
from US $10.73 |
||
|
11048
|
11048
11048-1245 BRACKET,REAR FRAME |
11048-1245 |
from US $16.65 |
||
|
32160
|
32160
32160-0004 FRAME-COMP,RR |
32160-0004 |
from US $261.72 |
||
|
39112
|
39112
39112-1068 RODEND-TIE,STEERING GEAR,LH |
39112-1068 |
from US $72.90 |
||
|
39112A
|
39112A
39112-1069 RODEND-TIE,STEERING GEAR,RH |
39112-1069 |
from US $72.90 |
||
|
39114
|
39114
39114-0009 SHAFT-COMP-STRG |
39114-0009 |
from US $216.17 |
||
|
39190
|
39190
39190-1006 SHAFT-ASSY-STEERING |
39190-1006 |
US $247.61 |
||
| replacement | |||||
|
39190
|
39190
39190-0005 SHAFT-ASSY-STEERING |
39190-0005 |
from US $163.30 |
||
|
39191
|
39191
39191-0008 New Genuine Part |
39191-0008 |
US $1,052.89 |
||
| replacement | |||||
|
39191
|
39191
39191-0021 GEAR-ASSY-STEERING |
39191-0021 |
from US $833.59 |
||
|
46079
|
46079
46079-1063 CONTACT,HORN SWITCH |
46079-1063 |
from US $60.34 |
||
|
49006
|
49006
49006-1255 BOOT,STEERING SHAFT,L |
49006-1255 |
from US $22.71 |
||
|
92002
|
92002
92002-1764 BOLT,FLANGED,10X80 |
92002-1764 |
from US $4.51 |
||
|
92002A
|
92002A
92002-1765 BOLT,FLANGED,10X145 |
92002-1765 |
from US $6.68 |
||
|
92015
|
92015
92015-1189 NUT,LOCK,10MM,BLACK |
92015-1189 |
from US $3.96 |
||
|
92015A
|
92015A
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
||
|
92015B
|
92015B
92015-1864 NUT |
92015-1864 |
from US $8.55 |
||
|
92022
|
92022
92022-1396 WASHER,10.5X26X2.3,BL |
92022-1396 |
from US $1.90 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92150
|
92150
92150-1731 BOLT,FLANGED,10X100 |
92150-1731 |
from US $11.25 |
||
|
92153
|
92153
92153-1269 BOLT,SOCKET,10X23 |
92153-1269 |
from US $1.24 |
||
|
92160
|
92160
92160-1084 DAMPER,STEERING GEAR |
92160-1084 |
from US $18.82 |
||
|
92161
|
92161
92161-1126 DAMPER |
92161-1126 |
US $8.15 |
||
| replacement | |||||
|
92161
|
92161
92161-0800 DAMPER |
92161-0800 |
US $9.95 |
||
|
92172
|
92172
92172-0004 SCREW,6X14 |
92172-0004 |
from US $1.27 |
||
|
92210
|
92210
92210-1139 NUT |
92210-1139 |
from US $2.53 |
||
