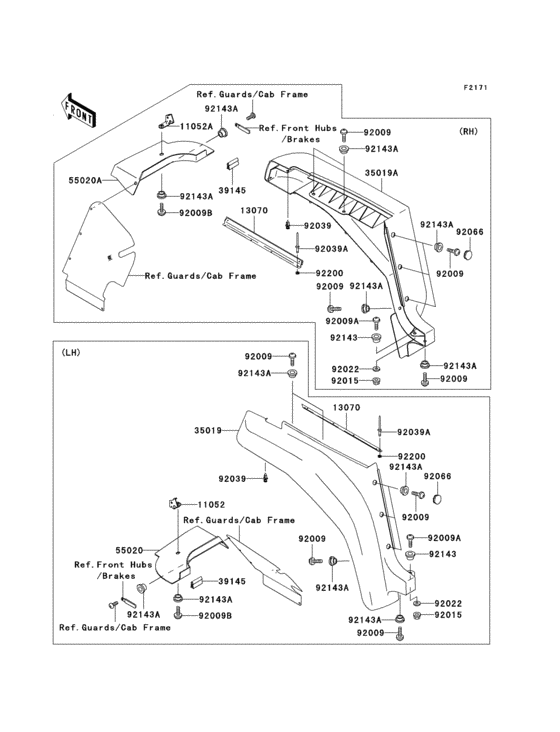

Front fender(s) Diagram Kawasaki KAF620 Mule 3010 4X4
- Model code
- KAF620E6F
- Engine Capacity
- 620
- Year
- 2006
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11052
|
11052
11052-1446 BRACKET,LH |
11052-1446 |
from US $4.51 |
||
|
11052A
|
11052A
11052-1447 BRACKET,RH |
11052-1447 |
from US $4.51 |
||
|
13070
|
13070
13070-1403 GUIDE |
13070-1403 |
US $4.79 |
||
|
35019
|
35019
35019-7508-6Z FLAP,FR,LH,F.BLACK |
35019-7508-6Z |
US $83.33 |
||
|
35019A
|
35019A
35019-7509-6Z FLAP,FR,RH,F.BLACK |
35019-7509-6Z |
US $83.33 |
||
|
39145
|
39145
39145-1136 TRIM-SEAL,L=45 |
39145-1136 |
US $3.09 |
||
|
55020
|
55020
55020-1775 GUARD,LWR,LH |
55020-1775 |
US $9.40 |
||
|
55020A
|
55020A
55020-1776 GUARD,LWR,RH |
55020-1776 |
US $9.40 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1256 SCREW,6X22,BLACK |
92009-1256 |
from US $1.74 |
||
|
92009B
|
92009B
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009B
|
92009B
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92039A
|
92039A
92039-1244 RIVET |
92039-1244 |
from US $1.71 |
||
|
92066
|
92066
92066-1231 PLUG |
92066-1231 |
from US $2.95 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92143A
|
92143A
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92200
|
92200
92200-7505 WASHER,3.5X6X1 |
92200-7505 |
US $1.10 |
||
