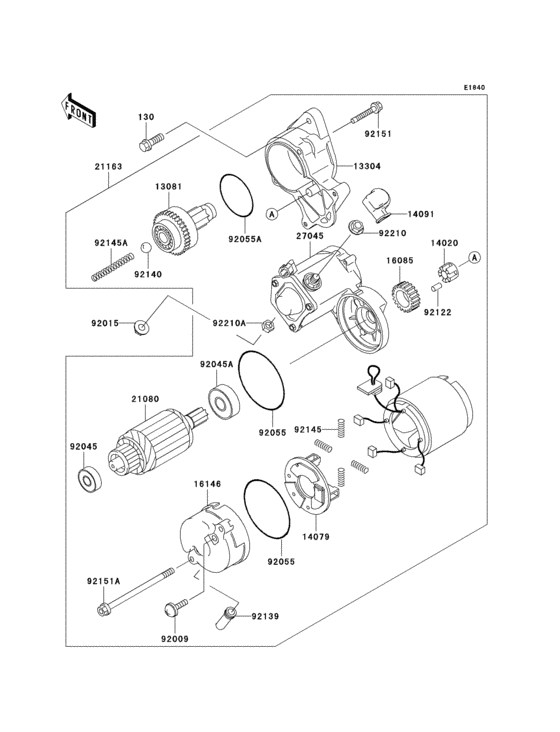

Starter motor Diagram Kawasaki KAF620 Mule 3010 4X4
- Model code
- KAF620E6F
- Engine Capacity
- 620
- Year
- 2006
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130P0830 BOLT-FLANGED |
130P0830 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130CA0830 BOLT-FLANGED |
130CA0830 |
from US $1.27 |
||
|
13081
|
13081
13081-2231 CLUTCH-ASSY |
13081-2231 |
from US $117.73 |
||
|
13304
|
13304
13304-2201 HOUSING-ASSY |
13304-2201 |
from US $205.29 |
||
|
14020
|
14020
14020-2112 RETAINER |
14020-2112 |
from US $7 |
||
|
14079
|
14079
14079-2064 HOLDER-ASSY |
14079-2064 |
from US $52.56 |
||
|
14091
|
14091
14091-2080 COVER |
14091-2080 |
from US $3.57 |
||
|
16085
|
16085
16085-2055 GEAR |
16085-2055 |
from US $25.20 |
||
|
16146
|
16146
16146-2228 COVER-ASSY |
16146-2228 |
from US $67.33 |
||
|
21080
|
21080
21080-2070 ARMATURE |
21080-2070 |
from US $298.60 |
||
|
21163
|
21163
21163-2124 STARTER-ELECTRIC,KIT |
21163-2124 |
US $860.44 |
||
| replacement | |||||
|
21163
|
21163
21163-6010 STARTER-ELECTRIC,KIT |
21163-6010 |
from US $772.93 |
||
|
27045
|
27045
27045-2018 SWITCH-ASSY |
27045-2018 |
from US $321.93 |
||
|
92009
|
92009
92009-2455 SCREW |
92009-2455 |
from US $1.40 |
||
|
92015
|
92015
92015-1143 NUT-8MM |
92015-1143 |
from US $0.99 |
||
|
92045
|
92045
92045-2257 BEARING-BALL |
92045-2257 |
from US $19.28 |
||
|
92045A
|
92045A
92045-2258 BEARING-BALL |
92045-2258 |
from US $24.88 |
||
|
92055
|
92055
92055-2199 RING-O |
92055-2199 |
from US $4.51 |
||
|
92055A
|
92055A
92055-2200 RING-O |
92055-2200 |
from US $2.65 |
||
|
92122
|
92122
92122-2057 ROLLER |
92122-2057 |
from US $1.24 |
||
|
92139
|
92139
92139-2051 BUSHING |
92139-2051 |
from US $4.05 |
||
|
92140
|
92140
92140-2061 BALL |
92140-2061 |
from US $1.24 |
||
|
92145
|
92145
92145-2096 SPRING |
92145-2096 |
from US $2.17 |
||
|
92145A
|
92145A
92145-2097 SPRING |
92145-2097 |
from US $2.17 |
||
|
92151
|
92151
92151-2167 BOLT |
92151-2167 |
from US $1.24 |
||
|
92151A
|
92151A
92151-2168 BOLT |
92151-2168 |
from US $7.32 |
||
|
92210
|
92210
92210-2084 NUT |
92210-2084 |
from US $3.11 |
||
|
92210A
|
92210A
92210-2085 NUT |
92210-2085 |
from US $3.11 |
||
