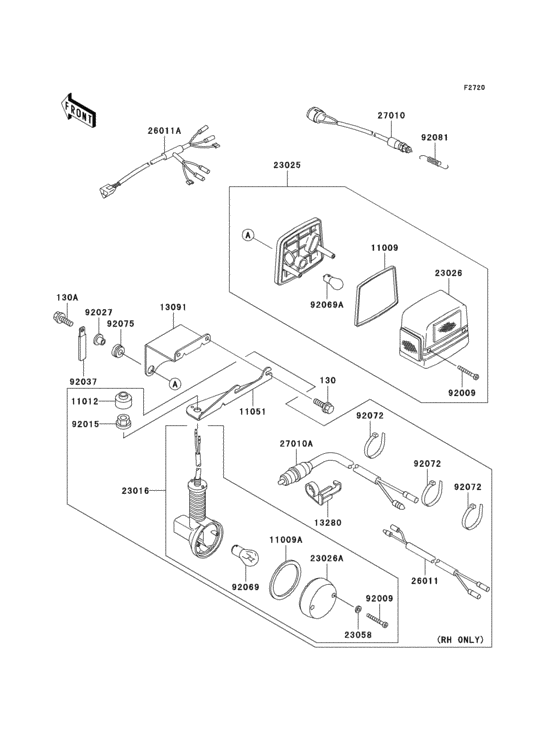

Taillight(s) Diagram Kawasaki KAF620 Mule 3010 4X4
- Model code
- KAF620E6F
- Engine Capacity
- 620
- Year
- 2006
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0616
BOLT-FLANGED,6X16
|
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
130A
|
130A
130J0620
BOLT-FLANGED
|
130J0620 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130A
|
130A
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
11009
|
11009
11009-1215 GASKET,TAIL LAMP LENS |
11009-1215 |
from US $6.34 |
||
|
11009A
|
11009A
11009-1373 GASKET,SIGNAL LAMP |
11009-1373 |
from US $4.57 |
||
|
11012
|
11012
11012-1367 CAP,SIGNAL LAMP |
11012-1367 |
from US $4.75 |
||
|
11051
|
11051
11051-1835 Bracket,reverse lamp |
11051-1835 |
US $12.12 |
||
|
13091
|
13091
13091-1743 HOLDER,TAIL LAMP |
13091-1743 |
from US $9.33 |
||
|
13280
|
13280
13280-1190 Holder,reverse switch |
13280-1190 |
US $6.22 |
||
|
23016
|
23016
23016-1182 Lamp-assy,reverse |
23016-1182 |
US $76.52 |
||
|
23025
|
23025
23025-1042 LAMP-TAIL |
23025-1042 |
from US $81.96 |
||
|
23026
|
23026
23026-1019 LENS,TAIL LAMP |
23026-1019 |
from US $39.66 |
||
|
23026A
|
23026A
23026-1227 Lens,reverse lamp |
23026-1227 |
US $9.49 |
||
|
23058
|
23058
23058002 WASHER-PLAIN,4MM |
23058002 |
from US $2.85 |
||
|
26011
|
26011
26011-1754 WIRE-LEAD,REVERSE LAM |
26011-1754 |
US $13.19 |
||
|
26011A
|
26011A
26011-1756 WIRE-LEAD |
26011-1756 |
from US $46.66 |
||
|
27010
|
27010
27010-1301 Switch,brake lamp |
27010-1301 |
US $34.99 |
||
| replacement | |||||
|
27010
|
27010
27010-1489 SWITCH,REAR BRAKE |
27010-1489 |
from US $32.31 |
||
|
27010A
|
27010A
27010-1419 Switch |
27010-1419 |
from US $18.35 |
||
|
92009
|
92009
92009-1069 SCREW,TAPPING,4X25 |
92009-1069 |
from US $2.53 |
||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MM |
92015-1428 |
from US $3.01 |
||
|
92027
|
92027
92027-194 COLLAR |
92027-194 |
from US $4.09 |
||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92069
|
92069
92069-085 BULB, 12V 3.4W |
92069-085 |
from US $3.01 |
||
|
92069A
|
92069A
92069-1011 BULB,12V20/5W |
92069-1011 |
from US $4.59 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92075
|
92075
92075-277 DAMPER RUBBER |
92075-277 |
from US $3.60 |
||
|
92081
|
92081
92081-1466 SPRING,HOOK RETURN |
92081-1466 |
from US $4.98 |
||
