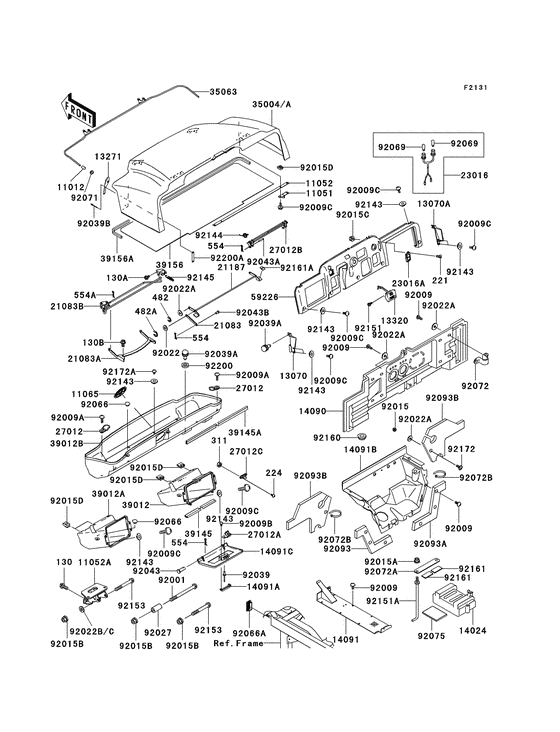

Frame fittings Diagram Kawasaki KAF620 Mule 3010 4X4
- Model code
- KAF620E7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1985 CAP |
11012-1985 |
from US $4.13 |
||
|
11051
|
11051
11051-1756
BRACKET
|
11051-1756 |
— | ||
|
11052
|
11052
11052-1369 BRACKET |
11052-1369 |
US $15.40 |
||
|
11052A
|
11052A
11052-1575 BRACKET,FRONT GEAR CABracket,front gear case; |
11052-1575 |
US $48.45 |
||
|
11065
|
11065
11065-1053-6Z CAP,F.BLACKCap,f.black; |
11065-1053-6Z |
US $9.83 |
||
|
13070
|
13070
13070-1367 GUIDE,LHGuide,lh; |
13070-1367 |
from US $17.27 |
||
|
13070A
|
13070A
13070-1368 GUIDE,RHGuide,rh; |
13070-1368 |
from US $17.27 |
||
|
13271
|
13271
13271-1800 PLATEPlate,rr; |
13271-1800 |
US $7.29 |
||
|
13320
|
13320
13320-1016 LEVER-ASSY |
13320-1016 |
from US $74.65 |
||
|
14024
|
14024
14024-1792 COVER,BATTERYCover,battery; |
14024-1792 |
from US $56.61 |
||
|
14090
|
14090
14090-1247 UNDER COVER,SEATCover,seat under; |
14090-1247 |
from US $151.96 |
||
|
14091
|
14091
14091-0118 COVER,FLOOR,CNTCover,floor,cnt; |
14091-0118 |
US $102.83 |
||
|
14091A
|
14091A
14091-1228-284 COVER,STORAGE GRIP,GRCover,storage grip,gray; |
14091-1228-284 |
US $9.40 |
||
| replacement | |||||
|
14091A
|
14091A
14091-1659-284 COVER,STORAGE GRIP,GRCover,storage grip,gray; |
14091-1659-284 |
US $9.59 |
||
|
14091B
|
14091B
14091-1378 COVER,FLOORCover,floor; |
14091-1378 |
US $110.74 |
||
|
14091C
|
14091C
14091-1399-284 COVER,CONTROL PANEL,GCover,control panel,gray; |
14091-1399-284 |
US $25.85 |
||
| replacement | |||||
|
14091C
|
14091C
14091-1660-284 COVER,CONTROL PANEL,GCover,control panel,gray; |
14091-1660-284 |
US $27.73 |
||
|
21083
|
21083
21083-1146 ARM |
21083-1146 |
US $1.62 |
||
|
21083A
|
21083A
21083-1163 ARM |
21083-1163 |
US $49.69 |
||
|
21083B
|
21083B
21083-1172 ARM |
21083-1172 |
US $103.32 |
||
|
21187
|
21187
21187-1085 ARM-ASSY |
21187-1085 |
US $36.05 |
||
|
23016
|
23016
23016-1188 LAMP-ASSY,INDICATORLamp-assy,indicator; |
23016-1188 |
from US $33.44 |
||
|
23016A
|
23016A
23016-1189 LAMP-ASSY |
23016-1189 |
US $43.94 |
||
|
27012
|
27012
27012-1577 HOOK |
27012-1577 |
from US $8.55 |
||
|
27012A
|
27012A
27012-1607 HOOK |
27012-1607 |
from US $4.98 |
||
|
27012B
|
27012B
27012-1608 HOOK |
27012-1608 |
US $61.33 |
||
|
27012C
|
27012C
27012-1612 HOOK |
27012-1612 |
from US $2.65 |
||
|
35004
|
35004
35004-0007-260 FENDER-FRONT,A.REDFender-front,a.red; |
35004-0007-260 |
US $156.23 |
||
|
35004A
|
35004A
35004-0007-286 FENDER-FRONT,W.GREENFender-front,w.green; |
35004-0007-286 |
US $156.23 |
||
|
35063
|
35063
35063-1203 STAY,FR FENDERStay,fr fender; |
35063-1203 |
US $62.61 |
||
|
39012
|
39012
39012-1061-284
CASE-STORAGE,RH,GRAY
Case-storage,rh,gray; |
39012-1061-284 |
— | ||
|
39012A
|
39012A
39012-1062-284 CASE-STORAGE,LH,GRAYCase-storage,lh,gray; |
39012-1062-284 |
US $40.39 |
||
|
39012B
|
39012B
39012-1066 CASE-STORAGE,CNTCase-storage,cnt; |
39012-1066 |
US $76.32 |
||
|
39145
|
39145
39145-1130 TRIM-SEAL,L=774Trim-seal,l=774; |
39145-1130 |
US $23.19 |
||
|
39145A
|
39145A
39145-1132 TRIM-SEAL,L=2805Trim-seal,l=2805; |
39145-1132 |
US $52.99 |
||
|
39156
|
39156
39156-0014 PAD,FRONT FENDERPad,front fender; |
39156-0014 |
US $171.29 |
||
|
39156A
|
39156A
39156-1685 PAD |
39156-1685 |
from US $12.12 |
||
|
59226
|
59226
59226-1060-284 PANEL-CONTROL,GRAYPanel-control,gray; |
59226-1060-284 |
US $183.53 |
||
|
92001
|
92001
92001-1603 BOLT,FLANGED,10X115Bolt,flanged,10x115; |
92001-1603 |
from US $6.22 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPINGScrew,tapping,6x16; |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1256 SCREW,6X22,BLACKScrew,6x22,black; |
92009-1256 |
from US $1.74 |
||
|
92009B
|
92009B
92009-1444 SCREWScrew,tapping,4x12; |
92009-1444 |
from US $2.38 |
||
|
92009C
|
92009C
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009C
|
92009C
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm,black; |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1406 NUT,8MMNut,flanged,8mm; |
92015-1406 |
from US $2.85 |
||
|
92015B
|
92015B
92015-1597 NUT,LOCK,10MMNut,lock,10mm; |
92015-1597 |
from US $7.04 |
||
|
92015C
|
92015C
92015-1603 NUTNut,lock,flanged,6mm; |
92015-1603 |
from US $2.85 |
||
|
92015D
|
92015D
92015-1678 NUTNut,clamp,6mm; |
92015-1678 |
from US $3.17 |
||
|
92022
|
92022
92022-1317 WASHER,8.5X20X1.6,BLAWasher,8.5x20x1.6,black; |
92022-1317 |
from US $2.69 |
||
|
92022A
|
92022A
92022-1346 WASHER,6.5X20X1.6.BLAWasher,6.5x20x1.6,black; |
92022-1346 |
from US $0.82 |
||
|
92022B
|
92022B
92022-1649 WASHER,10.2X20X0.5Washer,10.2x20x0.5; |
92022-1649 |
from US $2.69 |
||
|
92022C
|
92022C
92022-239 WASHER,PLAINWasher,10.5x20x1; |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1518 COLLAR,11X20X39Collar,11x20x39; |
92027-1518 |
from US $11.20 |
||
|
92039
|
92039
92039-1041 RIVET |
92039-1041 |
from US $2.53 |
||
|
92039A
|
92039A
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039A
|
92039A
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92039B
|
92039B
92039-1244 RIVET |
92039-1244 |
from US $1.71 |
||
|
92043
|
92043
92043-125 PINPin,6x14.5; |
92043-125 |
from US $3.96 |
||
|
92043A
|
92043A
92043-1625 PIN,6X39Pin,6x39; |
92043-1625 |
from US $1.40 |
||
|
92043B
|
92043B
92043-1626 PIN,6X9Pin,6x9; |
92043-1626 |
from US $1.24 |
||
|
92066
|
92066
92066-1485 PLUG |
92066-1485 |
from US $1.24 |
||
|
92066A
|
92066A
92066-7505 PLUG |
92066-7505 |
US $5.85 |
||
|
92069
|
92069
92069-1020 BULB,12V3W T-7Bulb,12v 3w,t7; |
92069-1020 |
from US $4.44 |
||
|
92071
|
92071
92071-019 GROMMET HARNESS 10MMGrommet,10mm; |
92071-019 |
from US $2.69 |
||
|
92072
|
92072
92072-1252 BAND |
92072-1252 |
from US $6.68 |
||
|
92072A
|
92072A
92072-1399 BAND,L=159Band,l=159; |
92072-1399 |
US $4.64 |
||
|
92072B
|
92072B
92072-3872 BAND,L=368.3Band,l=368.3; |
92072-3872 |
from US $1.90 |
||
|
92075
|
92075
92075-1076 DAMPER,BATTERY BASE |
92075-1076 |
from US $5.70 |
||
|
92093
|
92093
92093-1293 SEAL,FRONT FENDER,LHSeal,front fender,lh; |
92093-1293 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1294 SEAL,FRONT FENDER,RHSeal,front fender,rh; |
92093-1294 |
from US $6.22 |
||
|
92093B
|
92093B
92093-1295 SEAL,LOWER COVERSeal,lower cover; |
92093-1295 |
US $22.88 |
||
| replacement | |||||
|
92093B
|
92093B
92093-0181 SEAL,LOWER COVERSeal,lower cover; |
92093-0181 |
from US $12.76 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92144
|
92144
92144-1174 SPRING,SEAT HOOKSpring,seat hook; |
92144-1174 |
from US $3.89 |
||
|
92145
|
92145
92145-1335 SPRING |
92145-1335 |
from US $3.43 |
||
|
92151
|
92151
92151-1305 BOLT,5X12Bolt,flanged,5x12; |
92151-1305 |
from US $0.95 |
||
|
92151A
|
92151A
92151-1897 BOLT,BATTERYBolt,battery; |
92151-1897 |
from US $3.73 |
||
|
92153
|
92153
92153-1384 BOLT,FLANGED,10X75Bolt,flanged,10x75; |
92153-1384 |
from US $3.27 |
||
|
92160
|
92160
92160-1148 DAMPER |
92160-1148 |
from US $2.65 |
||
|
92161
|
92161
92161-0032 DAMPER |
92161-0032 |
US $4.90 |
||
|
92161A
|
92161A
92161-1197 DAMPER |
92161-1197 |
from US $2.95 |
||
|
92172
|
92172
92172-0002 SCREW,6X18Screw,6x18; |
92172-0002 |
from US $1.27 |
||
|
92172A
|
92172A
92172-0003 SCREW,TAPPING,6X12Screw,tapping,6x12; |
92172-0003 |
from US $1.27 |
||
|
92200
|
92200
92200-1567 WASHER,8.5X26X0.8Washer,8.5x26x0.8; |
92200-1567 |
from US $1.56 |
||
|
130
|
130
130BA1020 BOLT-FLANGED,10X20Bolt-flanged,10x20; |
130BA1020 |
from US $1.09 |
||
|
130A
|
130A
130BB0616 BOLT-FLANGED,6X16Bolt-flanged,6x16; |
130BB0616 |
from US $0.95 |
||
|
130B
|
130B
130BB0816 BOLT-FLANGEDBolt-flanged,8x16; |
130BB0816 |
from US $1.43 |
||
|
221
|
221
221AB0616 SCREW-CSK-CROSScrew-csk-cros,6x16; |
221AB0616 |
from US $1.09 |
||
|
224
|
224
224AB0412 SCREW-PAN-WP-CROS,4X1Screw-pan-wp-cros,4x12; |
224AB0412 |
from US $0.48 |
||
|
311
|
311
311C0400
NUT-HEX
|
311C0400 |
— | ||
| replacement | |||||
|
311
|
311
311AB0400 NUT-HEX |
311AB0400 |
from US $0.95 |
||
|
482
|
482
482L5000
CIRCLIP-TYPE-E
Circlip-type-e,5mm; |
482L5000 |
— | ||
| replacement | |||||
|
482
|
482
482EA5000 CIRCLIP-TYPE-ECirclip-type-e,5mm; |
482EA5000 |
from US $0.91 |
||
|
482A
|
482A
482L7000 CIRCLIP-TYPE-E |
482L7000 |
US $3.64 |
||
| replacement | |||||
|
482A
|
482A
482EA7000 CIRCLIP-TYPE-E |
482EA7000 |
from US $3.01 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
554A
|
554A
554A0800 PIN-SNAPPin-snap,8mm; |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554A
|
554A
554DA0800 PIN-SNAPPin-snap,8mm; |
554DA0800 |
from US $0.63 |
||
|
92200A
|
92200A
92200-1592 WASHER |
92200-1592 |
from US $1.56 |
||
