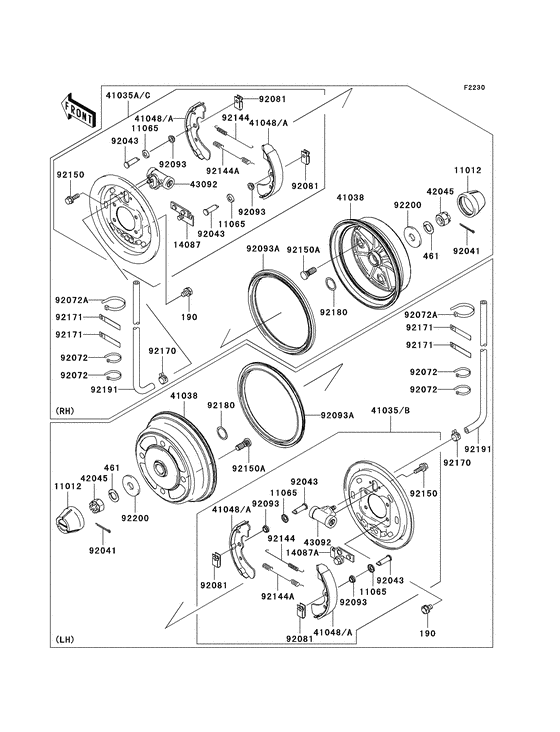

Front hubs/brakes Diagram Kawasaki KAF620 Mule 3010 4X4
- Model code
- KAF620E7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
190
|
190
190BA1016 BOLT-UPSET-WS,10X16Bolt-upset-ws,10x16; |
190BA1016 |
from US $1.40 |
||
|
461
|
461
461F1800 WASHER-SPRING,18MMWasher-spring,18mm; |
461F1800 |
US $2 |
||
| replacement | |||||
|
461
|
461
461DA1800 WASHER-SPRING,18MMWasher-spring,18mm; |
461DA1800 |
from US $1.09 |
||
|
11012
|
11012
11012-1969 CAP,WHEELCap,wheel; |
11012-1969 |
from US $5.33 |
||
|
11065
|
11065
11065-1175 CAP |
11065-1175 |
from US $3.11 |
||
|
14087
|
14087
14087-1001 RETAINER-ASSY,RHRetainer-assy,rh; |
14087-1001 |
from US $15.55 |
||
|
14087A
|
14087A
14087-1002 RETAINER-ASSY,LHRetainer-assy,lh; |
14087-1002 |
from US $15.55 |
||
|
41035B
|
41035B
41035-7502 PANEL-ASSY-BRAKE,FR,LPanel-assy-brake,fr,lh; |
41035-7502 |
from US $321.12 |
||
|
41035C
|
41035C
41035-7504 PANEL-ASSY-BRAKE,FR,RPanel-assy-brake,fr,rh; |
41035-7504 |
from US $321.12 |
||
|
41038
|
41038
41038-0034 DRUM,FRONT BRAKEDrum,front brake; |
41038-0034 |
from US $219.28 |
||
|
41048A
|
41048A
41048-7501 SHOE-BRAKE |
41048-7501 |
from US $24.75 |
||
|
42045
|
42045
42045018 NUT CASTLE,18MMNut,castle,18mm; |
42045018 |
from US $7.76 |
||
|
43092
|
43092
43092-1054 CYLINDER,FT BRAKE PNLCylinder,front brake panel; |
43092-1054 |
from US $103.97 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35Cotter,4.0x35; |
92041-1053 |
from US $2.33 |
||
|
92043
|
92043
92043-1636 PIN |
92043-1636 |
from US $2.49 |
||
|
92072
|
92072
92072-030 BAND,SHORTBand,l=123; |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-031 BAND,MIDDLEBand,l=149; |
92072-031 |
from US $3.01 |
||
|
92081
|
92081
92081-1904 SPRING,SHOE CLAMPSpring,shoe clamp; |
92081-1904 |
from US $4.90 |
||
|
92093
|
92093
92093-1532 SEAL |
92093-1532 |
from US $5.28 |
||
|
92093A
|
92093A
92093-1543 SEAL,BS184.8X13.5ZSSeal,bs184.8x13.5zs; |
92093-1543 |
from US $68.40 |
||
|
92144
|
92144
92144-1300 SPRING,BRAKE,RHSpring,brake; |
92144-1300 |
from US $5.18 |
||
|
92144A
|
92144A
92144-1301 SPRING,BRAKESpring,brake; |
92144-1301 |
from US $5.18 |
||
|
92150
|
92150
92150-1166 BOLT,FLANGED,6X12Bolt,flanged,6x12; |
92150-1166 |
from US $2.65 |
||
|
92150A
|
92150A
92150-1366 BOLT |
92150-1366 |
from US $4.90 |
||
|
92170
|
92170
92170-2042 CLAMP |
92170-2042 |
from US $1.77 |
||
|
92171
|
92171
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92180
|
92180
92180-1353 SHIM,25.2X32.5X0.6Shim,25.2x32.5x0.6; |
92180-1353 |
from US $2.87 |
||
|
92191
|
92191
92191-1615 TUBE,4.7X9.5X1480Tube,4.7x9.5x1480; |
92191-1615 |
US $9.59 |
||
|
92200
|
92200
92200-1474 WASHER,18.5X52X4.5Washer,18.5x52x4.5; |
92200-1474 |
from US $4.67 |
||
