	Description	OEM Part #	Price
130	130 130D0614 BOLT-FLANGED,6X14	130D0614	—
	replacements
130	130 130AA0614 BOLT-FLANGED	130AA0614	from US $0.82
130	130 130BA0614 BOLT-FLANGED,6X14	130BA0614	from US $0.79
130A	130A 130H0635 BOLT,FLANGED,6X35	130H0635	—
	replacement
130A	130A 130BA0635 BOLT,FLANGED,6X35	130BA0635	from US $1.11
130B	130B 130H0820 BOLT-FLANGED,8X20	130H0820	from US $1.74
	replacement
130B	130B 130BA0820 BOLT-FLANGED,8X20	130BA0820	from US $1.43
130C	130C 130T0620 BOLT-FLANGED,6X20	130T0620	US $1.19
	replacement
130C	130C 130CA0620 BOLT-FLANGED,6X20	130CA0620	from US $1.11
132	132 132J0614 BOLT-FLANGED-SMALL,6X	132J0614	—
	replacement
132	132 132BB0614 BOLT-FLANGED-SMALL,6X	132BB0614	from US $1.43
411	411 411B1000 WASHER-PLAIN,10MM	411B1000	from US $1.26
	replacement
411	411 411AA1000 WASHER-PLAIN,10MM	411AA1000	from US $0.72
601	601 601B6007 BEARING-BALL	601B6007	from US $22.61
670	670 670D1510 0 RING,10MM	670D1510	from US $2.85
11060	11060 11060-1966 GASKET	11060-1966	from US $1.56
13107	13107 13107-2235 SHAFT	13107-2235	from US $5.28
13151	13151 13151-1093 SWITCH-COMP	13151-1093	from US $34.68
13236	13236 13236-1372 LEVER-COMP	13236-1372	from US $44.64
13271	13271 13271-1604 PLATE	13271-1604	from US $29.09
14025	14025 14025-1813 COVER	14025-1813	from US $18.98
14044	14044 14044-0003 HOLDER-CABLE	14044-0003	from US $8.24
14044A	14044A 14044-1098 HOLDER-CABLE	14044-1098	from US $38.10
14055	14055 14055-1112 CASE-COMP-GEAR,RH	14055-1112	from US $216.17
	replacement
14055	14055 14057-0012 CASE-COMP-GEAR,RH	14057-0012	from US $311.81
14055A	14055A 14055-1158 CASE-GEAR,LH	14055-1158	from US $216.17
14069	14069 14069-1051 BREATHER	14069-1051	from US $7.44
16115	16115 16115-1060 CAP-OIL FILLER	16115-1060	from US $8.24
42036	42036 42036-2060 SLEEVE-GOVERNOR	42036-2060	from US $2.79
49110	49110 49110-1104 GOVERNOR-ASSY	49110-1104	from US $75.89
	replacement
49110	49110 49110-0012 GOVERNOR-ASSY	49110-0012	from US $105.42
92005	92005 92005-1127 FITTING,BREATHER	92005-1127	from US $11.88
92015	92015 92015-1432 NUT,8MM	92015-1432	from US $3.80
92027	92027 92027-1568 COLLAR	92027-1568	from US $1.40
92037	92037 92037-1505 CLAMP,TUBE	92037-1505	from US $3.17
92043	92043 92043-1263 PIN,6.2X8X14	92043-1263	from US $0.75
92045	92045 92045-1142 BEARING-BALL,TMB304CC	92045-1142	from US $32.04
92045A	92045A 92045-1162 BEARING-BALL	92045-1162	from US $40.28
92045B	92045B 92045-1207 BEARING-BALL,62/28	92045-1207	from US $19.30
92045C	92045C 92045-1213 BEARING-BALL	92045-1213	from US $44.78
92045D	92045D 92045-1285 BEARING-BALL	92045-1285	from US $20.75
92049	92049 92049-1297 SEAL-OIL,TC28X47X7	92049-1297	from US $8.24
92049A	92049A 92049-2097 SEAL-OIL	92049-2097	from US $1.56
92051	92051 92051-005 OIL SEAL,TB13225.5	92051-005	from US $6.57
92055	92055 92055-1120 RING-0,55MM	92055-1120	from US $3.17
92055A	92055A 92055-2185 RING-O,20MM	92055-2185	from US $1.25
92065	92065 92065-058 GASKET	92065-058	from US $3.37
92067	92067 92067-001 PLUG, OIL DRAIN	92067-001	from US $3.73
92087	92087 92087-1058 BUSHING-METER GEAR	92087-1058	from US $4.82
92143	92143 92143-1642 COLLAR,8.5X15X9	92143-1642	from US $3.33
92150	92150 92150-1900 BOLT	92150-1900	from US $3.89
92190	92190 92190-3807 TUBE	92190-3807	US $4.72
	replacements
92190	92190 92190-3874 TUBE	92190-3874	from US $7.72
92190	92190 92192-1643 TUBE	92192-1643	from US $7.32
92200	92200 92200-2036 WASHER,6.2X20X0.5	92200-2036	from US $1.09

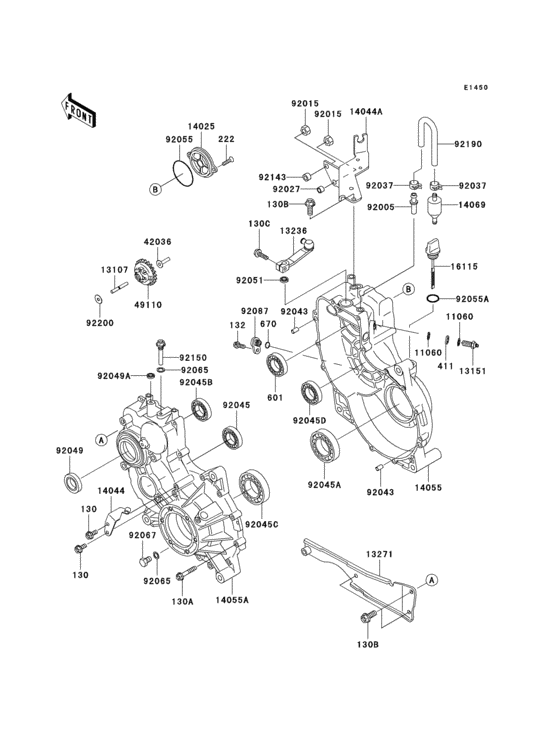

Gear box(1/2) Diagram Kawasaki KAF620 Mule 3000 Aztec Red (467) Europe 14060621-799403

Gear box(1/2) Diagram Kawasaki KAF620 Mule 3000 Aztec Red (467) Europe 14060621-799403
