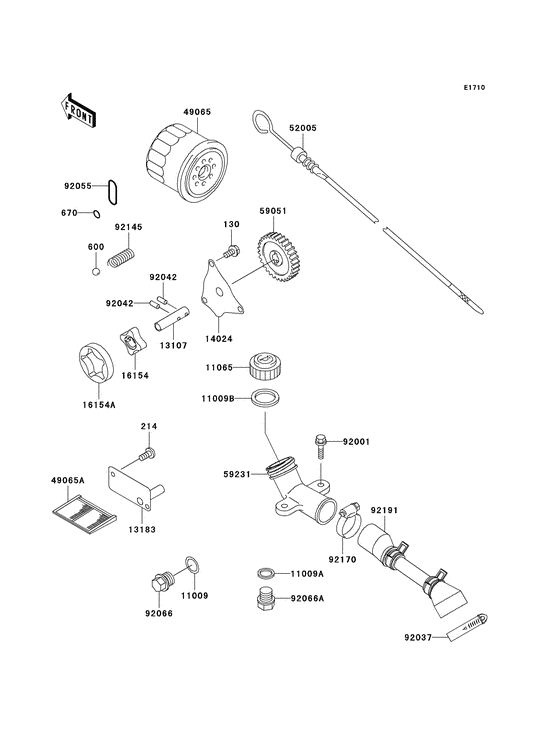

Oil pump/oil filter Diagram Kawasaki KAF620 Mule 3010 4X4 Hardwoods Green HD
- Model code
- KAF620H8F
- Engine Capacity
- 620
- Year
- 2008
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0612 BOLT,FLANGE,6X12Bolt-flanged,6x12; |
130AA0612 |
from US $1.05 |
||
|
214
|
214
214AA0512 SCREW-PAN+-Screw-pan+-,5x12; |
214AA0512 |
from US $0.78 |
||
|
600
|
600
600A1300 BALL, STEEL, 13/32INBall-steel,13/32"; |
600A1300 |
from US $0.95 |
||
|
670
|
670
670B2011 O RINGO ring,11mm; |
670B2011 |
from US $1.75 |
||
|
11009
|
11009
11009-1467 GASKET,16.2X22X1Gasket,16.2x22x1; |
11009-1467 |
from US $2.79 |
||
|
11009A
|
11009A
11009-2175 GASKET |
11009-2175 |
from US $1.58 |
||
|
11009B
|
11009B
11009-2346 GASKETGasket,oil gauge; |
11009-2346 |
from US $1.71 |
||
|
11065
|
11065
11065-1167 CAP |
11065-1167 |
from US $4.98 |
||
| replacement | |||||
|
11065
|
11065
11065-1487 CAP |
11065-1487 |
US $9.42 |
||
|
13107
|
13107
13107-2099 SHAFT,OIL PUMP |
13107-2099 |
US $11.59 |
||
| replacement | |||||
|
13107
|
13107
13107-2296 SHAFT,OIL PUMP |
13107-2296 |
from US $8.24 |
||
|
13183
|
13183
13183-2419 PLATE |
13183-2419 |
from US $11.51 |
||
|
14024
|
14024
14024-2113 COVER |
14024-2113 |
from US $3.57 |
||
|
16154
|
16154
16154-2053 ROTOR-PUMPRotor-pump,in; |
16154-2053 |
from US $7 |
||
|
16154A
|
16154A
16154-2054 ROTOR-PUMPRotor-pump,out; |
16154-2054 |
from US $7.62 |
||
|
49065
|
49065
49065-2071 FILTER-OIL |
49065-2071 |
from US $14.62 |
||
|
49065A
|
49065A
49065-2072 FILTER-OIL(SCRN) |
49065-2072 |
from US $4.98 |
||
|
52005
|
52005
52005-2149 GAUGE |
52005-2149 |
from US $19.76 |
||
|
59051
|
59051
59051-2114 GEAR-SPUR |
59051-2114 |
from US $4.82 |
||
|
59231
|
59231
59231-1106 FILLER |
59231-1106 |
US $13.37 |
||
| replacement | |||||
|
59231
|
59231
59231-0756 FILLER |
59231-0756 |
US $13.74 |
||
|
92001
|
92001
92001-1460 BOLT,6X20Bolt,wp,6x20; |
92001-1460 |
from US $2.53 |
||
|
92037
|
92037
92037-506 CLAMP,HOSE |
92037-506 |
from US $6.22 |
||
|
92042
|
92042
92042-014 PIN GEAR CHANGE DRUMPin,dowel,4x15.8; |
92042-014 |
from US $0.75 |
||
|
92055
|
92055
92055-2086 O RING |
92055-2086 |
from US $1.62 |
||
|
92066
|
92066
92066-2251 PLUG, 16X11.5Plug,16x11.5; |
92066-2251 |
from US $2.49 |
||
|
92066A
|
92066A
92066-2253 PLUG,14X12Plug,14x12; |
92066-2253 |
from US $2.38 |
||
|
92145
|
92145
92145-2132 SPRING |
92145-2132 |
from US $0.62 |
||
| replacement | |||||
|
92145
|
92145
92145-1809 Spring,oil Relief |
92145-1809 |
US $1.29 |
||
|
92170
|
92170
92170-1036 CLAMP,COOLING HOSE |
92170-1036 |
from US $10.01 |
||
|
92191
|
92191
92191-1579 TUBE |
92191-1579 |
US $41.33 |
||
